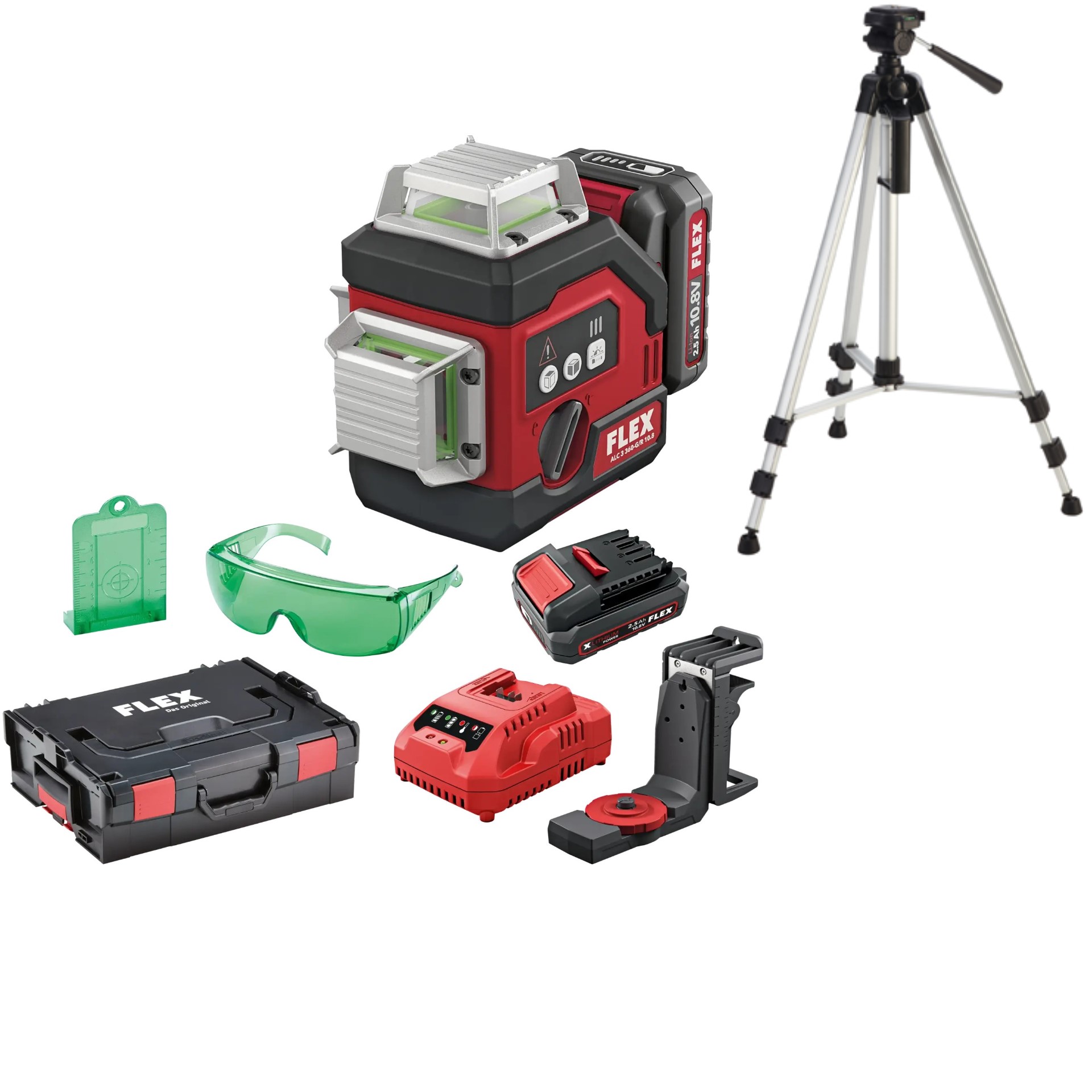

Flex-tools 532862 ALC 3/360-G/R 10.8 Set 360° cross line laser with receiver mode 12V 2.5Ah Li-Ion in L-Boxx + LKS 75-170 Tripod

Flex-tools 500739 ALC 3/360-G/R 12V Set 360° cross line laser with receiver mode 12V 2.5Ah Li-Ion in L-Boxx + LKS 65-170 Tripod

Features

• With one horizontal and two vertical 360° laser lines, separately switchable
• The lines are at a 90° angle to each other and allow quick alignment and assembly
• Plumb function, the vertical intersections automatically form the plumb point
• Specially anti-reflective lenses ensure clean and extremely precise laser lines.
• The green line image is brighter in presentation and still clearly visible even in poor lighting conditions
• Extended range of 100 meters, with receiver up to 120 meters working range
• Self-levelling
• Optical warning signal when the self-levelling level is exceeded
• Disable self-leveling function so that the laser beam can also be adjusted manually
• Brightness control in 3 modes, selection based on ambient brightness or battery status. Mode 1 is also the receiver mode
• Dust and splash water protection
• 1/4" and 5/8" thread for tripod
• Vertical and horizontal levelling makes it ideal for interior design: for straightening doors, windows, building and living areas, laying glossy floor tiles etc. and for various applications on construction sites
• FLEX battery system: can be used with all FLEX 12 V battery packs. Supplied without battery, charger

Technical data

• Number of horizontal lines 1 piece
• Number of vertical lines 2 pieces
• Line of sight horizontal 360 °
• Line of sight vertical 360 °
• Laser class 2
• Max working range 100 m
• Max working range with receiver 120 m
• Accuracy ± 0.3 mm
• Self-levelling range 4 °
• Operating time 12 h
• Temperature range -10 - +40 °C
• Protection class IP54
• Power supply System battery
• Battery voltage 12 V
• Battery capacity 2.5 / 4.0 Ah
• Dimensions LxWxH 152 x 88 x 130 mm
• Weight without battery pack 0.8 kg

Scope of delivery

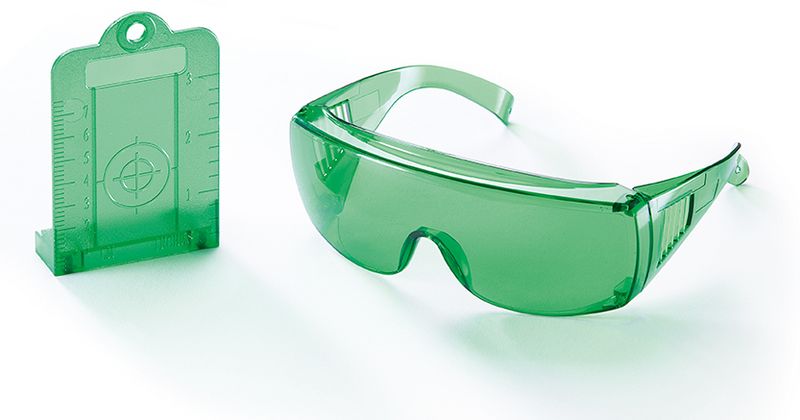

• 1x Laser target board and sight glasses, green (500763)

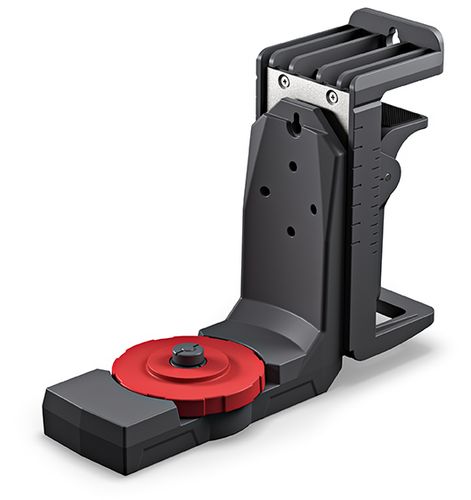

• 1x Universal laser holder (500747)
• 1x L-BOXX® transport case (414085)
• 1x Li-Ion rechargeable battery pack 12 V (532290)
• 1x Rapid charger 12V (532286)
• 1x LKS 65-170 F 1/4 Tripod
