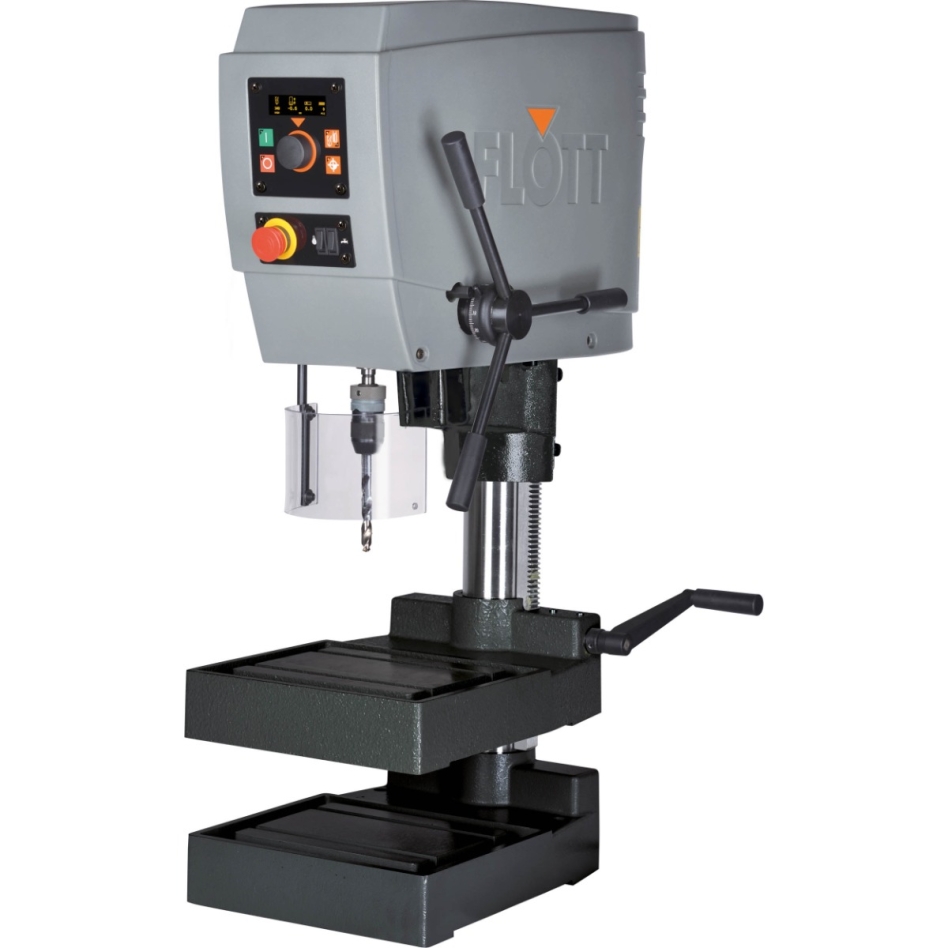

Flott 220105 TB 20 Plus - table drill with thread cutting device, intermediate table, LED lighting and digital OLED display

Flott 220105 TB 20 Plus - table drill with thread cutting device, intermediate table, LED lighting and digital OLED display

Description

• Continuous/normal drilling capacity: 20/23 mm (in E335/ST60)
• Spindle MK 2
• Tap capacity: Max M14
• Drilling depth: 100 mm
• Projection: 240 mm
• Speed and drilling depth display: digital
• Spindle speed: 40 - 4,000 rpm
• Spindle-table distance: 155-415 mm
• Spindle-base distance: 155-550 mm
• Usable table/foot space and column diameter: 340 x 280 mm,
• ø 82 mm
• Drilling depth stop: quickly adjustable stop ring (form-fitting)
• Table height adjustment: pivotable via rack and column
• Number of T-slots/distance (table): 2/125 mm, dimension 13/26 mm
• Three-phase motor, 50 Hz, 1.5 kW
• Supply three-phase current 400 V (with frequency converter)
• Weight: 170 kg
• Machine dimensions (WxDxH): 355 x 705 x 1065 mm
• Machine dimensions (with packaging): 560 x 940 x 1612 mm

scope of delivery

• Thread cutter
• Undervoltage trip coil and thermal overload protection
• Emergency stop button
• Connection cable (1.5 m) with CEE plug
• LED lighting in the head
• Spindle stop
• Drill protection with electr. validation
• Table height adjustment via rack
