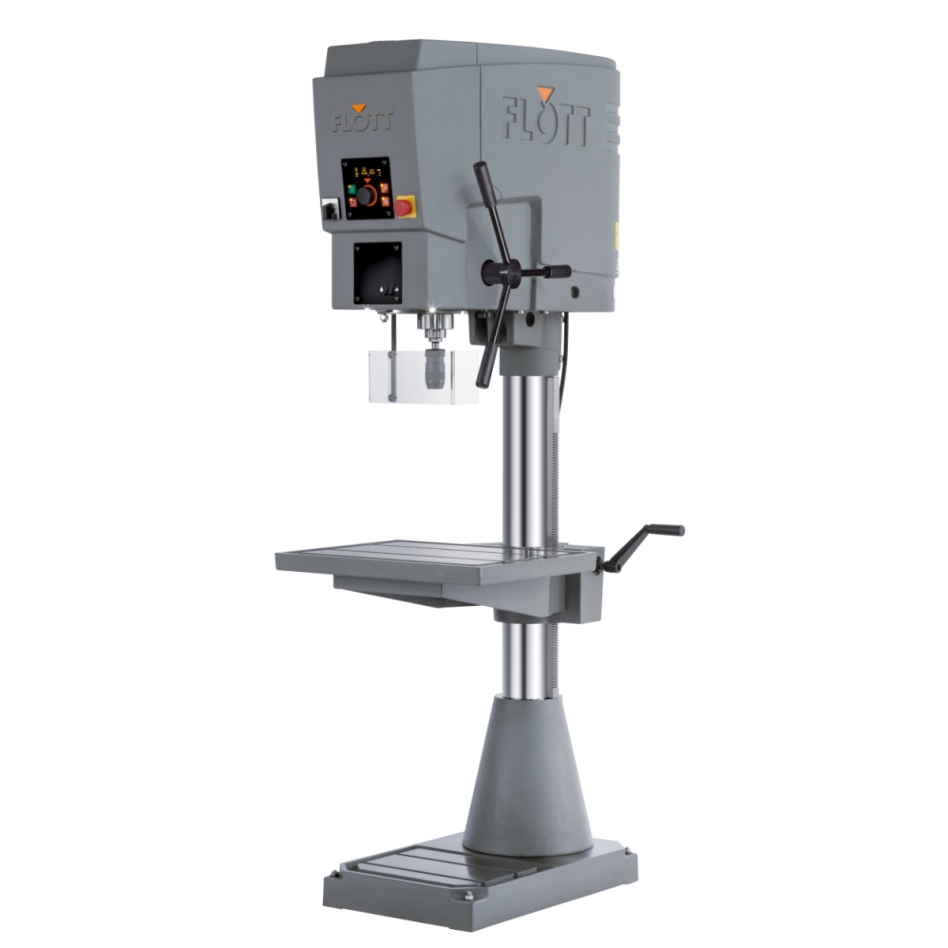

Flott 230506 SB 30 MV Plus - Column drill with thread cutting device and mechanical feed (for drilling)

Flott 230506 SB 30 MV Plus - Column drill with thread cutting device and mechanical feed (for drilling)

Description

• Drilling capacity: 25/30 mm [in E335/ST60],
• Tap capacity: M20x2.5 Max
• measured torque: 70 Nm
• Spindle stroke: 125 mm
• Spindle: MK III
• Projection: 300 mm
• Column diameter: 125 mm
• Usable table surface: 590x450 mm
• Speed and drilling depth display: digital
• Drilling depth stop: with fine adjustment
• Table height adjustment: with rack
• Three-phase motor: 3.0 kW
• Speed series R2: 0-1,600 rpm
• Feed rate for drilling (mechanical): 0.10/0.16/0.25 mm/rev.

Scope of delivery

• Thread cutting device
• Drill cross with push button for program on/off
• LED lighting in the head
• Undervoltage trip coil and thermal overload protection
• Drill protection with electrical protection
• spindle stop
• emergency stop button
• 3-year warranty on one-shift operation
• Basic panel: Clear control panel with a central metal knob
• OLED (Organic Light Emitting Diode) display.
• Understandable input menu
• Operating mode selection between drilling/tapping
• Counting function of drilling strokes
