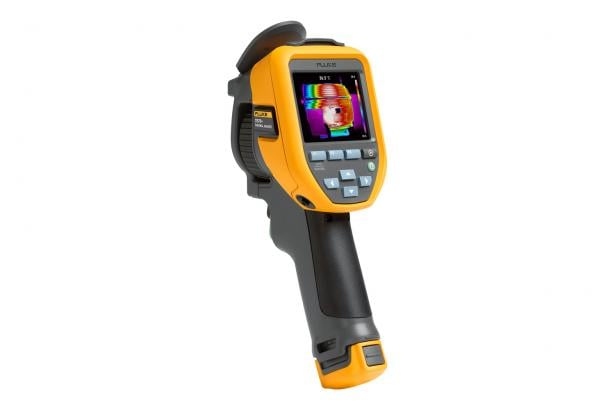

Fluke 5160037 FLK-TIS75+ Thermal imaging camera 9HZ

Fluke 5160037 FLK-TIS75+ Thermal Imager 9HZ

The Fluke TiS75+ is an easy-to-use thermal imaging camera that can be used to achieve preventive maintenance. Requiring high-quality images and feature-rich cameras, this camera offers technicians and contractors an option for troubleshooting, periodic inspections and preventive maintenance. Spoken text, text notes and IR-PhotoNotes eliminate the need for pen and paper. Asset Tagging allows scanning a QR code to automatically organize and archive thermal images with Fluke Connect. The Fluke TiS75+ has a dew point calculation feature; once the dew point is calculated, the camera will display the dew point color alarm.

Special Features.

• Resolution 384 x 288 (110,592 pixels).
• Spatial resolution 1.91 mrad
• Temperature range of -20 °C to 550 °C
• Manual focus and 1-meter focus marker
• 3.5-inch VGA LCD touch screen
• Water and dust resistant (IP54)
• Drop resistant up to 2 meters

Technical data

• Sensor resolution (horizontal): 384 pixels
• Sensor resolution (vertical): 288 pixels
• Screen resolution (horizontal): 640 pixels
• Screen resolution (vertical): 480 pixels
• Display diagonal: 3.5 inch
• Touch screen: yes
• Thermal image: yes
• Visual image: yes
• Heat/visual image in one image: yes
• Video recording: yes
• Images per second: 9 bps
• Thermal sensitivity at 30 °C: 0.04 °C
• Temperature measurement range: -20 °C to +50 °C
• Relative measurement accuracy: ±2 %.
• Wavelength range: 8 - 14 µm
• Scanning area (FOV) horizontal: 42°
• Scanning area (FOV) vertical: 30°
• Spatial resolution (IFOV): 1.91 mrad
• Autofocus: no
• Automatic orientation: no
• Focus stacking: no
• Image averaging: no
• Digital zoom: 0
• Enlarge image size: no
• Memory function: yes
• Internal memory: yes
• SD card slot: no
• MiniSD card slot: no
• MicroSD card slot: yes
• CompactFlash I slot: no
• CompactFlash II slot: no
• USB connection: yes
• Bluetooth interface: yes
• Wi-Fi: yes
• Analog video output: no
• HDMI connection: no
• Ethernet: no
• Gigabit Ethernet: no
• RS-232 interface: no
• RS-485 interface: no
• FireWire (IEEE1394): no
• Cooled detector: no
• Ambient temperature: -10 °C to +50 °C
• Laser: yes
• Built-in lamp: no
• Tripod mount: no
• Interchangeable lenses: no
• Digital alarm: no
• Moisture sensor: no
• Laser rangefinder: no
• Battery/battery power: yes
• External power supply required: no
• AC input voltage (50 Hz): 100 - 240 V
• AC input voltage (60 Hz): 100 - 240 V
• DC input voltage: 6 - 15 V
• Power consumption: 8.7 W
• Max. battery operating time: 3.5 hours
• Protection rating: IP54
• Weight: 0.89 kg

Scope of delivery

• Fluke TiS75+ thermal imager 9Hz
• AC mains power supply (including universal AC adapters)
• Two pocket battery charger for smart batteries
• 2 rugged lithium ion smart batteries
• USB cable
• 4GB micro SD card
• Rugged carrying case
• Soft carry case with adjustable carrying strap
• Free downloadable: desktop software and user manual
