Fluke 5581569 SMFT1000 kit installation tester for PV installations with 1 year Premium Care

Fluke 5581569 SMFT1000 kit installation tester for PV installations with 1 year Premium Care

Special Features.

• When you bundle the Fluke SMFT-1000-KIT solar instrument kit with Fluke Premium Care, you ensure that you're getting the most out of your money. The SMFT-1000 is an all-in-one testing solution for PV professionals providing installation, commissioning and maintenance services for systems operating at up to 1000 V DC. The Fluke Premium Care bundle gives you additional coverage beyond your standard warranty for things like coverage for accidental damage, expedited calibration and annual instrument inspections.
• Test that PV systems are performing optimally and operating safely with the Fluke SMFT-1000 Multi-Function Tester with I-V Curve Tracer. Designed for PV professionals providing installation, commissioning and maintenance services for systems operating at up to 1000 V DC, the SMFT-1000 provides a complete PV test solution that complies with IEC/EN 62446-1. Fluke's TruTest™ software (optional) allows easy import, organization and analysis of solar panel installation and commissioning test data.
• Critical test functions for initial and periodic inspection of PV systems
• Full range of safety tests - IEC/EN 62446-1 Category 1:
• Resistance of protective conductor (RLO).
• Voltage on open circuit, including polarity (VOC)
• Short circuit current (ISC) or operating current with terminal adapter
• Insulation resistance (RINS)
• ROI and system performance tests (I-V curve test with solar module array) - IEC 62446-1 Category 2:
• I-V curve tracing of solar energy
• Optional Computer Software - download, upload, review, analyze and print test results
• Communication with IRR2-BT (solar radiation, inclination, temperature)
• Communication with computer (optional)

Advantages

• Visual inspection
• Measurement of protective conductor resistance (RLO) with a test current ≥200 mA
• Polarity check with automatic display of voltage polarity with acoustic/visual warning for wrong polarity
• No-load voltage (VOC) measurement at the PV module/string up to 1000 V DC
• Short-circuit current measurement (ISC) at the PV module/string with up to 20 A DC or operating current with terminal adapter up to 100 A DC
• Insulation resistance measurement (RINS) with a test voltage of 50 V, 100 V, 250 V, 500 V and 1000 V Blocking diode measurement (VBD)
• Overvoltage protection device testing
• AC/DC voltage measurement with 4 mm test terminals - Functional test by voltage measurement up to 700 AC V TRMS and 1000 V DC.
• AC/DC current measurement - functional test by current measurement with a current clamp adapter up to 100 A AC/DC
• Bypass diode measurement of the module if covered or in darkness

Technical Data

• Type FLK-SMFT-1000/KIT
• Measured value memory Yes
• With display Yes
• Interface design USB
• Power supply type Battery
• Continuity measurement resistance Min: 0.2, Max: 2000
• Continuity measurement current Min: 200, Max: 400
• Measurement line resistance compensation Manual
• No-load voltage measurement (Uoc) Min: 5, Max: 1000
• Short circuit current measurement (lsc) Min: 0.2, Max: 20
• Insulation resistance measurement range Min: 0.2, Max: 999
• Insulation resistance measurement Min: 50, Max: 1000
• Polarity test Yes
• Ground fault measurement Yes
• Module database Yes
• Parallel line resistance measurement Rp No
• Internal serial resistance measurement Rs No
• Maximum Power Point (MPP) measurement Yes
• Peak Power Measurement (Ppk) No
• Conversion to STC Yes
• Conversion to NOCT Yes
• Current-voltage curve registration Yes
• Power measurement AC/DC
• With remote control No
• Degree of protection (IP) IP40
• Measuring circuit category CAT III
• Max. voltage measurement circuit category 1000 Volt
• Length 250 Millimeter
• Width 125 Millimeter
• Height 100 Millimeter
• Weight 1.4 Kilograms
• Weight including battery pack 1.4 Kilograms
• Temperature measurement Yes
• Fill factor calculation Yes
• Inverter efficiency measurement Yes
• External voltage detection Yes
• Solar radiation measurement Yes
• Method for I-V curve tracing Other

Scope of delivery

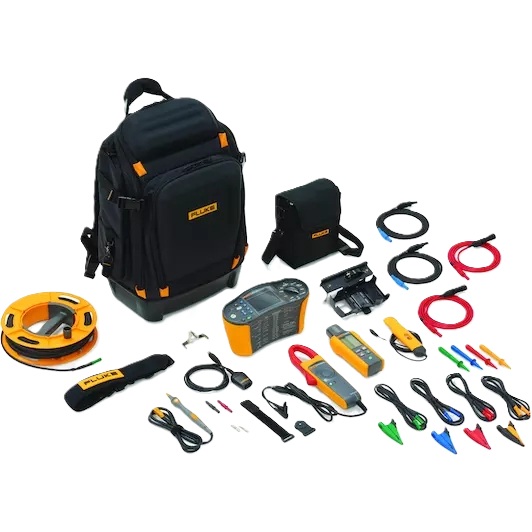

• Fluke SMFT-1000-BP professional tool backpack
• SMFT-1000 Multifunctional PV analyzer
• 1-year Fluke Premium Care maintenance contract
• Carrying strap
• Fuse kit
• Adapter cable IRDA optical-to-USB
• Zeroing function
• IRR2-BT wireless solar radiation meter pro
• 80PR-IRR outdoor temperature probe
• Mounting bracket for solar module
• Carrying case
• i100 AC/DC current clamp 100 A
• TPAK magnet set
• TP1000 probe with remote test key
• TL1000 test lead kit
• TL1000-MC4 test lead kit
• TL1000/30M test leads on reel
• Coupling kit
• (6) AA batteries
