Fluke 5600022 PVA-1500T2 Solmetric PV Analyser I-V Curve Tracer

Fluke 5600022 PVA-1500T2 Solmetric PV Analyser I-V Curve Tracer

Special Features

• The Fluke PVA 1500T2 High-Efficiency Analyzer IV Curve tracer provides comprehensive data analysis and reporting features with an intuitive interface and a portable design that makes it easy to use in both the field and laboratory, and empowers technicians to make informed decisions, maximizing the efficiency and reliability of solar installations.
• Built with durability and reliability in mind and with several advanced features - including enhanced precision measurement capabilities - this curvetracer is an essential tool for solar professionals looking to optimize the performance and lifetime of individual PV systems.

Benefits

• Measures and displays I-V curves up to 1500 V and 10 A, even on high-efficiency modules (Fluke PVA-1500HE2)
• Advanced built-in PV model with wireless radiation, temperature and tilt detection provides instant monitoring of PV performance
• Sweep-to-sweep delay of 9 seconds to measure 3.5 MW in < 1 hour
• Uninterrupted measurements even in hot environments
• Wireless interfaces for faster installation, safer working environment and freedom of movement during PV troubleshooting
• Automates data management, analysis and reporting
• Available for free download: PVA application and data analysis tool

Technical Data

• Type PVA-1500T2
• With display Yes
• Interface design Wi-Fi
• Power supply type Battery
• Continuity measurement current Min: 0, Max: 2
• Short circuit current measurement (lsc) Min: 0, Max: 10
• Polarity test Yes
• Ground fault measurement No
• Parallel line resistance measurement Rp No
• Internal serial resistance measurement Rs No
• Maximum Power Point (MPP) measurement Yes
• Peak Power Measurement (Ppk) No
• Conversion to STC Yes
• Current-voltage curve registration Yes
• Power measurement DC
• Measurement circuit category CAT III
• Max voltage measurement circuit category 1500 volts
• Length 628.7 Millimeter
• Width 317.5 Millimeter
• Height 601.7 Millimeter
• Weight 13.61 Kilograms
• Temperature measurement Yes
• Fill factor calculation Yes
• Solar radiation measurement Yes
• Method for I-V curve tracing Capacitive

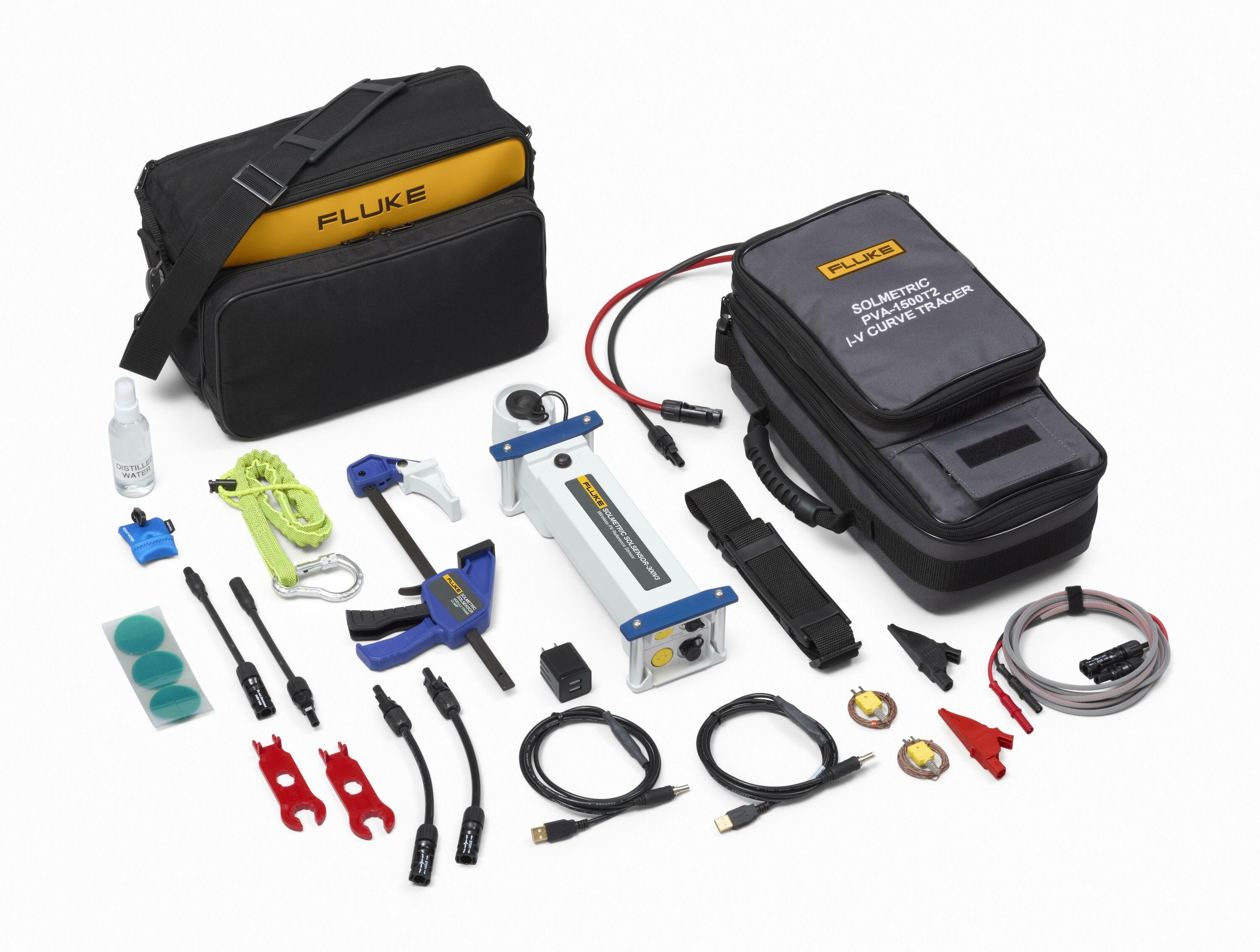

Scope of delivery

• PVA-1500 V device
• Carrying case
• Soft case for the PV analyzer
• SolSensor™
• Module frame clamp
• SolSensor tool cord
• Measurement leads with alligator clips
• MC4 disconnect tool (MC4 to alligator clip)
• Chargers
• 2x K-type thermocouples
• Adhesive discs for thermocouple attachment
• Cleaning materials for sensor
• Manual
