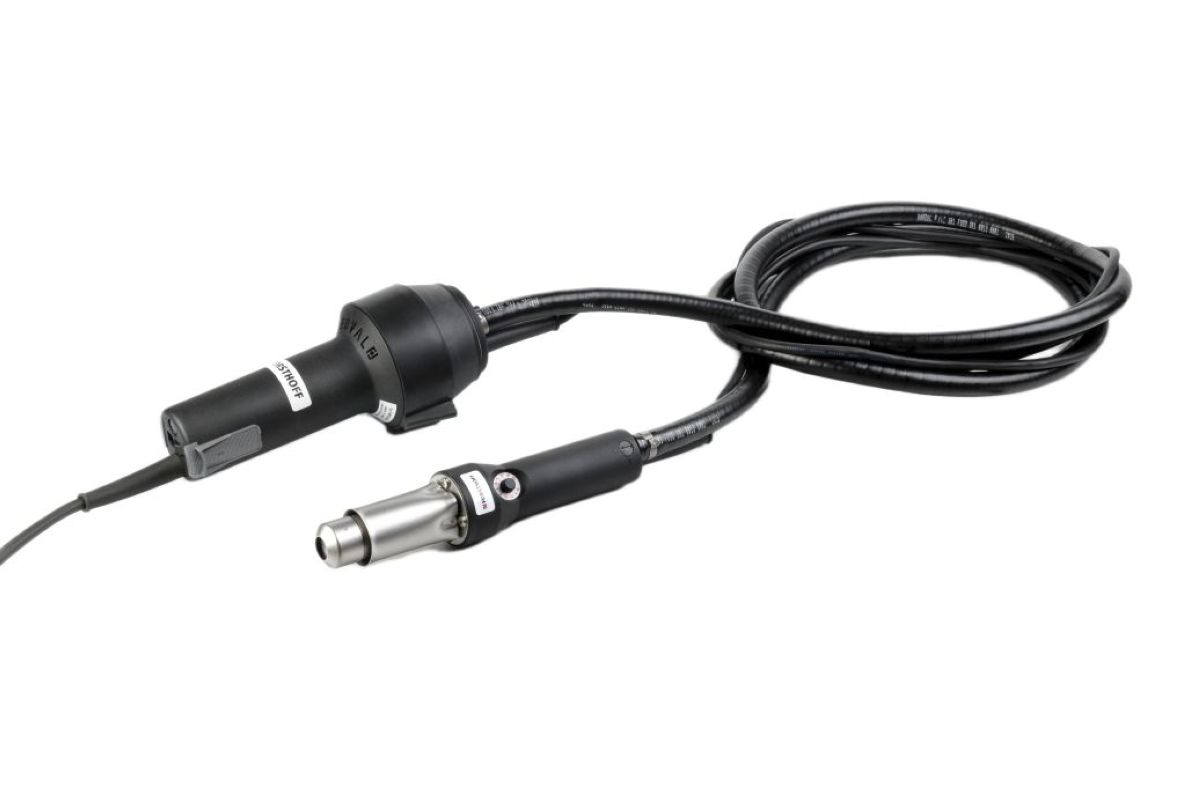

Forsthoff 102422-OV Welding unit MINI-elektronic 1500 W 230 V with Oval-HB with nozzle wire M10 3 m hose and cable

Forsthoff 102422-OV Welding machine MINI-elektronic 1500 W 230 V with Oval-HB with nozzle wire M10 3 m hose and cable

Special features

• The MINI-Electronic protective insulated welding gun is ideal for plastic fabricators and container builders thanks to its light weight and ease of use.
• The heating power of 1500 W 230 V is infinitely adjustable from 20 to 700 °C and is electronically kept constant.
• In addition, the required air volume can be controlled individually with an additional rotary knob.
• The unit requires an external air supply, such as a side channel compressor, blower or compressor
• We also offer our portable Oval-HB hand blower, which is convenient enough to provide the required air on construction sites and for outdoor use.
• The MINI electronic welding gun can be equipped with numerous accessories for welding plastic sheets, pipes, parts and containers.
• If desired, the welding gun can also be equipped with an M 10 or M 14 threaded attachment.
• This attachment allows the use of screw-on fast welding nozzles, which are popular in plastic and container construction due to their high stability.
• On construction sites and when used outdoors, the additional hand blower provides the required amount of air.

Technical data.

• Voltage: 230V
• Power: max. 1600W
• Frequency: 50/60 Hz
• Temperature: 20-700 °C
• Dimensions: Ø 250 x 55 mm, Handle Ø 40 mm
• Weight: 0.395 kg incl. 3m hose and cable
• Air consumption: 80 250 liter/min
