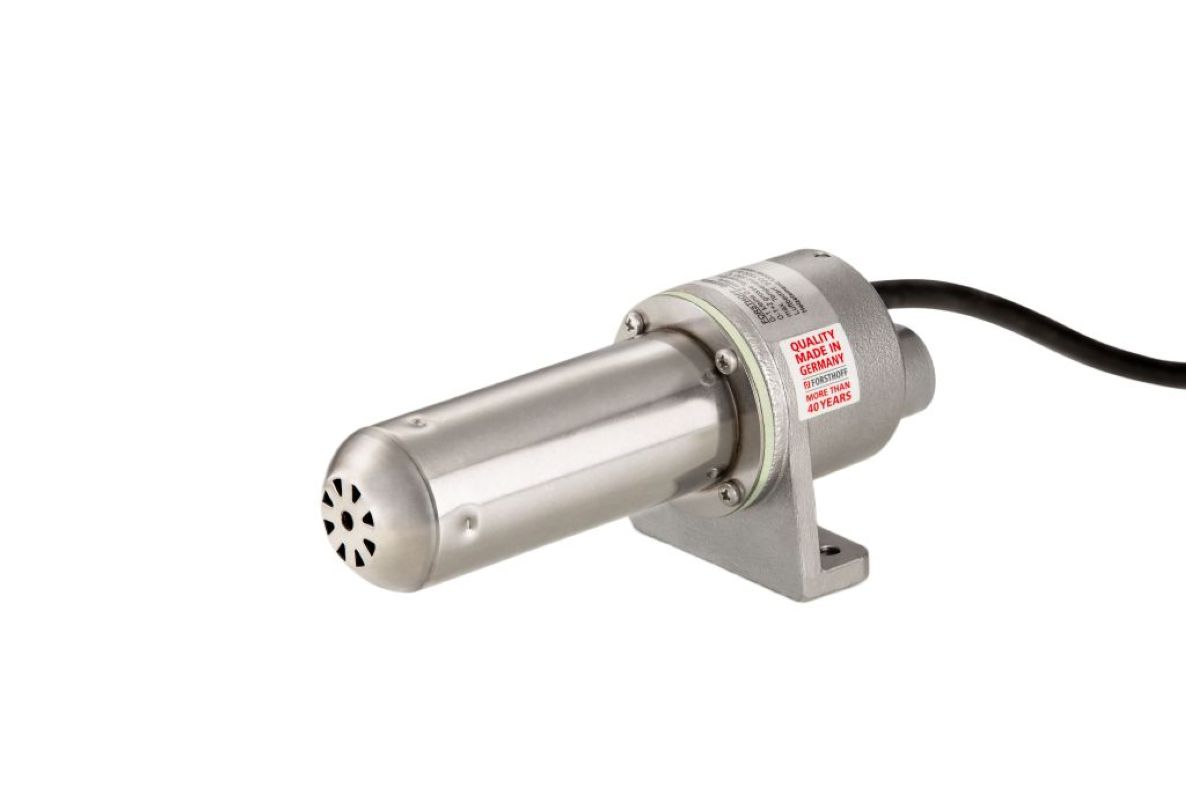

Forsthoff 1060-3106 Hot air unit Type 3000 3600W 230V with heating element 3x1200 W (3106)

Forsthoff 1060-3106 Hot air unit Type 3000 3600W 230V with heating element 3x1200 W (3106)

Special features

• The hot air unit Type 3000 offers numerous different applications
• Among other things, the hot air heaters are used on conveyor belts and in machines.
• Here the generated hot air is used for activating, shrinking, drying and forming
• The fan heaters can be switched between 3 levels and can be equipped with different heating capacities in 230V or 400V 3 AC up to a maximum of 650 °C.
• The Type 3000 requires an external air supply with a fan, side channel compressor or compressor
• The required air volume is 500 to 1500 liters/min, depending on the nozzle
• The air flow can be concentrated and adjusted with different plug-in nozzles to achieve individual solutions.

Technical data

• Voltage: 230V
• Power: 3600W
• Frequency: 50-60Hz
• Air flow 500-1500 l/min
• Max. Air pressure: 1 bar
• Max. Temperature: 700°C
• Weight: 1.1 kg
