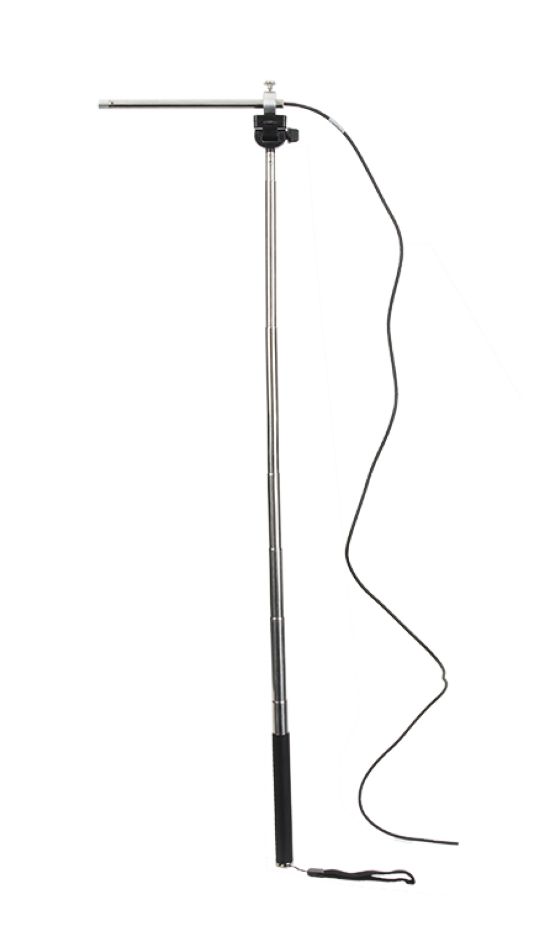

GANN 31013200 LG-25 BL Air Velocity Electrode
The GANN LG-25 BL is a precision anemometer (air velocity sensor) with which even very low air flows can be reliably measured. The product (part number 31013200) is part of the Blue Product Series.
Special features.
- High precision - Highly accurate measurement of air velocities even at very low air flows
- Telescopic handle - Makes it easy to measure hard-to-reach places, such as high vents or deep ducts
- Tripod mount - The measurement sensor can be mounted on a standard camera tripod for long-term monitoring of airflows
- Bidirectional measurement - Measures air velocity in both directions (positive and negative)
- Low detection threshold - Detects airflows as low as 0.05 m/s
- Versatile applications - Suitable for room monitoring, HVAC, blower by tests, laminar airflow monitoring (clean-room technology), etc.
Technical Data
- Measuring principle: Thermal current sensor
- Cable length: 1.8 m
- Measurement handle: Telescopic (expandable)
- Tripod mount: Yes (standard camera tripod)
- Measuring medium: Clean air/nitrogen
- Lower detection threshold: 0.05 m/s
- Measurement direction: Bidirectional
- Measuring range air velocity: -2.5 to 2.5 m/s
More Information
| EAN | 6151818793715 |
|---|---|
| Order Number | 31013200 |
| Manufacturer | GANN |
