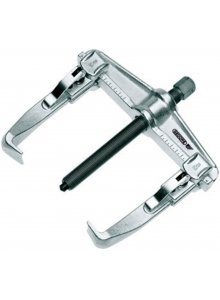

Gedore 1215140 1.06/1A-E Universal quick clamping device 2-arm 130x100 mm

Gedore 1215140 1.06/1A-E Universal quick clamping device 2-arm 130x100 mm

Features

• BTried and tested model for the safe and fast removal of discs, wheels, ball bearings, etc.
• Robust, forged design
• Adjustment scale for evenly setting the extraction hooks. Enables centric and force-optimised extraction even with very high pull-off forces
• Byconvertible hooks can be used as external and internal pullers
• Interchangeable hooks for various clamping depths are available as accessories
• The new quick-release skewers make quick and uncomplicated adjustments child''s play.
• The spindle can be replaced by a hydraulic spindle if desired (see table)

Ownshelves

• Crochet foot width (c) 22 mm
• Hook foot depth (d) 12 mm
• Hook foot thickness at the edge (e) 3.0 mm
• Scale division X
• Key size hexagon 17 mm
• Mandrel depth 100 mm
• Span -max- with external draw (a a1) 130 mm
• Span -max- for internal drawing (a2) 180 mm
• Span -min- for internal drawing (a2) 70 mm
• Speg size (thread pitch x length)M 14x1.5 x 140
• Ttensile force (in tonnes max.) 3,0 t
