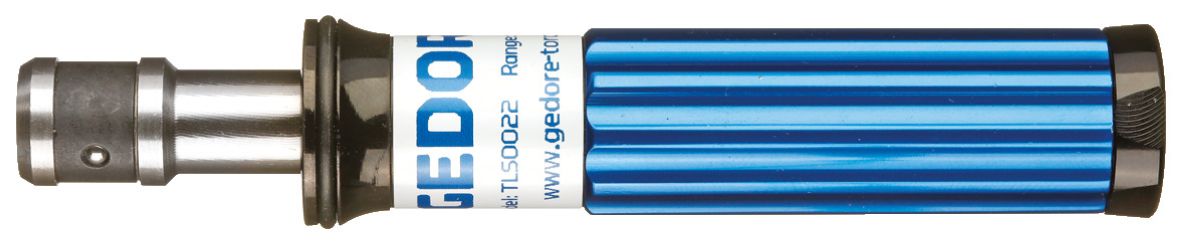

Gedore 1471481 TLS 0022 MICRO FH Torque screwdriver FS 1/4" 4.4-22 cNm

Gedore 1471481 TLS 0022 MICRO FH Torque screwdriver FS 1/4" 4.4-22 cNm

Special features.

• Application: controlled screw tightening in the range 4 - 22 cNm
• Series assembly with constant tightening value
• Electronics industry, precision mechanics and industrial production
• Design: Fixed adjustable torque wrench - without scale
• With 1/4" hexagonal socket for 1/4" bits according to DIN 3126 - C 6.3
• With adapter also suitable for 1/4" socket wrenches according to DIN 3124
• Accuracy: +/- 6% tolerance of the set scale value
• Construction in accordance with DIN EN ISO 6789, traceable to national standards
• Precision ball mechanism for controlled clockwise and counterclockwise tightening
• Precision mechanism glides on noticeably when the set value is reached
• Automatic return to initial position
• Light construction through anodized aluminum handle
• Can be supplied ex factory with RAHSOL DREMOTEC fixed value or set manually using suitable testing device
• If fixed factory setting is required, please specify Nm value when ordering (price on request)
• Scope of delivery: Torque screwdriver, 1/4" - 1/4" adapter (No. 757-20)
• Test certificate in accordance with DIN EN ISO 6789
• Test certificate according to DIN EN ISO 6789-2:2017
• Delivery in sturdy cardboard packaging

Technical data

• Contents (number of pieces): 1
• Overall length: 76 mm
• Overall height: 20 mm
• Net weight: 0.127 kg
• 1000 V insulated: No
• VDE certified: No
• Target groups: Automotive, Electronics, Industry, Precision mechanics, Military, Service
• Drive holder, hexagon: 6.3 mm
• Drive input, hexagon: 1/4 Inch
• Scope: Assembly, Production, Quality control, Series assembly, Maintenance and repair
• Drive type/drive: Bit holder
• Precision +/-: +/- 6 %.
• Tightening direction: Left and right
• Fixed setting: Yes
• Test certificate: DIN EN ISO 6789-2:2017
• Torque range (min/max): 4-22 cNm
• Torque (max.): 22 cNm
• Torque (min.): 4 cNm
• Torque range (min./max.): 4-22 cNm
• EPA/ESD version: No
• Stopping mechanism: slipping clutch
• T-handle available: No
