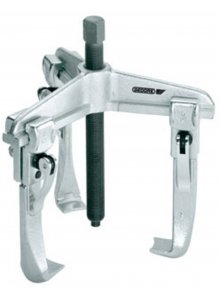

Gedore 1554751 1.07/3-E Universal quick clamping device 3-arm 250x200 mm

Gedore 1554751 1.07/3-E Universal quick clamping device 3-arm 250x200 mm

Features

• SQuick-release hooks for easy and uncomplicated setting and adjustment
• By turning the hooks it can be used as an external and internal puller
• The spindle can be replaced by a hydraulic spindle if desired (see table)

Ownshelves

• Crochet foot width (c) 36 mm
• Hook foot depth (d) 28 mm
• Lace foot thickness at the edge (e) 6.5 mm
• Hydraulic spindle 1.06/HSP2
• Key size hexagon 27 mm
• Mandrel depth 200 mm
• Span -max- with external draw (a a1) 250 mm
• Span -max- for internal drawing (a2) 400 mm
• Span -min- for internal drawing (a2) 100 mm
• Spindle size (thread pitch x length) G 3/4 x 280
• Towing capacity (tonnes max.) 7.5 t
