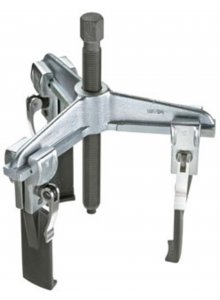

Gedore 2016052 1.07/S2-E Universal quick clamping device 3-arm, with slim hooks

Gedore 2016052 1.07/S2-E Universal quick clamping device 3-arm, with slim hooks

Features

• Zhonor narrow forged hooks
• Particularly suitable for hard-to-reach places
• Quick and uncomplicated setting and adjustment thanks to quick-clamping hooks

Ownshelves

• Crochet foot width (c) 40.0 mm
• Hook foot depth (d) 7.0 mm
• Hook foot thickness at the edge (e) 5.0 mm
• Hydraulic spindle 1.06/HSP1
• Key size hexagon 22 mm
• Mandrel depth 150 mm
• Span -max- with external draw (a a1) 160 mm
• Spindle size (thread pitch x length) G 1/2 x 210
• Towing capacity (tonnes max.) 5.0 t
