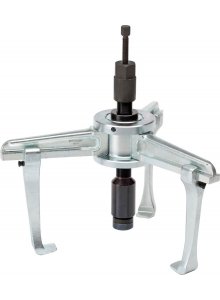

Gedore 2546582 1.07/4A1-B-HSP3 Universal Puller, hydraulic, 3-arm, all steel hook with hook brake

Gedore 2546582 1.07/4A1-B-HSP3 Universal Puller, hydraulic, 3-arm, all steel hook with hook brake

Features

• AnaSimilar to our standard model 1.06, this is a tractor for all industrial sectors, especially for electric motor construction.
• This puller is suitable for pulling heavy, multi-stage V-belts, flywheels, gears, etc.
• The crossbars are mounted on the hub at an angle of 120 degrees.secured with pins
• One-piece forged hooks
• With hook brake - protection against unintentional slipping of the hooks. The hook can be moved on the crossbeam at the press of a button
• By turning the hooks it can be used as an external and internal puller
• Without the adapter sleeve the tractor can also be used with the hydraulic press kit 1.50.
• Deze trekker is op aanvraag ook leverbaar met meerdere haken en kan tot 6 armen worden uitgebreid
• Het drukstuk kan worden vervangen door een punt en zo nodig worden verlengd.
• De kleine drukspindel is beveiligd met een uitdraaibeveiliging tegen onopzettelijk uitdraaien.
• Also available with standard spindle - model 1.07/4-B

Ownshelves

• Crochet foot width (c) 36 mm
• Hook foot depth (d) 28 mm
• Lace foot thickness at the edge (e) 6.5 mm
• Hydraulic spindle1.06/HSP3
• Mandrel depth 140 mm
• Span -max- with external draw (a a1) 580 mm
• Span -min- with external draw (a a1) 150 mm
• Span -max- for internal drawing (a2) 640 mm
• Span -min- for internal drawing (a2) 270 mm
• Tractive force Max. N.m 25 N.m
• Towing force (in tonnes max.) 10.0 t
