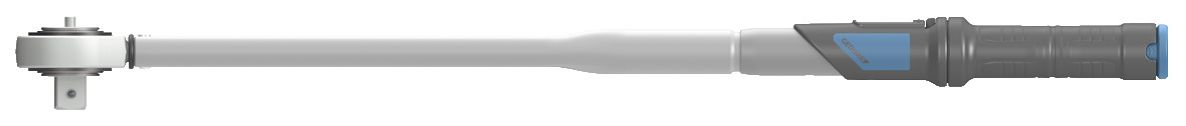

Gedore 2641267 DMK 400 DREMASTER Torque wrench K 3/4" 80-400 Nm

Gedore 2641267 DMK 400 DREMASTER Torque wrench K 3/4" 80-400 Nm

Special features.

• Application: controlled screw tightening in the range 80 - 400 Nm / 60 - 300 lbf-ft
• Adjustable, audible and tactile switch-off, robust torque wrench with integrated ratchet
• Design: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard.
• For controlled clockwise and anticlockwise tightening
• Models DMK: 1/2" mushroom head-square with push-button release and ball lock. From modelNo. DMK 400 with 3/4 pitch square and pin locking
• Robust, painted tubular steel construction, with galvanized ratchet and high-quality plastic parts
• Ergonomically shaped plastic handle with calibration aid
• Switchover between main scale Nm and secondary scale lbf-ft for avoidance of reading errors when setting the desired torque
• With micrometer scale for Nm main scale for setting scale intermediate values
• Automatic switch-off with audible and visual signal
• Ergonomic torque adjustment system with instruction symbol
• Possibility of quick adjustment using a pin wrench, not included in delivery
• Secure adjustment system

Technical data

• Content (number of pieces): 1
• Overall length: 715 mm
• Overall width: 67 mm
• Overall height: 51 mm
• Net weight: 2.488 kg
• 1000 V insulated: No
• VDE certified: No
• Material: tubular steel construction; high-quality plastic parts
• Head width 1: 62.5 mm
• Target groups: Automotive, Industry, Construction and commercial vehicles, Consumer, Energy, Mechanical engineering, Workshop, Service, Agriculture, Oil and gas, Utilities
• Head height 1: 38 mm
• Drive Square: 3/4 Inch
• Drive Square: 20 mm
• Scope: Assembly, Production, Maintenance and repair
• Retraction angle: 10 Grad
• Number of teeth: 36
• Torque (max.): 400 Nm
• Drive type/drive: Pierce square
• Torque (min.): 80 Nm
• Distance housing - square center: 33.5 mm
• Precision +/-: +/- 3 %.
• Tightening direction: left and right
• Fixed setting: No
• Test certificate: DIN EN ISO 6789-2:2017
• Nonius Nm: 1 Nm
• Torque range (min./max.): 80-400 Nm
• Cut-off mechanism: Short path release
• Scale: 10 Nm
• Tightening torque (max.): 300 lbf-ft
• Tightening torque (min.): 60 lbf-ft
• Tightening range (min/max): 60-300 lbf-ft
• Scale: 10 lbf-ft
• Storage/Content: Carton
• Calibration length: 608.9 mm
