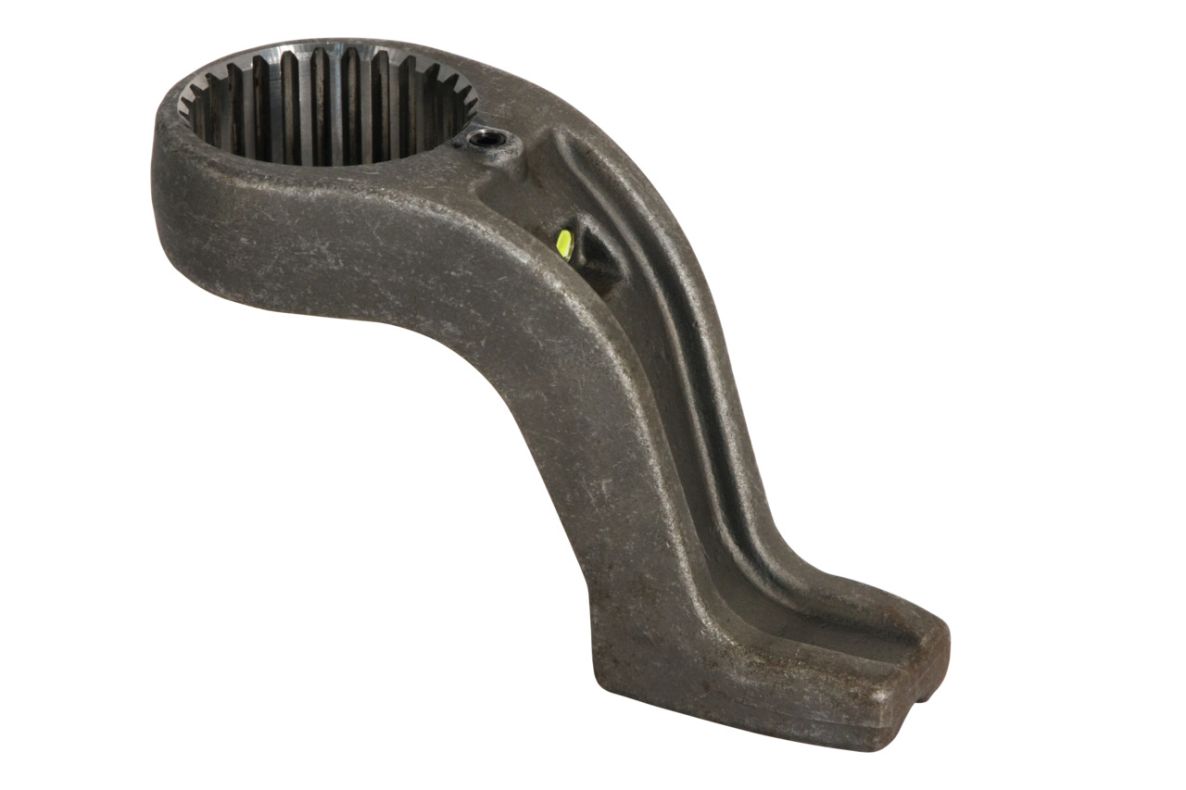

Gedore 2653176 RZ-DVV40 Z-shaped torque arm for DVV-40

Gedore 2653176 RZ-DVV40 Reaction arm Z-shaped for DVV-40

Special features

• Curved design
• Chrome-Vanadium steel

Technical data

• Content (number of pieces): 1
• Overall length: 230 mm
• Net weight: 1.5 kg
• 1000 V insulated: No
• VDE certified: No
• Material: Forged light metal/steel
• Outside diameter: 85 mm
• Reaction arm design: Z-shaped, curved
• Distance drive square - start of reaction arm (min.): 68 mm
• Distance of drive square - end of torque arm (max): 133 mm
• Height of flange ring: 30 mm
• Flange ring radius: 39.5 mm
• Height of support: 80 mm
• Press frame external width: 41 mm
