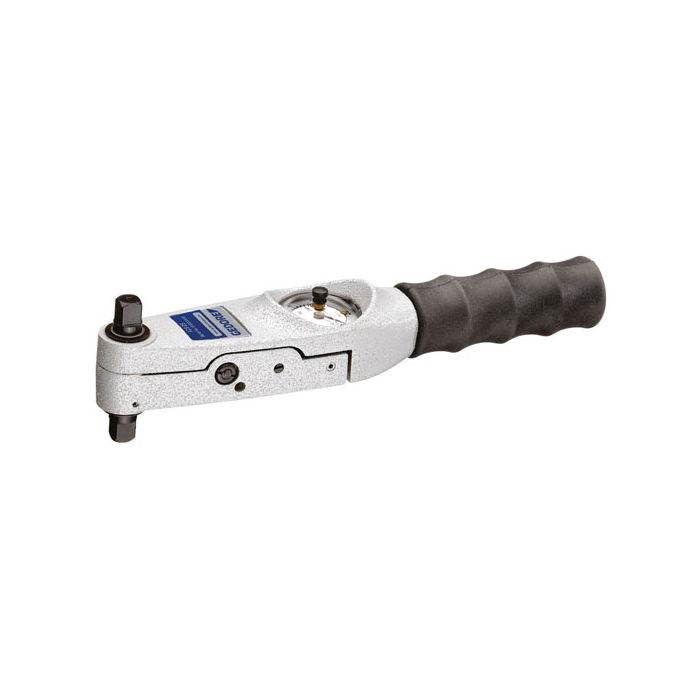

Gedore 7651980 Torque wrench type 83 BDS 1/2" 40-200 Nm

Gedore 7651980 Torque wrench type 83 BDS 1/2" 40-200 Nm

Special features

• Indicating torque wrench with dial indicator and multifunction drag indicator
• 1/4", 3/8", 1/2", 3/4" or 1" double-sided drive square with ball lock for controlled clockwise and counterclockwise tightening
• Models 8301-04 to 8304-80 with integrated ratchet
• For controlled tightening and torque measurements
• Accuracy: +/- 4% tolerance of the set scale value
• According to DIN EN ISO 6789, traceable to national standards
• With dual scale in N-m and lbf-in and lbf-ft, respectively, on two-color, easy-to-read scale
• Built-in overload protection - mechanical stop at 25% overload of max. value
• House made of light, robust special aluminum construction - silver gray painted
• Black, slip-resistant rubber handle
• Models 8301-04 to 8301-40 EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
• Models 8303-40 to 8305-20 have an audio-visual signal as standard

Technical data

• Overall height: 86 mm
• Overall length: 515 mm
• Weight: 1.41 kg
• Drive type: Double square
• Drive connection square [metric]: 12.5 mm
• Drive square inch: 1/2"
• Tightening direction: left and right
• Torque (max.) [lbf-ft]: 160 lbf-ft
• Torque (min.) [lbf-ft]: 30 lbf-ft
• Torque (max.) [Nm]: 200 Nm
• Torque (min.) [Nm]: 40 Nm
• Scope: Production Quality control Maintenance and repair
• Epa/Esd model: None
• Fixed setting: None
• Graphics: None
• Material: Aluminum housing, tubular steel handle
• Measurement Accuracy: +/- 4% Toleranz vom angezeigten Wert
• Accuracy +/-: +/- 4%
• Test certificate: DIN EN ISO 6789-2:2017
• Conformity: compliant
• Deviation [lbf-ft]: 5 lbf-ft
• Scale reading [Nm]: 5 Nm
