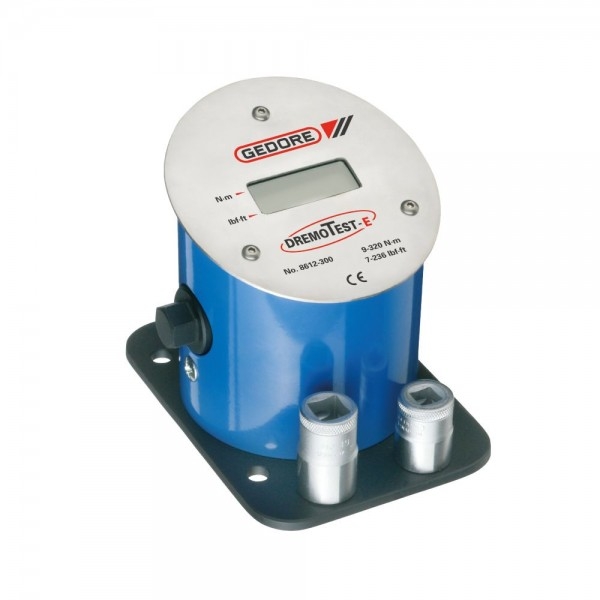

Gedore 1856111 8612-300 Electronic torque wrench tester 9-320 Nm

Gedore 8612-300 Electronic torque wrench tester 9-320 Nm 1856111

Features

• For checking or adjusting clockwise operated torque wrenches in the range of 0.2 to 3150 N-m
• Simple electronic test device with integrated torsion sensor (DMS)
• 5 models in the range of 0.2 - 3150 N-m
• Hexagon socket 1/4. SW 10, 17, 36 mm or inside square 1.1/2" (depending on version)
• 1/4", 3/8", 1/2", 3/4", 1" and 1.1/2" square adapter (depending on model)
• High measuring accuracy: /- 1 % tolerance at all readings, /- 1 digit
• Peak value recognition (first peak / kink point recognition)
• Autoreset
• Switchable from N-m to lbf-ft
• Serial interface RS232
• Optionally available: car adapter (12 V) No. 8612-390

Specifications

• Operating/Measuring range N.m (min/max): 9-320 N-m
• Work/sea force lbf.ft (min/max): 7-236 lbf-ft
• Drive adapter 6-sided nominal size: 17.0 mm
• Resolution: 0,1

Includes

• RS232 cable
• Power supply
• 100 - 240 V, 50 - 60 Hz, max. 500 mA (see nameplate)
• Socket spanners (size and drive depending on model) 2 pcs
• Adapter for 8612-3150
• User manual
