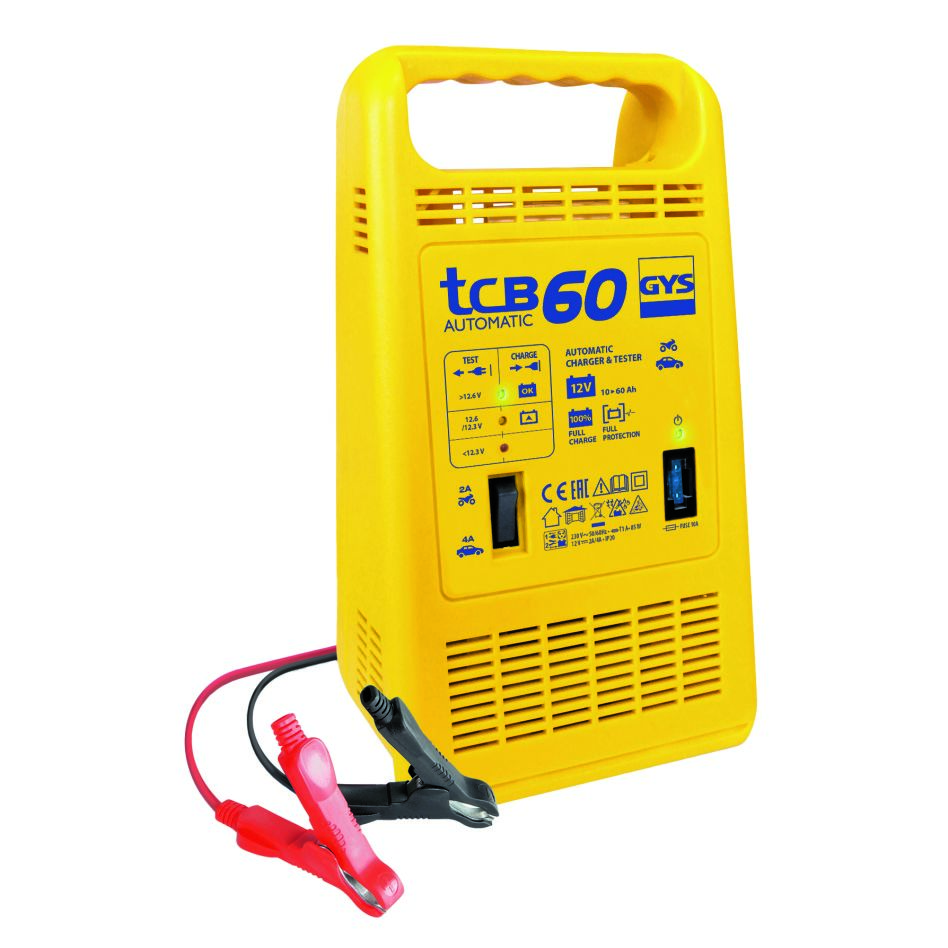

Gys 5192023253 TCB 60 Automatic 12V 10-60Ah Battery Charger

GYS 5192023253 TCB 60 Automatic 12V 10-60Ah Battery Charger

Automatic battery charger with charging status display (3 lights). Guarantees a 100% full battery thanks to the floating process and choice of 2 charging speeds. The unit is equipped with protection for the onboard electronics and there is no risk of overcharging.Also an audible signal is given if the poles are wrongly connected.

Special features

• Unattended charging
• 2 Charging speeds (2A / 4A)
• Suitable for batteries from 15 to 60Ah
• Display charging status (3 lights)
• Protection against overcharging, short circuits
• Sound signal for wrong terminal connection
• Insulated terminals
• IP20

Technical data

• Nom. input voltage 1: 230 V
• Housing material: plastic
• Recommended battery capacity: 15 / 60 Ah
• Height: 290 mm
• Width: 170 mm
• Max. charging current: 6 A
• Depth: 120 mm
• Frequency: 50/60 Hz
• Trickle charger: No
• Number of output connections: 2
• Power factor: 85
• Degree of protection (IP): IP20
• Short-circuit protection: Yes
• Suitable for starter batteries: Yes
• Suitable for industrial batteries: Yes
• Nom. output voltage 1: 12 V
