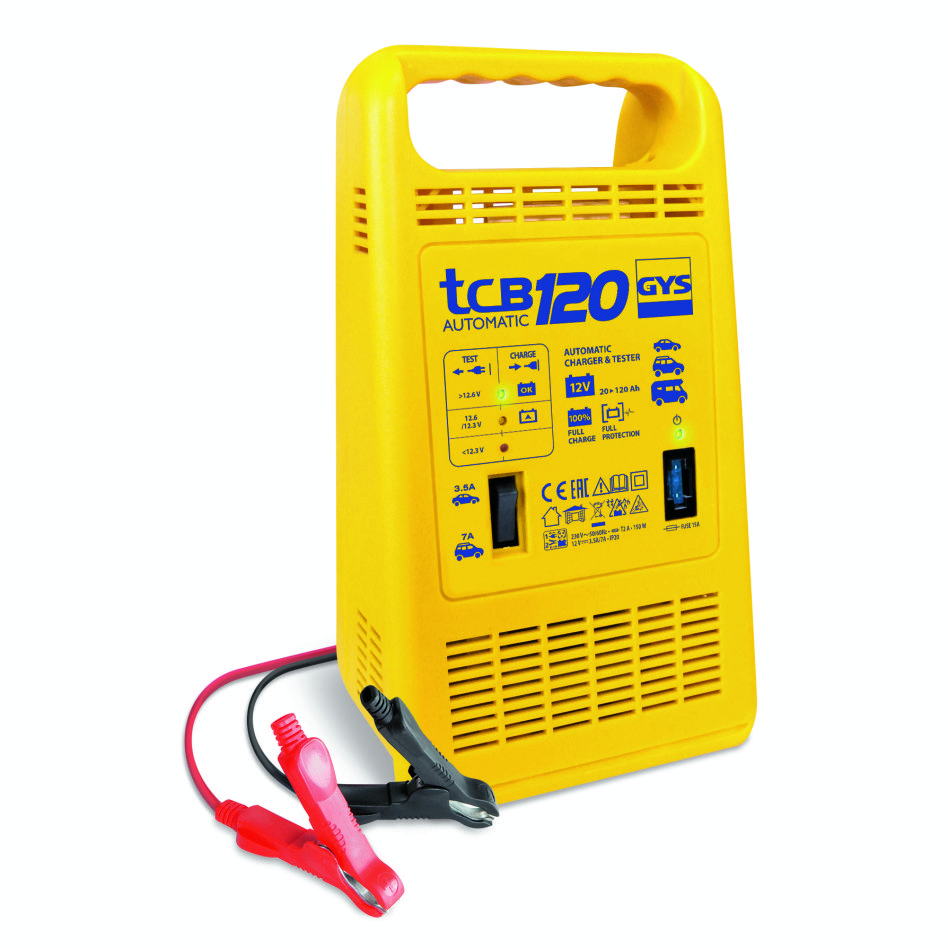

Gys 5192023284 TCB 120 Automatic 12V 20-120Ah Battery Charger

GYS 5192023284 TCB 120 Automatic 12V 20-120Ah Battery Charger

Automatic battery charger with charging status display (3 lights). Guarantees a 100% full battery thanks to the floating process and choice of 2 charging speeds. The unit is equipped with protection for the on-board electronics and there is no risk of overcharging.Also an audible signal is given if the poles are wrongly connected.

Special features

• Unattended charging
• Suitable for batteries from 30 to 120 Ah
• 2 Charging speeds (3.5A / 7A)
• Display charging status (3 lights)
• Protection against overcharging, short circuits
• Sound signal for wrong terminal connection
• Insulated terminals
• IP20

Technical data

• Nom. input voltage 1: 230 V
• Housing material: plastic
• Recommended battery capacity: 20 / 120 Ah
• Height: 290 mm
• Width: 170 mm
• Max. charging current: 10.5 A
• Depth: 120 mm
• Frequency: 50/60 Hz
• Trickle charger: No
• Number of output connections: 2
• Power factor: 150
• Degree of protection (IP): IP20
• Short-circuit protection: Yes
• Suitable for starter batteries: Yes
• Suitable for industrial batteries: Yes
• Nom. output voltage 1: 12 V
