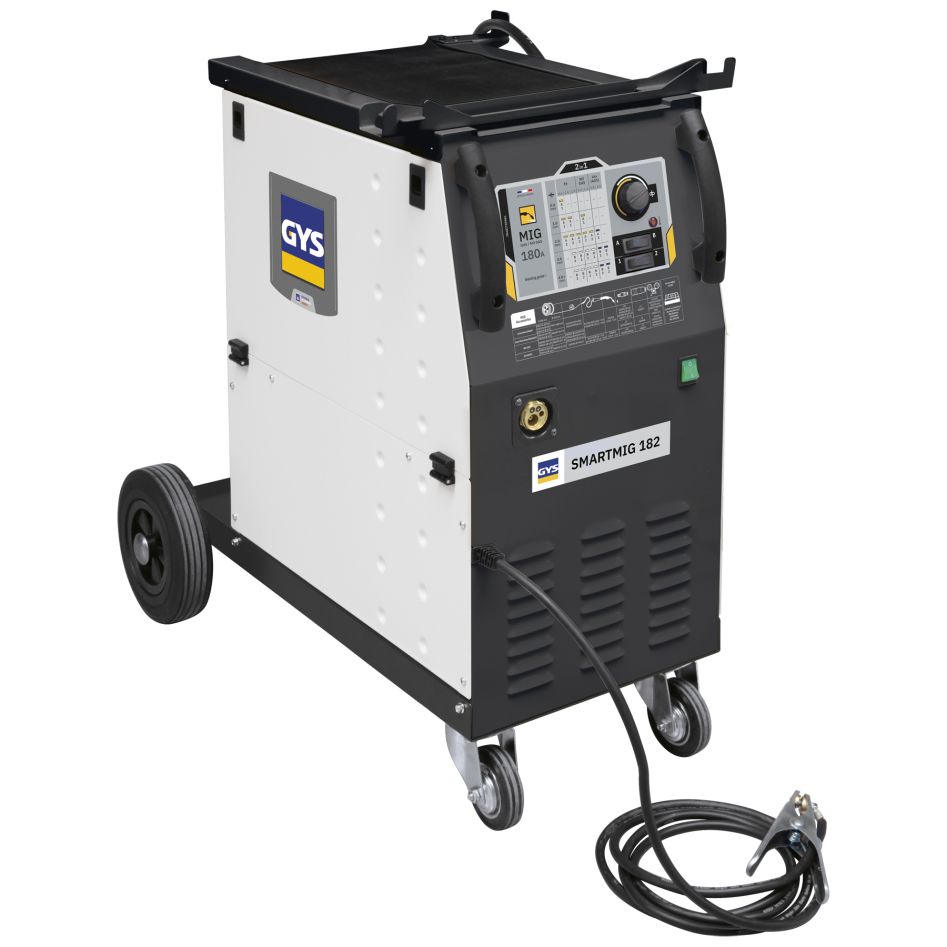

Gys 5192033184 SMARTMIG 182 MIG/MAG Welding Inverter Set

GYS 5192033184 SMARTMIG 182 MIG/MAG Welding Inverter Set

The GYS SMARTMIG 182 is the 2-in-1 welding device for MIG/MAG welding. This robust welding device makes it very easy for private and craft welders to enter the desired settings within seconds.

Special features.

• Supplied with a 3m removable 150A torch to facilitate wire and sheath changes.
• Powerful 40W motor for constant wire removal.
• Suitable for the Ø 200 and 300 mm coil.
• Suitable for 4m³ gas bottles.
• Low energy consumption on a simple 230V - 16A plug.
• Gas: For indoor welding. With these settings, it can use the 0.6 to 1mm wire.
  No gas: For welding in environments where the use of gas is not possible . With these settings, he can use the 0,9 to 1,2mm filled wire.

Technical Data.

• Type: Traditional
• Model: MIG/MAG welder
• Connection voltage: 230 V
• Length: 800 mm
• Width: 390 mm
• Height: 700 mm
• Frequency: 50/60 Hz
• Number of phases: 1
• Weight: 46 kg
• Voltage type: AC/DC
• Max. amperage: 180 A
• Degree of protection (IP): Other
• Fuse rating (slow blow): 16 A
• Operating temperature: -10 / 40 °C
• Continuously adjustable: No
• Max. load capacity at 100% (electrode): 180 A
• No-load voltage: 45 V
• Welding current (electrode): 35 / 180 A
