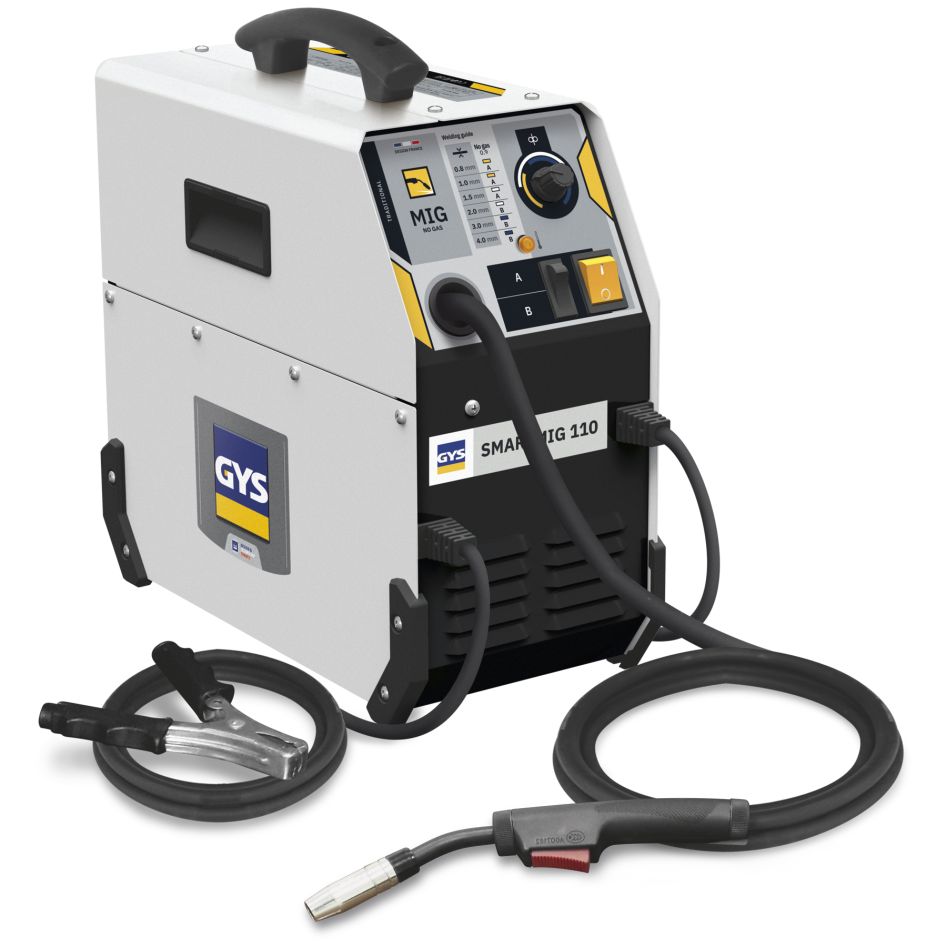

Gys 5192033993 SMARTMIG 110 MIG/MAG Welding Inverter Set
Gys
Articlenr. 5192033993
|
EAN 3154020033993
Description
More Information
FAQ
Description
GYS 5192033993 SMARTMIG 110 MIG/MAG Welding Inverter Set
GYS single-phase welding unit without gas 110A. A portable device ideal for maintenance work. Easy and quick to set up thanks to the SMART solution.Special features.
- Designed for assembly, damage repair or maintenance of steel sheet metal and profiles.
- Portable, weighs only 14 kg
- Low energy consumption, can be connected to an ordinary 230V - 13A socket.
- Suitable for coils with a Ø 100 mm.
- 1 welding procedure : NO GAS, to weld also outside.Filled wire Ø 0,9 mm (kit no gas : 041240).
- Protection against overheating by a built-in fan.
Technical data.
- Type: Traditional
- Model: MIG/MAG welder
- Connection voltage: 230 V
- Length: 160 mm
- Width: 370 mm
- Height: 360 mm
- Frequency: 50/60 Hz
- Number of phases: 1
- Weight: 14 kg
- Voltage type: AC/DC
- Max. amperage: 110 A
- Degree of protection (IP): IP21
- Fuse rating (slow blow): 13 A
- Operating temperature: -10 / 40 °C
- Continuously adjustable: No
- Max. load capacity at 100% (electrode): 110 A
- No-load voltage: 30 V
- Welding current (electrode): 40 / 110 A
- Welding current (MIG/MAG): 40 A
- Welding voltage (MIG/MAG): 25.5 V
More Information
| EAN | 3154020033993 |
|---|---|
| Manufacturer | Gys |
| Order Number | 5192033993 |
| Warranty | 1 year |
| Voltage (V) | 230 V |
