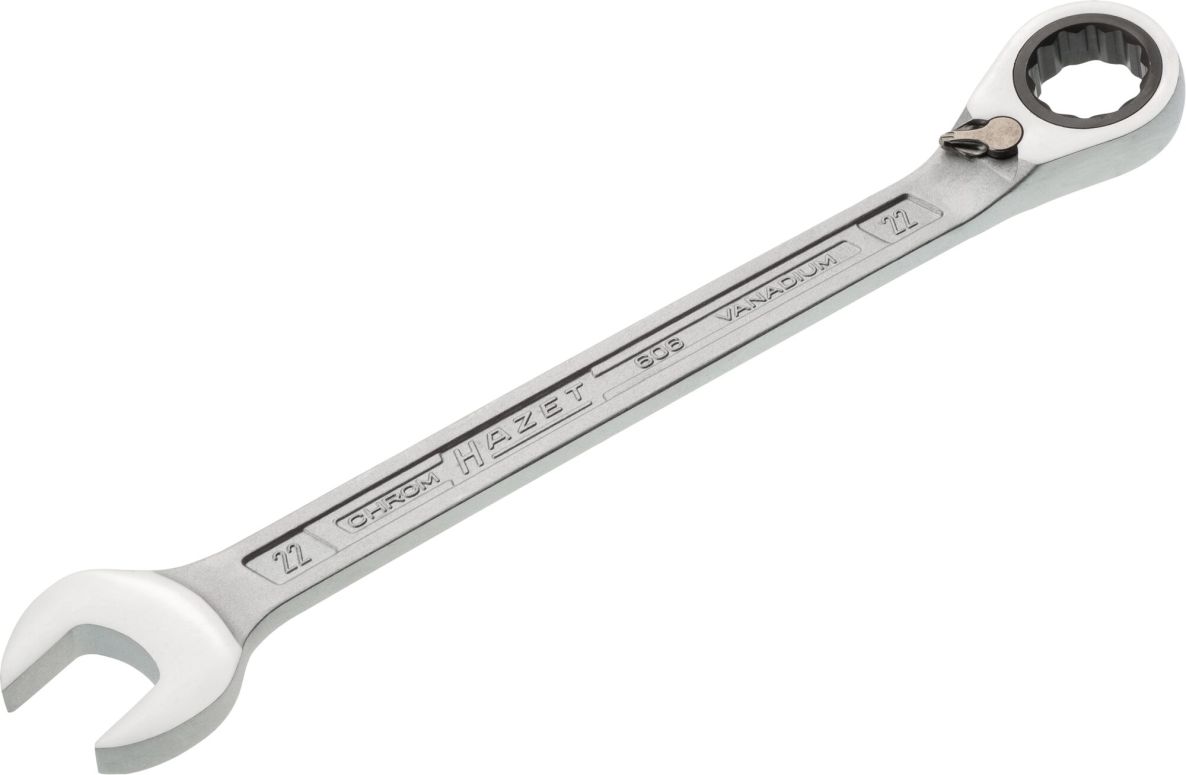

Hazet 606-22 Ratchet Ring Wrench, External Traction Profile, 12-point, SW 22 mm

HAZET 606-22 Ratchet Ring Wrench, External Tread Pattern, 12-point, SW 22 mm

Special Features

• Handling hard-to-reach screw connections in very tight spaces without having to reposition the wrench, thanks to the ratchet function
• Long, slim design
• Shaft with extra-stable HAZET double T-profile
• Ring wrench with switchable ratchet function
• Fine-toothed, 72 teeth, operating angle 5° - Sizes 8 and 9 mm: 60 teeth, operating angle 6°
• Ring side bent at 13°
• HAZET wrenches – extremely precise when tightening and loosening screw connections
• Long service life due to:
• High-quality chrome-vanadium steel
• Dense material structure achieved through die forging
• Careful heat treatment
• Precise hardness and dimensional stability that ensure wear resistance and high load-bearing capacity
• Optimally coordinated shape, dimensions, and machining ensure that functional and ergonomic requirements are met
• A slim design achieved through optimal material distribution ensures sufficient freedom of movement, even for hard-to-reach screw connections
• HAZET torque values are significantly higher than DIN ISO requirements for all wrench sizes—DIN represents the minimum requirement here
• The slim slotted and ring head design does not compromise the wrench’s load-bearing capacity, even though it falls well below the maximum permissible limits specified by DIN ISO

Technical Data

• Angle of engagement: 15°
• Surface: chrome-plated
• Shank: External traction profile, 12-sided
• Wrench width: 22 mm
• Dimensions: 291.5 mm
• Net weight (kg): 0.35 kg
