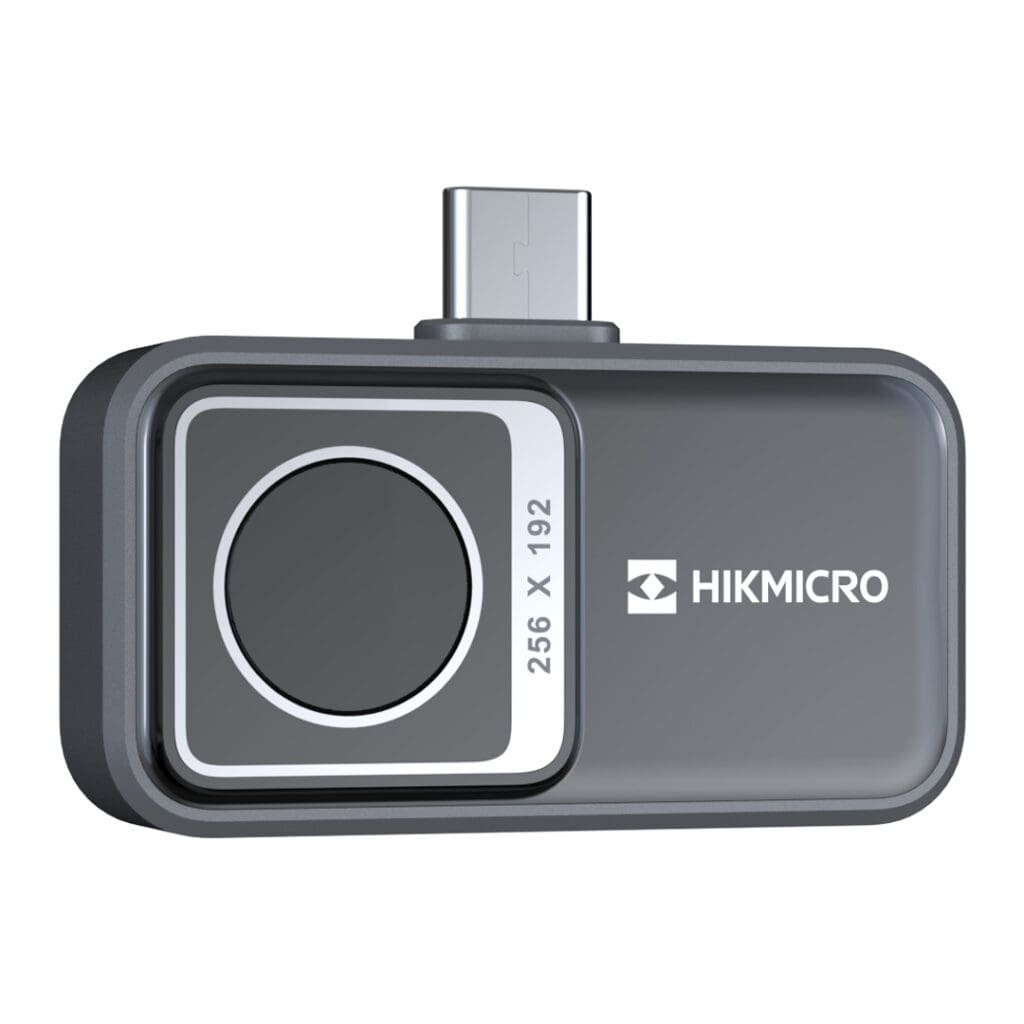

HIKMICRO 545803 Mini2-V2 Thermal Imaging Camera

HIKMICRO 545803 Mini2-V2 Thermal Imaging Camera

Superior performance in a compact size - Explore the world with high accuracy in thermal light.

Special Features.

• Compatible with iPhone 15 series and Android; includes Lightning-to-USB-C adapter for iPhone 14 and older
• Highly sensitive VOx detector (NETD < 40 mK) with resolution 256 × 192 pixels for sharp thermal images
• Wide-angle 50° lens for wide field of view, ideal for inspection of walls, floors and facades
• Temperature range of -20 °C to 400 °C with high measurement accuracy (±2 °C / ±2%)
• Ultimate compact and lightweight design (42 × 22.5 × 11.2 mm, only 20 g)
• Connects directly to smartphone or tablet; ready to use within seconds
• No internal battery: power via smartphone with low power consumption
• Rugged aluminum housing (IP40), drop-proof to 1 m and 3-year warranty
• Advanced features such as PIP mode, 15 color palettes, photo and video recording
• Professional settings for optimal thermal images and accurate measurements

Technical Data

• IR resolution: 256 × 192 (49,152 pixels)
• NETD: < 40 mK (@ 25 °C, F# = 1.0)
• Imaging frequency: 25 Hz
• Detector pitch: 12 μm
• Spectral range: 7.5 - 14 μm
• Focal length: 3.5 mm
• F-number: F1.0
• Field of view (FOV): 50° × 37.2°
• Focus mode: Focus Free
• SuperIR: Yes, on captured images and live view
• Minimum focusing distance: 0.2 m (0.66 ft)
• Image display: Thermal, PIP
• Image modes: White-hot, Black-hot, Rainbow, Ironbow, Sepia, Color, Ice-fire, Rain, Red-hot, Green-hot, Dark Blue, Combined
• Temperature range object:
• -20 °C to 150 °C (-4 °F to 302 °F)
• 100 °C to 400 °C (212 °F to 752 °F)
• Accuracy: Max. ±2 °C / ±3.6 °F or ±2% (at 15-35 °C environment and object > 0 °C)
• Measuring instruments: Midpoint, hot point, cold point
• Analysis instruments: User definable: 3 points, 3 rectangles and 1 line
• Level and span mode: Automatic / Manual
• Power consumption: 360 mW
• Protection level: IP40
• Drop test height: 1 m (3.28 ft)
• Operating temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Weight: approx. 20 g (0.044 lb)
• Dimensions: 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 inches)
• Interface: USB-C Android, USB-C iOS, Lightning iOS (includes Lightning to USB-C adapter)
• Device compatibility: iOS (v14+), Android (v7+), Windows devices
• Software compatibility: HIKMICRO Viewer (iOS/Android), HIKMICRO Analyzer (Windows)

Scope of delivery

• Carrying case
• Extension cable
• Extra long adapter (Lightning)
• Extra long adapter (USB-C)
• Manual
