Holzmann FKS315V1200_400V Format saw

Holzmann FKS315V1200_400V Format saw

Description

• with aluminum format saw table and support table ideal for machining workpieces and cutting panels
• including scorer with its own motor
• central control panel on the machine
• Smooth and precise height and angle adjustment of the saw blade using a hand wheel
• analog angle display for reading the slope of the saw blade
• Very high quality and stable machine housing
• Table widening and extension allow for comfortable work
• lightweight aluminum format sliding table
• Stable parallel stop with fine adjustment
• extendable and robust telescopic stop on the boom with 2 tilt stops

Technical specifications

• Motor power S1: 3000
• Voltage: 400V / 3 / 50Hz
• Table size in mm: 955x400
• Table height in mm: 900
• Table extension in mm: 810x660
• Size of roll table in mm: 1200x360
• Sound power level in dB(A): 100
• Sound pressure level in dB(A): 85.7
• max. cutting height 90° in mm: 100
• max. cutting height 45° in mm: 70
• Cutting width at the parallel stop in mm: 990
• Saw blade (/bore) in mm: 250-315 (/30)
• Saw blade speed in min-1: 4300
• Zipper saw blade in mm: 120 (/20)
• Motor power of the scorer in W: 750
• Zipper saw blade speed in min-1: 8530
• Swing range of saw blade: 0-45°
• Weight 389 kg

Scope of delivery

• Saw blade (ø 315mm)

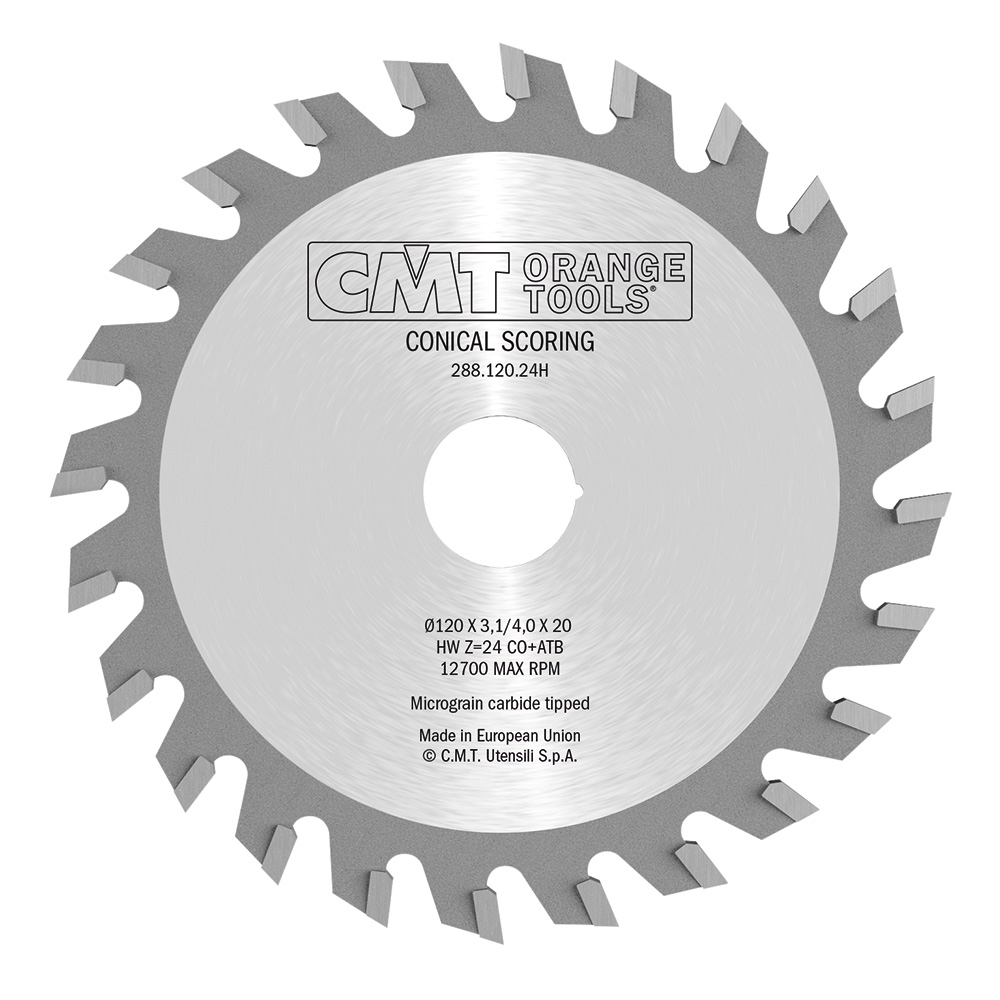

• Front zipper saw blade (ø120mm)
