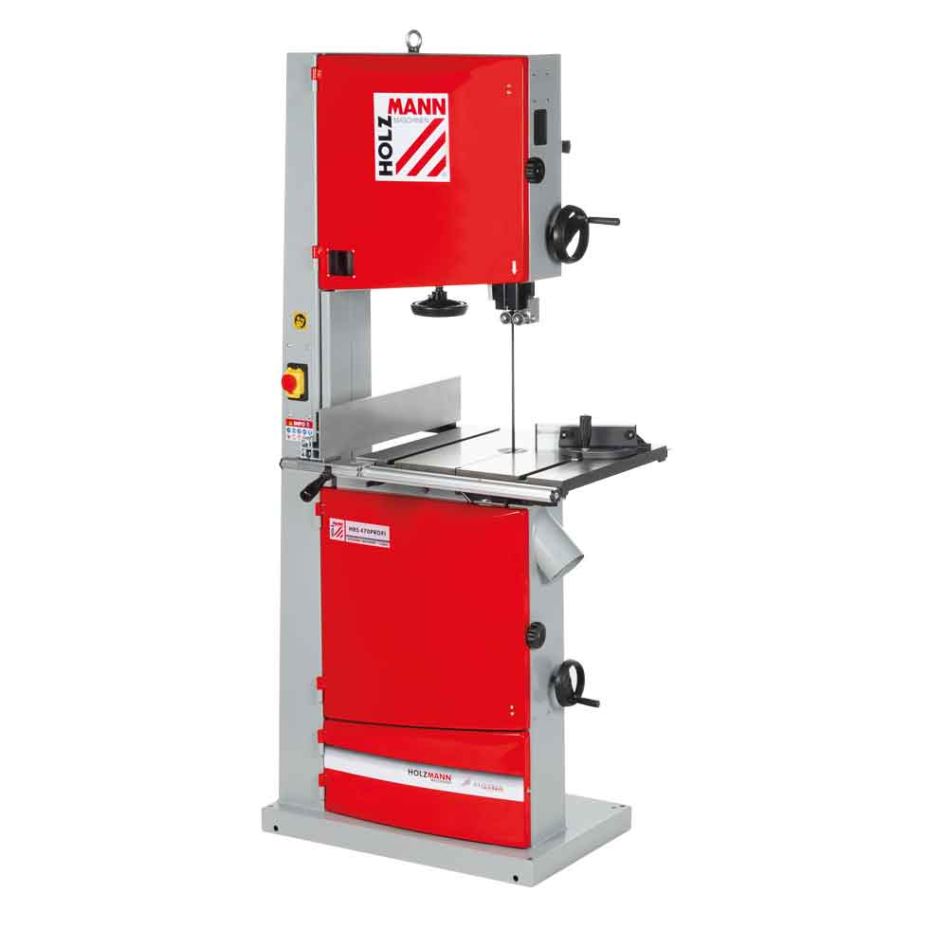

Holzmann HBS470PROFI_230V Wood bandsaw 2 speeds

Holzmann HBS470PROFI_230V Wood bandsaw 2 speeds

Description

• for professional use with cast drive wheels
• Rubberized and precision-bearing cast spoke wheels enable low-noise operation
• Aluminum stop with quick release
• Measuring scale on the stop and magnifying glass for precise reading and setting
• The cutting height can be adjusted easily and quickly using the hand wheel and rack and pinion combination
• Saw band width from 6mm to 25mm possible
• Machine height: 186cm
• 2 speeds (380 or 820m/min)
• Inclination table from 0°-45° via toothed guide
• 2 connection options for suction (Ø100mm)

Technical specifications

• Motor power S1: 1500
• Motor power S6: 2100
• Voltage: 230V
• Projection in mm: 465
• Table size in mm: 530x480
• Table height in mm: 960
• Suction connection in mm: 100
• Pan range: -10° +45°
• max. cutting height 90° in mm: 285
• Cutting width at the rip fence in mm: 390
• Saw band in mm: 3454
• Saw band width in mm: 6-25
• Saw band speed in m/min: 380 /820
• Impeller diameter in mm: 470

Included

• Saw belt
• Mitre gauge
• Fence guide
