Holzmann HOB305ABSSMW2_400V Flat, thicknessing bench PRO

Holzmann HOB305ABSSMW2_400V Planing, thicknessing bench PRO

Special Features

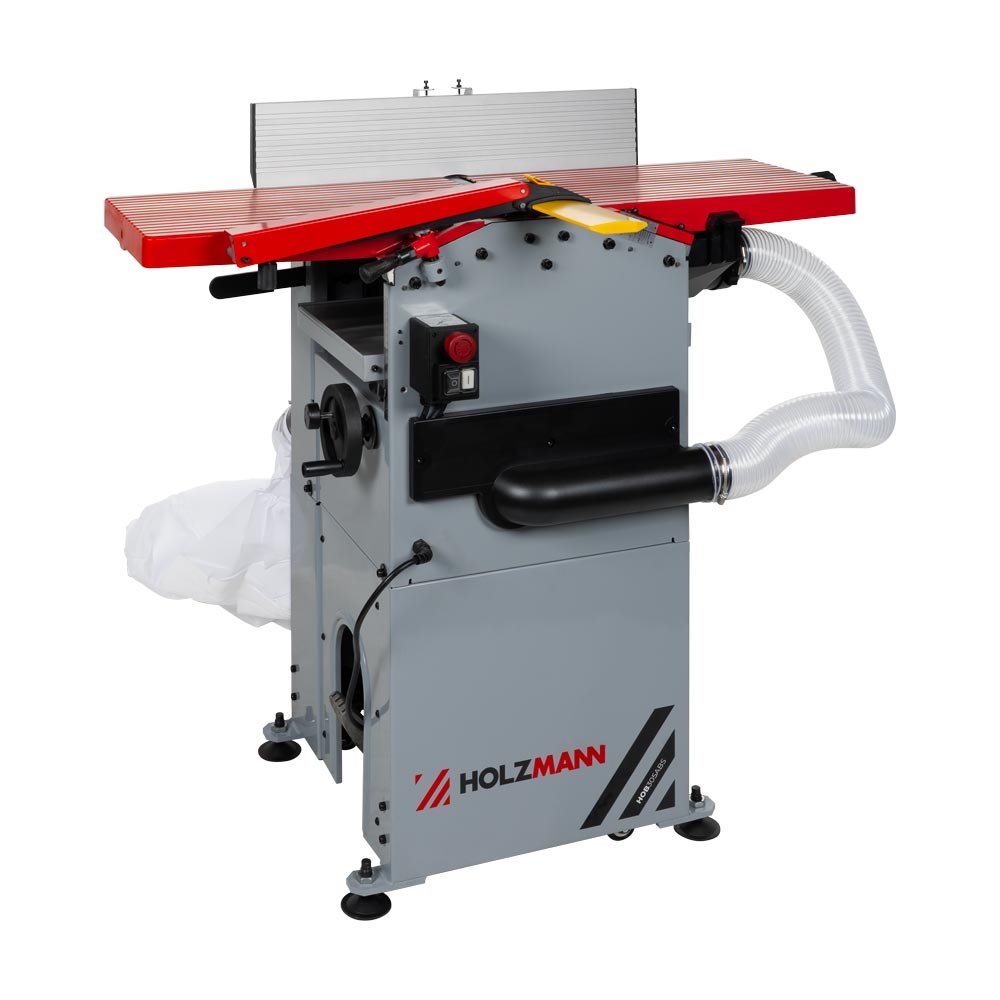

• The HOLZMANN HOB305ABSSMW2_400V is a combined planer/thickness machine with integrated dust extraction and spiral cutter head.
• You save space and cost for an external dust extraction system.
• Thanks to the included transport device, it can be quickly stored away after use. An added bonus when space is limited!
• Equipped with spiral cutting head: (2 grooves, 28 x cutting inserts (15 x 15 x 2.5 mm) for a professional finish!

Advantages

• Combined planing and thicknessing machine with integrated dust extraction
• Easy and fast transformation to thickness function
• Dust bag allows for convenient bag changes
• Solid aluminum pressure cast table
• Tilting aluminum planing fence
• The thickness feed drive can be disabled
• Includes movable device (2x swivel casters, 2x fixed casters with lowering and lifting function)
• Spiral cutting head: (2 grooves, 28 x cutting inserts (15 x 15 x 2.5 mm)

Technical data

• Planing table dimension in mm 1075 x 305
• Thickness table height in mm 925
• Max. thickness cutting depth in mm 3
• Planing guide in mm 643 x 126
• Tilt 90-45°
• Motor power s1 in W 1800
• Voltage 400 V / 50 Hz
• Cable length 1.8 m
• Feeding speed 8.3 m/min
• Overall dimensions in mm 1140 x 780 x 1080
• Table size in mm 500 x 305
• Cutting depth in mm 2
• Thickness height in mm 160
• Shaft diameter in mm Ø62
• Shaft speed in min-1 6700
• Quantity of cutting blades 2
• Sound power level in dB(A) 96.2
• Sound pressure level in dB(A) 83.2
• Gross weight in kg 99
• Net weight in kg 93
• Packing width in mm 690
• Packing length in mm 1,225
• Packing height in mm 590

Scope of delivery

• Pallet
• Spiral cutting head: (2 grooves, 28 x cutting inserts (15 x 15 x 2.5 mm) (gemonteerd)
• Integrated dust extraction, standard, mounted cutting inserts, dust bag
