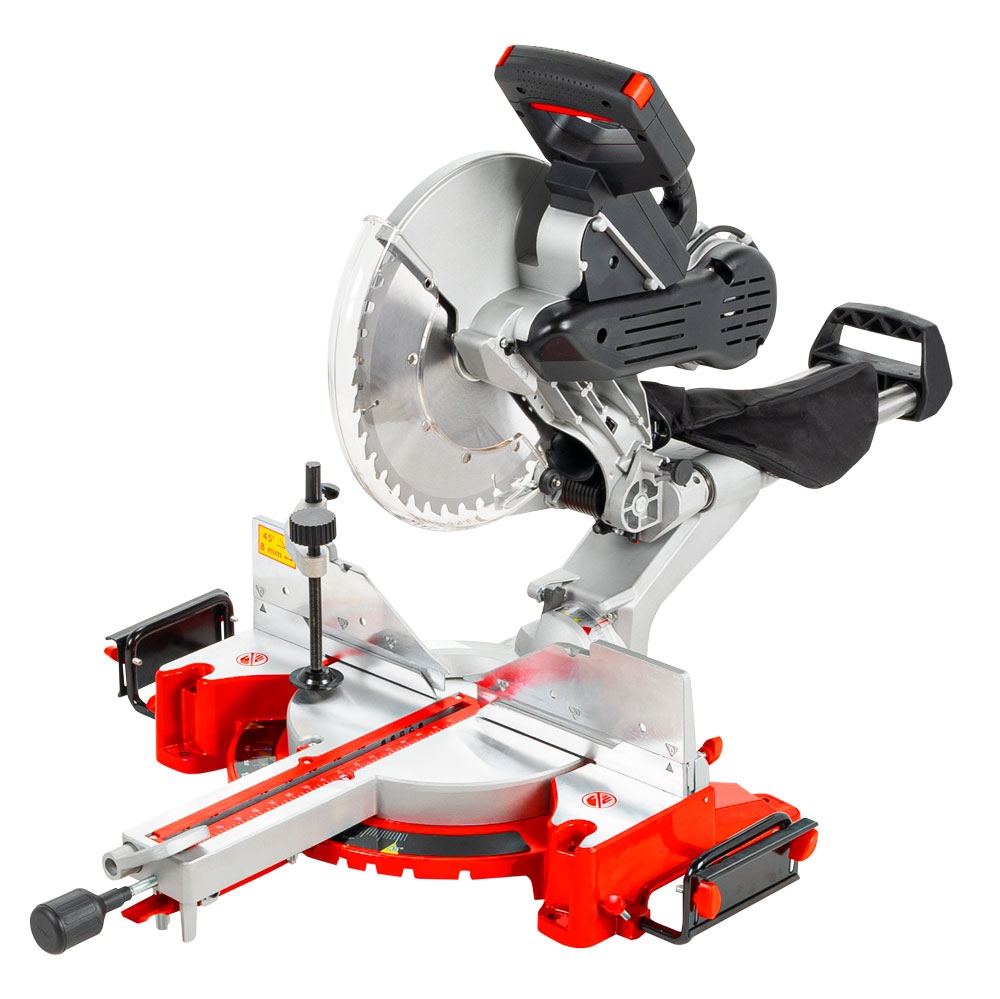

Holzmann KAP305JL_230V Pull, crosscut and mitre saw 330 mm

Holzmann KAP305JL_230V Draw, cut and mitre saw 330 mm

Special Features

• You will never want to part with this machine again! The HOLZMANN KAP305JL_230V convinces in all disciplines. Cutting square timber of 10x10? No problem. Cutting 30 cm glued wood panels to length? No problem. Exact miters for skirting boards? No problem. With our top seller, you can solve any tasks that arise in your home, garden and your own creativity. Nothing will stop you!

Advantages

• Extremely quiet and mechanically soft thanks to belt drive
• Saw unit swivels and rotates left/right (-45°/+45°) (-45°/+45°)
• extendable table extension with back stop
• A narrow laser line marks the exact cutting line
• Depth stop for groove cutting included
• Particularly smooth-running and precisely mounted double guide cable system
• Very solid cast aluminum base provides optimum stability

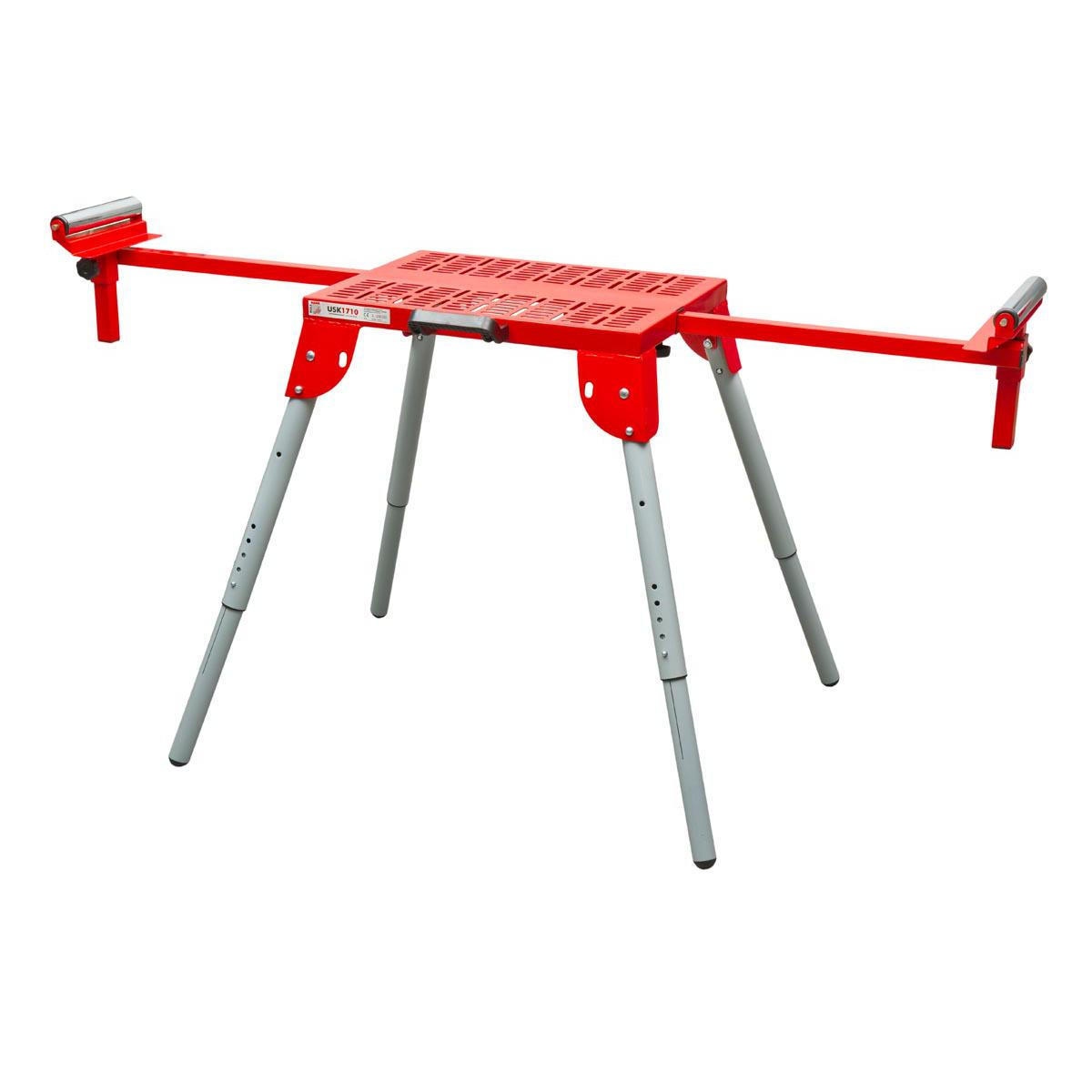

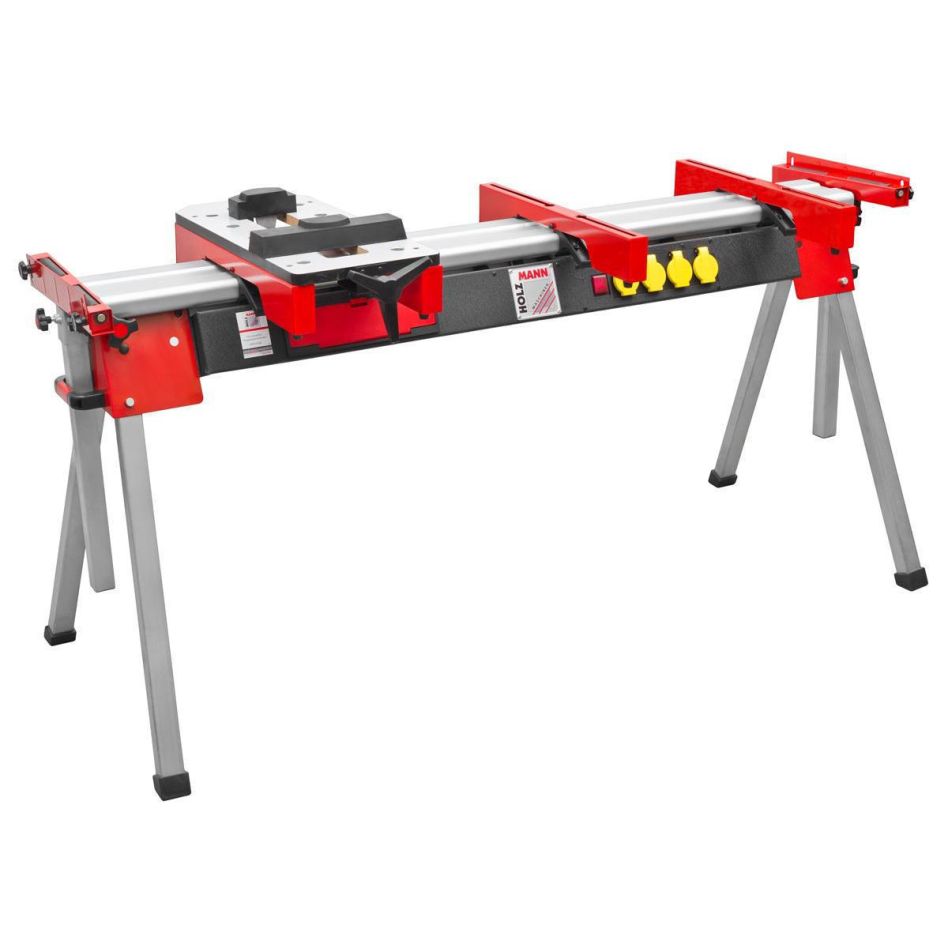

• Expandable with machine stand USK2760 or USK1710

Technical data

• Motor power S1 in W 1600
• Speed in min-1 4200
• Motor power S6 in W 2000 S6 (25%)
• Cable length 1.2 m
• Protection class IP20
• Suction connection in mm Ø68
• Installation dimensions in mm 895x900x700
• max. cutting length 45° in mm 240
• max. cutting length 90° in mm 330
• max. cutting height 90° in mm 115
• max. cutting height 45° in mm 85

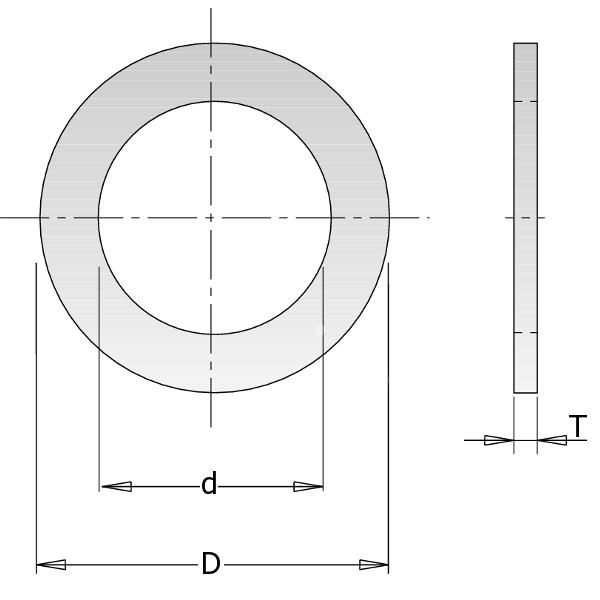

• Saw blade (/bore) in mm 305 (25.4) Reduction ring optional to order
• Sound power level in dB(A) 108
• Sound pressure level in dB(A) 95
• Net weight in kg 21
• Gross weight in kg 25
• Packing height in mm 550
• Packing width in mm 520
• Packing length in mm 945

Scope of delivery

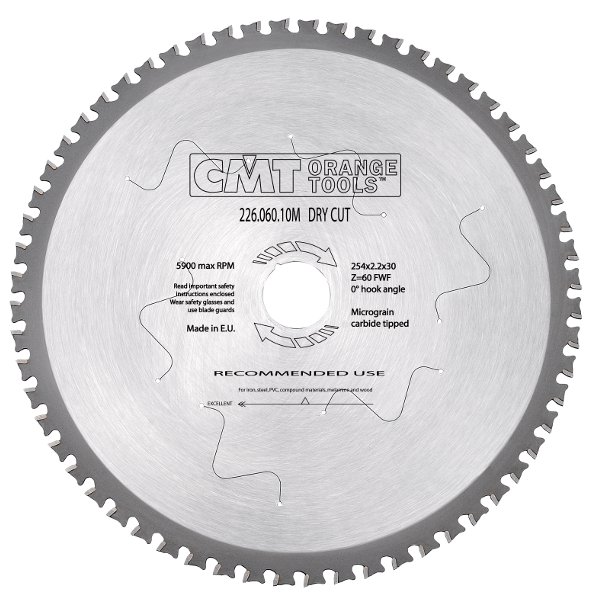

• Carbide circular saw blade
• Laser
• Table extension
