Holzmann TS400Z_400V table saw 120 mm 400V

Holzmann TS400Z_400V table saw 120 mm 400V

Description

• ideal for carpentry needs with stable saw unit
• easy-to-use saw unit with 90° turntable and simultaneous
• adjustable saw blade (up to 45°) for a wide range of cutting work
• (Rip cut, chop cut, miter cut, compound cut, etc.)
• Valley and ridge savings such as eaves and wedge planks cuts possible
• no chips or dust due to the possibility of connecting an extraction hood
• Saw unit or saw blade protective hood

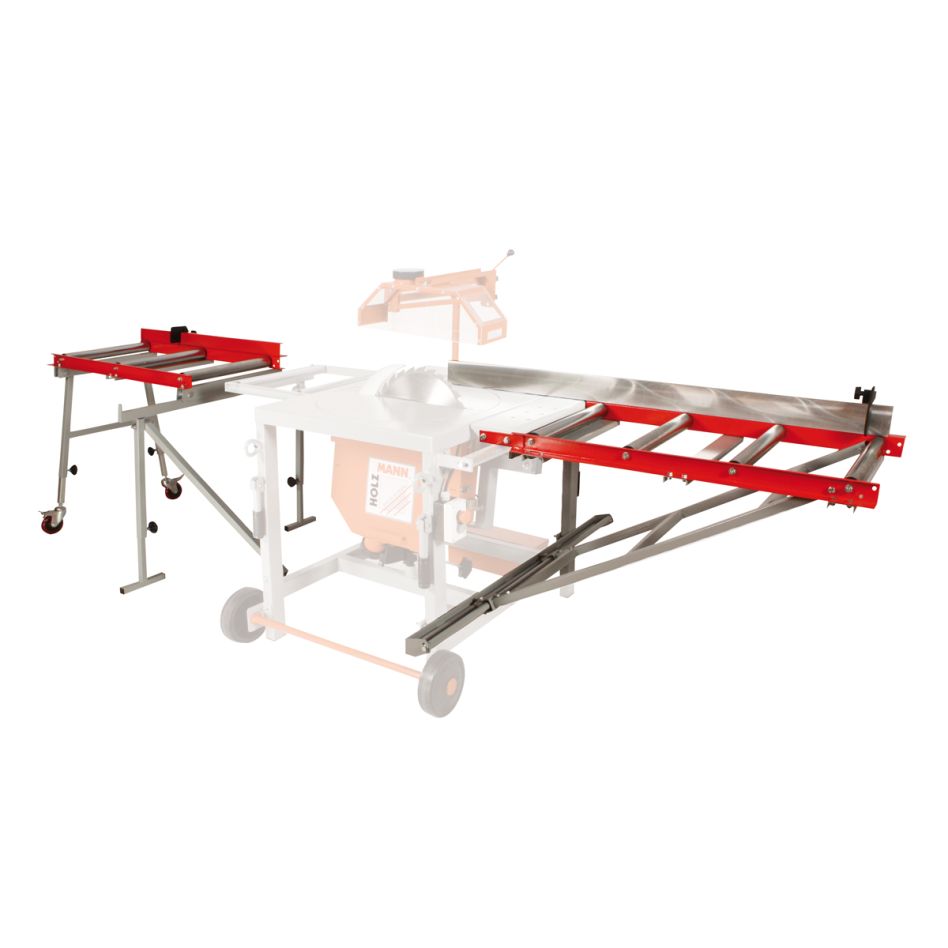

• optionally with movable retraction and extension roller table for easy
• Machining large workpieces
• high location flexibility thanks to standard running gear
• integrated tool box offers storage space

Technical specifications

• Motor power S1: 2800
• Motor power S6: 4200
• Voltage: 400V
• Table size in mm: 715x945
• Table height in mm: 845
• Suction connection in mm: 2x100
• Dimensions in mm: 1350x1100x1180
• max. cutting height 90° in mm: 120
• max. cutting height 45° in mm: 90
• Saw blade (/bore) in mm: 400
• Saw blade speed in min-1: 2800
• Saw blade swivel range: 0°-45°
• Weight 130kg

Scope of delivery

• Saw blade
