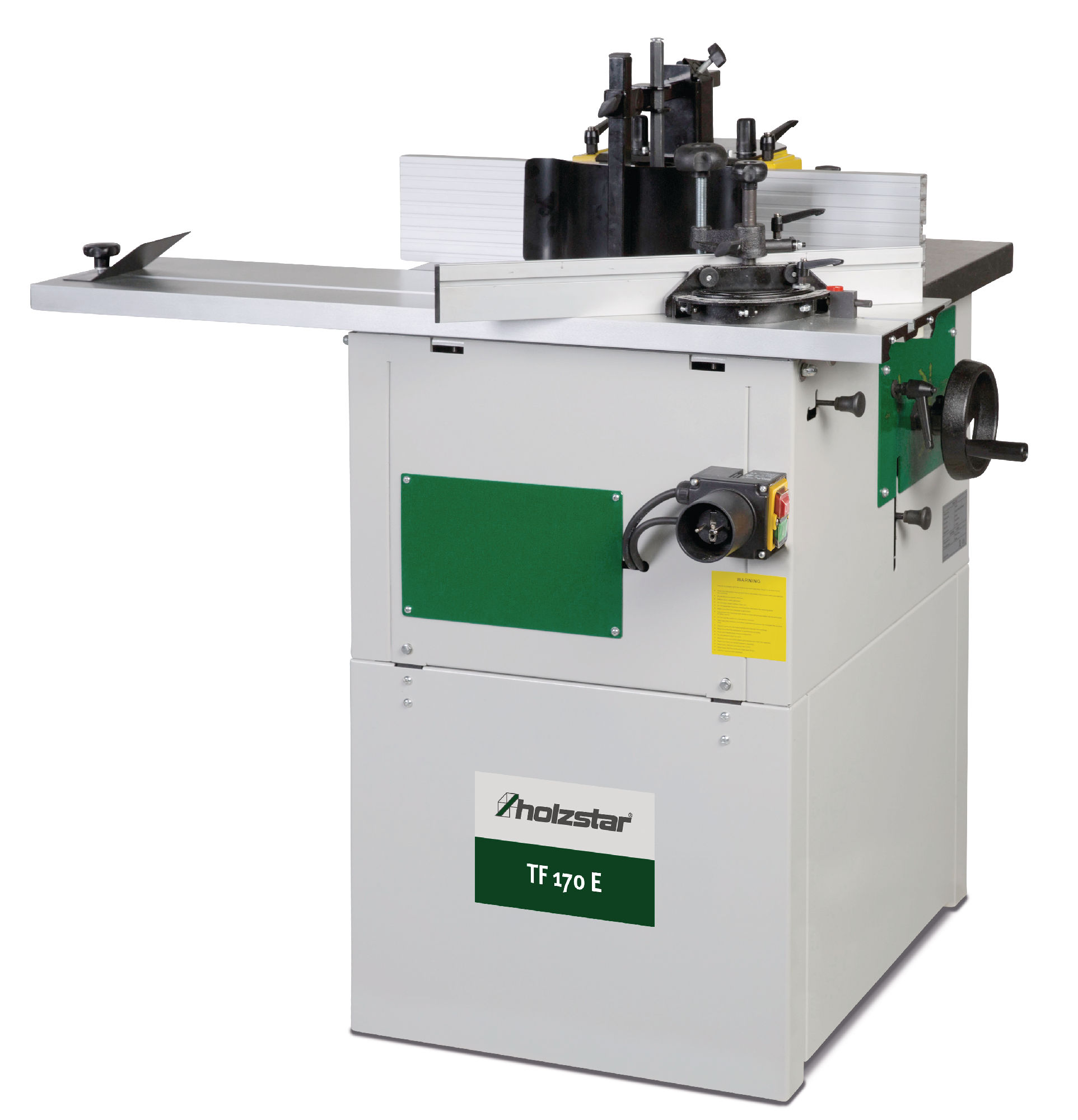

Holzstar 715901918 TF170E Table milling machine Toupie 1.1 kW 400 volts

Holzstar TF170E Table Mill Toupie 1.1 kW 400 Volt

Special features

• Milling machine / toupie with aluminum runner and fixed milling spindle

• Aluminum runner for easy feeding of workpieces
• Milling stop with finely adjustable aluminum stops
• Quick and easy speed change thanks to multiple V-belt / belt
• Heavy cast iron table with large work surface
• Cast iron milling spindle
• The milling spindle swings backward for optimal use of the feed device, maximum safety, and a neat milled finish
• Tightening clamp voor precieze en veilige werkstukgeleiding

Applications

• Manufacturing cornices, mouldings, profiles, counter-profiles in all types of wood
• For the discerning do-it-yourselfer, semi-professional, repairer, designer

Technical data

• Voltage V 400
• Power kW 1.1
• Diameter of spindle mm 30
• Spindle inclination ° +5 -45°
• Length of spindle mm 80
• Working height mm 870
• Max. tool diameter mm 160
• Speed rpm 1,400 / 4,000 / 6,000 / 9,000
• Suction nozzle mm 100
• Weight kg 96.00
• Dimensions (l x w x h) mm 1,000x900x1,140

Scope of delivery

• Corner stop
• Tightening clamp
• Milling shield
• Dutch manual
• On pallet
