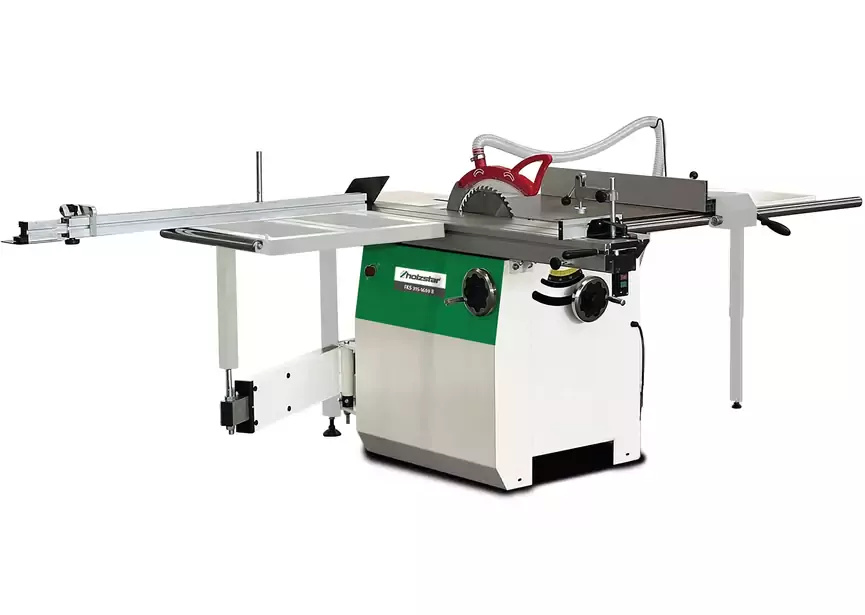

Holzstar 715902041 FKS 315-1600B Panel Saw 400V

Holzstar 715902041 FKS 315-1600B Panel Saw 400V

The Holzstar FKS 315-1600 B is a high-quality panel saw that excels in durability and precision. Thanks to its standard built-in scoring unit and sliding table system, this machine is the ideal partner for demanding tasks in furniture making and interior finishing. With a powerful 3 kW motor and a maximum cutting height of 100 mm, this saw effortlessly delivers professional results, even with intensive daily use.

Special Features

• Standard scoring blade: For a flawless, splinter-free finish on coated materials such as melamine, plywood, and particleboard. No more tearing—a perfect cut edge right away
• Maximum stability: The cast-iron worktable minimizes vibrations, which is essential for precision work and a long service life for your saw blades
• Versatile angle adjustment: Telescopic miter gauge with precise adjustment from -45° to +45° for complex miter and bevel cuts
• Ergonomic operation: Height adjustment and saw blade tilt (90° to 45°) are smooth and precise via hand wheels, without the need for tools

Technical Specifications

• Voltage: 400V
• Dimensions (L x W x H): 4700 x 3850 x 1300 mm
• Working height: 865 mm
• Weight: 270 kg
• Power: 3 kW
• Saw blade diameter x arbor hole: 315 x 30 mm
• Max. cutting height at 90°: 100 mm
• Max. cutting height at 45°: 80 mm
• Cutting speed: 4500 min⁻¹
• Blade tilt: 90° to 45°
• Cutting length: 1,600 mm
• Cutting table dimensions: 1,300 x 1,260 mm
• Carriage dimensions: 1600 x 270 mm
• Max. cutting width with stop: 900 mm
• Max. cutting width without stop: 2430 mm
• Saw blade exhaust port: 40 mm
• Exhaust diameter: 98 mm
• Saw blade diameter x bore x thickness: 100 x 20 x 3 mm
• Scoring blade speed: 8,500 rpm

Scope of delivery

• Complete FKS 315-1600 B panel saw with cast-iron worktable
• 1x Scoring unit (pre-installed as standard)
• 1x Main saw blade: 315 x 30 x 3 mm (24 teeth)
• 1x Scoring blade: 100 x 20 x 3 mm (12 teeth)
• Telescopic miter stop (-45° to +45°)
• 1x Parallel guide on round rod
• 1x Eccentric clamp
• 1x Table extension and table lengthener
• 1x Rolling table with format sliding system
