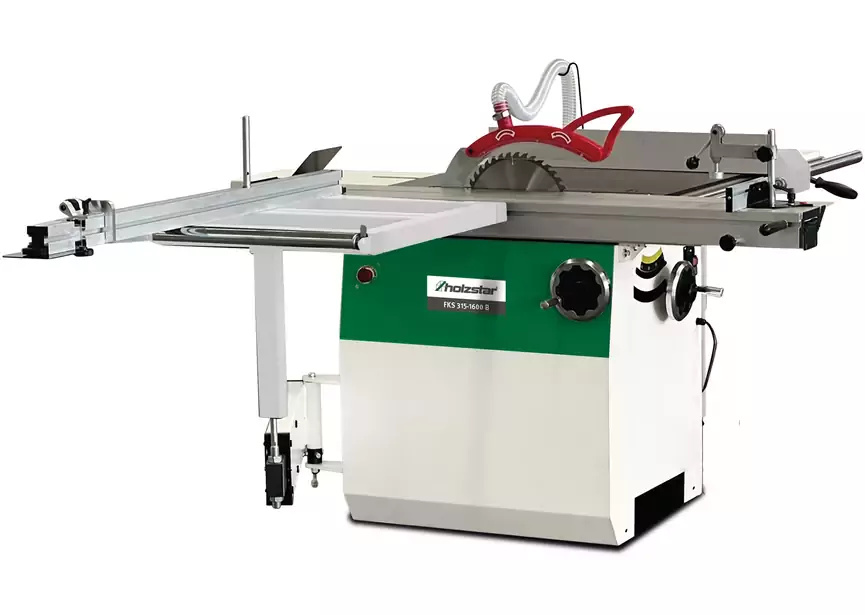

Holzstar 715902043 FKS315-2600B Panel Saw with Scoring Unit

Holzstar 715902043 FKS315-2600B Panel Saw with Scoring Blade

The Holzstar FKS 315-2600 B is a professional panel saw designed for the demanding woodworker. With a powerful 3 kW motor and a standard integrated scoring unit, this machine delivers flawless cutting results, even with coated sheet materials. The combination of a stable cast-iron table, a long 2600 mm sliding table, and a smart dust extraction solution makes this saw an indispensable partner in any furniture-making or interior design workshop. Experience how effortlessly and precisely you can process solid wood and sheet materials, resulting in a splinter-free finish.

Special Features

• Standard scoring blade – Ensures a splinter-free cut edge when cutting coated materials such as melamine, plywood, MDF, and particleboard. A professional finish without the need for additional finishing.
• Maximum stability – The solid cast-iron worktable minimizes vibrations. This ensures exceptional precision, higher cutting speeds, and a longer service life for your saw blades.
• Extensive working range – With a 2600 mm sliding table and a maximum cutting width of up to 900 mm (with stop), you can easily and safely process even large and heavy workpieces.
• Flexible angle adjustment – Saw blade tilt from 90° to 45° and a telescopic miter stop from -45° to +45° make this machine highly versatile for all common miter and crosscut operations.
• Ergonomic operation – The height adjustment and blade tilt are controlled smoothly and precisely via large, easily accessible handwheels.
• Optimized dust extraction – Equipped with a 98 mm dust extraction port and a 40 mm port above the table, ensuring a dust-free work environment and a clear view of the cutting line.

Technical Specifications

• Electrical Connection (Voltage): 3x400 V
• Power: 3 kW
• Cutting speed: 4500 min⁻¹
• Cutting length: 2,600 mm
• Cutting table dimensions: 1,300 x 1,260 mm
• Carriage dimensions: 2,600 x 270 mm
• Max. cutting width (with stop): 900 mm
• Max. cutting width (without stop): 2,430 mm
• Working height: 865 mm
• Main saw blade: Diameter 315 x 30 mm bore, thickness 3 mm (24 teeth)
• Scoring blade: Diameter 100 x 20 mm bore, thickness 3 mm (12 teeth), speed 8,500 rpm
• Weight: 311 kg
