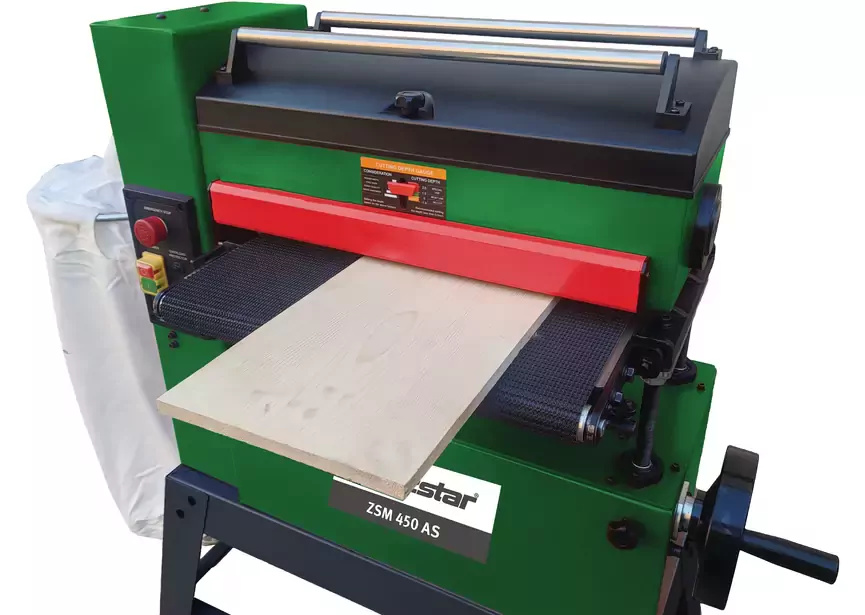

Holzstar 715903450 ZSM450AS Cylinder Sander, 230V

Holzstar 715903450 ZSM450AS Cylinder Sander 230V

The Holzstar ZSM 450 AS is a high-quality cylinder sander that excels in flexibility and ease of use. Thanks to its infinitely variable speed control and open design, this machine is the ideal tool for perfectly sanding a variety of workpieces. With a powerful 1.8 kW motor and an integrated dust extraction system, this machine delivers professional sanding results in a compact and portable design.

Special Features

• Open design: One side is open, making it possible to sand workpieces that are wider than the machine itself—ideal for processing large panels and furniture parts
• Practical Shelves: Convenient rollers on the top of the machine serve as storage and facilitate the handling of workpieces during the sanding process
• Integrated dust extraction: Built-in dust extraction with a 75 mm connection for dust-free and healthy working conditions, keeping your workshop clean
• Precise adjustment: Precise height adjustment and clamping via a handwheel, allowing you to easily set the desired sanding depth
• Mobile base: Base with parking brake for easy movement around the workshop, allowing you to use the machine flexibly

Technical Specifications

• Voltage: 230V
• Dimensions (L x W x H): 560 x 1175 x 1240 mm
• Weight: 119 kg
• Power: 1.8 kW
• Feed motor: 80 W
• Feed speed: 0.5–4 m/min (continuously adjustable)
• Work table length: 465 mm
• Work table width: 460 mm
• Minimum workpiece height: 3 mm
• Maximum workpiece height: 115 mm
• Sanding belt dimensions: 76 x 2115 mm
• Sanding belt suction nozzle: 75 mm

Scope of delivery

• 1x Complete ZSM 450 AS cylinder sander
• 1x Mobile base with parking brake
• 1x Drive unit with stepless speed control
• 1x sanding belt 2115 x 76 mm (150 grit)
• 1x Integrated dust extraction system with filter bag
