Holzstar 715903501 OBSS100 Oscillating spindle and belt sander 230V

Holzstar OBSS100 Oscillating spindle and belt sander 230V

Special Features

• Compact oscillating spindle and belt sander.
• Belt and spindle grinding easily and quickly exchanged in one device
• High precision and stability thanks to robust cast iron table
• Continuously tiltable table from 0° to 45°
• Powerful motor for all wood types
• Safe and clean working thanks to the built-in extraction to be connected to an extractor
• Built-in storage for everything accessories
• Easy to move and store

Strengths

• Electric motor with belt drive
• Ball-bearing, permanently smooth-running sheet steel sliding table
• Stable and torsion-resistant steel frame
• Robust and powerful motor 5.2 kW
• Rotary movement of the wood is stopped by stamped barbs in the rocker arm
• Safe and smooth work even as full capacity thanks to a movable handle that secures the wood in the bowl.

Applications

• Ideal for the craftsman, hobbyist and training centers

Technical data

• Voltage V 230
• Power kW 0.45
• Sanding belt dimensions mm 610x100
• Cast iron worktable mm 430x410
• Work table angle ° 0-45
• Oscilation rpm 58
• Diameter extraction nozzle mm 38
• Weight kg 12.00
• Dimensions (l x w x h) mm 530x480 x480
• Spindle diameter: 12.7 mm
• Oscillation stroke: 16 mm
• Max. sanding height: 98 mm
• Sanding length: 220 mm
• Sanding width: 100 mm

Scope of delivery

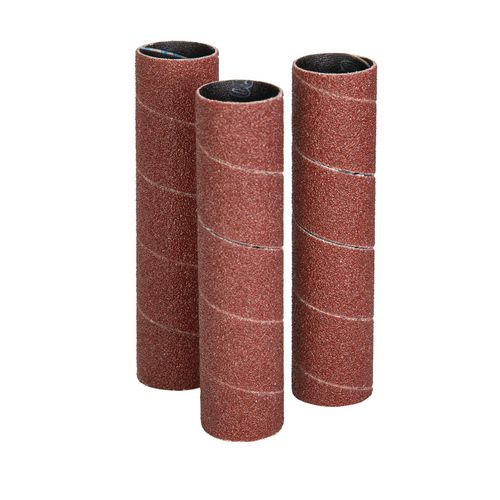

• 5 sanding sleeves K80 - Ø 13 / 19 / 26 / 38 / 51 mm
• 4 rubber grinding rollers, length 115 mm - Ø 19 / 26 / 38 / 51 mm
• 5 table attachments - Ø 13 / 19 / 26 / 38 / 51 mm
• 3 spindle discs - Ø 16 / 22 / 44 mm
• Sanding belt attachment with cover
• Workpiece stop
• Tools for assembly
