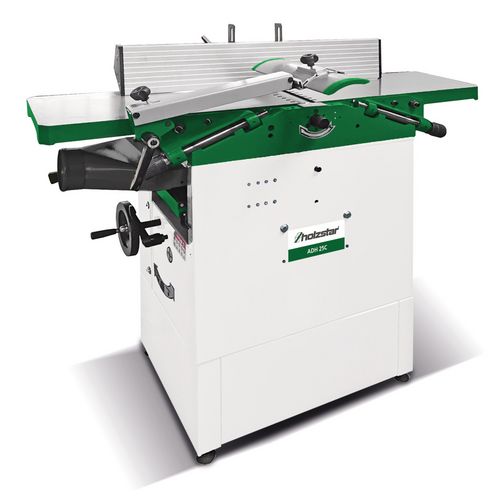

Holzstar 715904002 ADH25C Flattening vice 250 mm 1.5kW 230V

Holzstar ADH25C Plane thicknesser 250 mm 1.5kW 230V

Special Features

• Stationary combined planer thicknesser with a planing width of 250 mm.
• Powerful motor
• Rubber-coated feed and discharge rollers protect wood when planing thicker material
• Professional pivoting planer guide from 90° to 45°
• Large thick cast iron table with polished surface
• Large table made of ribbed die-cast aluminum
• Easy adjustment of planing height by hand wheel

Strengths

• Ergonomic design
• Simultaneous opening of tables
• Simultaneous folding of lay-on tables with spring support for quick and easy changeover for thickness planing in seconds
• Fixed exhaust hood eliminates the need to replace the exhaust hose during conversion
• Automatic workpiece feeding
• The rubber roller protects the workpiece during thickness planing

Applications

• The ambitious home-based worker or professional
• Planing, sanding, calibrating or smoothing
• For corner joints (90°) and easy machining of solid wood boards and slats

Technical data

• Voltage V 230
• Power kW 1.5
• Diameter extraction mm 100
• Working height mm 860
• Table length mm 1090
• Length of thickness table mm 600
• Width of thickness table mm 248
• Wall thickness height max. mm 195
• Vand thickness height min. mm 5
• Maximum planing capacity/throughput mm 2
• Throughput m/min 8
• Planing width mm 250
• Dimensions flat table (l x w) mm 1090X255
• Angled planer guide ° 90-45
• Planer shaft speed rpm 4000
• Number of blades 3
• Planer shaft diameter mm 75
• Weight kg 142.00
• Dimensions (l x w x h) mm 1100x700 x980

Scope of delivery

• Set of planing knives
• Manual, markings, CE mark, and CE certificate according to Machine Directive 2006/42/CE, and EMC Directive 2014/30/CE
