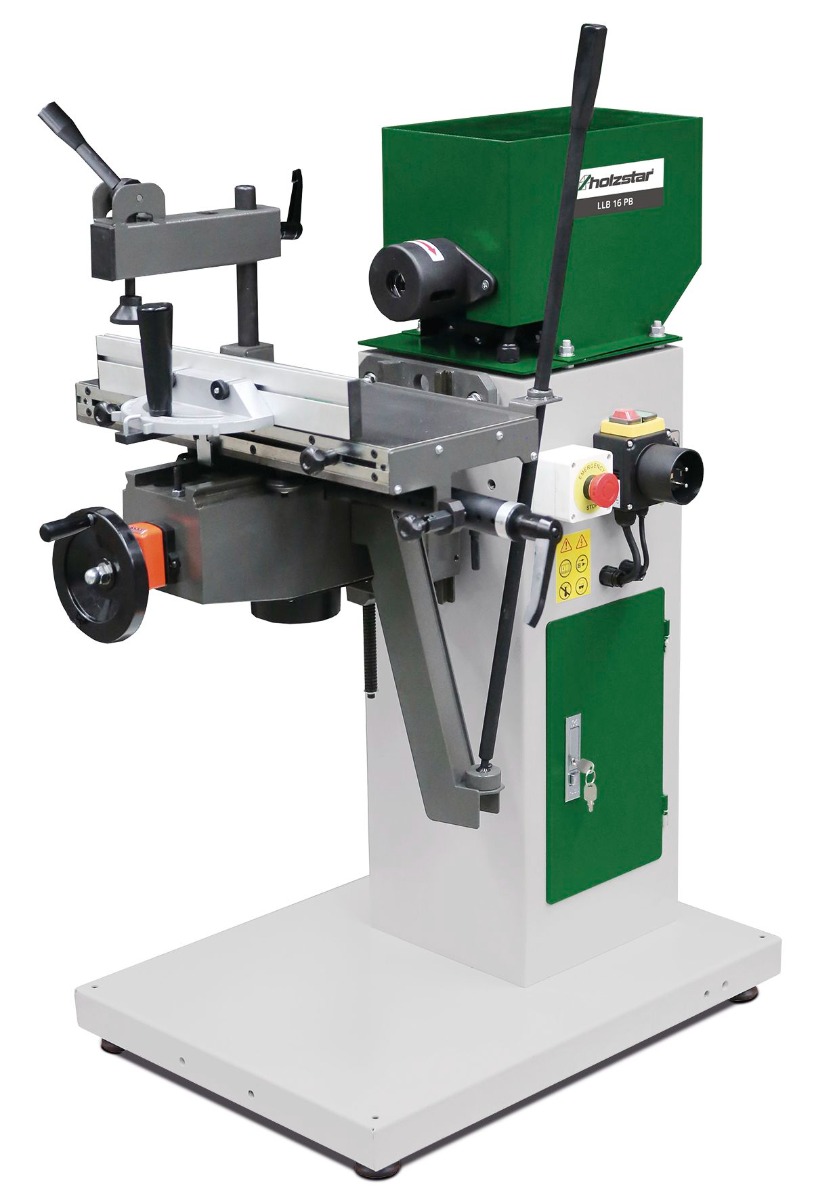

Holzstar 715906016 LLB16PB Long hole drilling machine 230V

Holzstar LLB16PB Long-hole drill 230V

Compact long-hole drill.

Description

• Space-saving model
• Drill head with double guide
• Drill head height adjustment with scale reading
• One-handed operation for fast and precise drilling
• Stable construction made of steel and cast iron
• Dowel device with grid layout for easy positioning of dowel holes
• Separate emergency stop
• European make
• Suitable for: Demanding woodworker

Technical data

• Voltage V 230
• Power kW 2.2
• Table dimensions mm 500 x 207
• Drilling width mm 300
• Drilling depth mm 140
• Height adjustment drill head mm 150
• Speed rpm 2850
• Diameter extraction nozzle mm 100
• Weight kg 108.00
• Dimensions (l x w x h) mm 905x710x1,230

Scope of delivery

• Dowel fixture
• Wescott bookop
• Eccentric Tensioner
