Holzstar 715945313 SFK 254/30-1300 Saw-Router Combo 230V

Holzstar 715945313 SFK 254/30-1300 Saw-Router Combo 230V

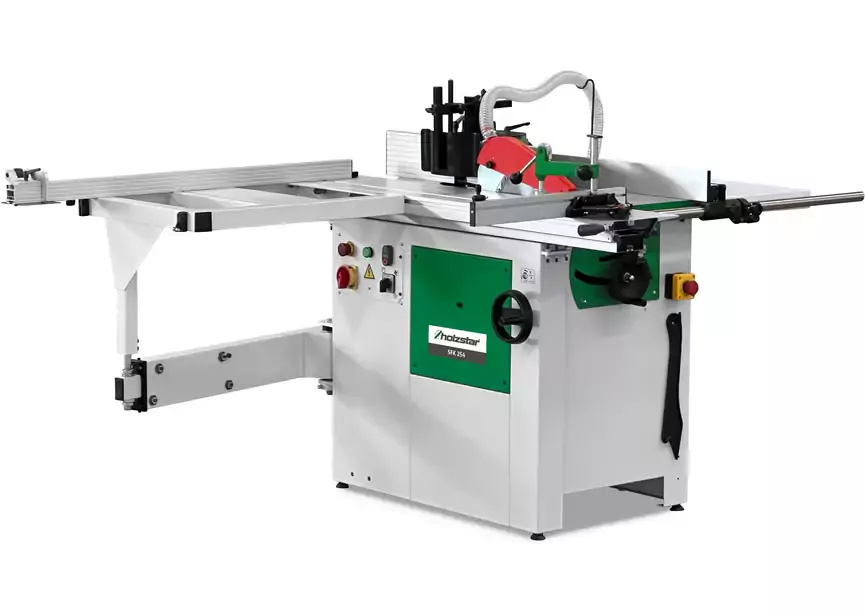

The Holzstar SFK 254/30-1300 is a high-quality saw-milling combination that excels in versatility and precision. Thanks to its swiveling saw blade and roller table system, this machine is the ideal tool for demanding tasks in furniture making and interior finishing. With a 2.2 kW motor and a compact design, this combination machine offers the perfect balance between power and space-saving for the professional workshop.

Special Features

• Stable round bar guide: The rip fence is equipped with a robust round bar guide for highly accurate and repeatable cuts
• Table extension: Equipped with an aluminum crosscut guide for effortless processing of panels and large workpieces, allowing you to easily handle even larger sheets
• Angle guide: Includes an integrated eccentric clamp for precise positioning of the workpiece, essential for safe and accurate repetitive work
• Precision roller table: Features a professional-grade sliding table made of anodized aluminum for smooth, friction-free operation, contributing to consistent cut quality

Technical Specifications

• Voltage: 230V
• Dimensions (L x W x H): 2200 x 1330 x 1300 mm
• Weight: 211 kg
• Power: 2.2 kW
• Cutting Length: 1300 mm
• Blade tilt: 90° to -45°
• Max. cutting height at 90°: 78 mm
• Max. cutting height at 45°: 63 mm
• Saw blade speed: 4000 min⁻¹
• Max. saw blade diameter: 254 mm
• Exhaust diameter: 30 mm
• Spindle diameter: 30 mm
• Useful spindle length: 105 mm
• Height adjustment: 110 mm
• Spindle speeds: 1400 / 4000 / 6000 / 9000 min⁻¹
• Maximum cutter diameter: 160 mm
• Exhaust diameter: 100 mm
• Carriage length: 1300 mm
• Carriage width: 238 mm
• Table length: 920 mm
• Table width: 810 mm

Scope of delivery

• 1x Complete SFK 254/30-1300 saw-milling combination
• 1x Swivel saw unit with saw blade
• 1x Parallel guide with round bar guide
• 1x Table extension with aluminum crosscut guide
• 1x Angle guide with eccentric clamp
• 1x Rolling table made of anodized aluminum
• 1x Router with four speed settings
