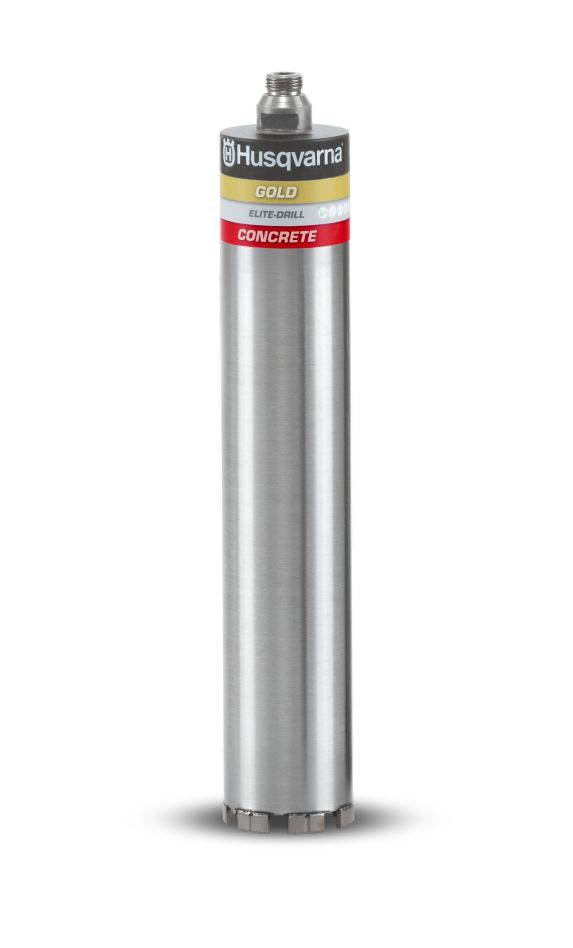

Husqvarna 535692201 ELITE-DRILL D10 TW Diamond drill bit segmented ⌀ 22 mm 2.3x1x350 1/2"

Husqvarna 535692201 ELITE-DRILL D10 TW Diamond bit segmented ⌀ 22 mm 2.3x1x350 1/2"

ELITE-DRILL™ D10 TW is part of our Gold Series and is the primary choice for the DM 540i drill motor, designed to cut at high speed without demanding too much of the payload while making the best use of the DM 540i's battery power. Suitable for hand-held wet applications on light reinforced concrete and occasionally on building blocks. Connector ½", available in diameters of 10-100 mm.

Special features

• Smooth and fast drilling speed - Designed for smooth and fast cutting in different types of concrete, including lightly reinforced concrete. Thin-walled segments and optimized diamond and bond specification facilitates manual drilling, reducing the need to press hard and achieving faster results.
• Self-centering for fast, accurate starts - The segment roof design ensures that the drill bit is centered upon application. This ensures fast, consistent drilling speed from the moment the new bit is used until it reaches the end of its life.
• More power and performance - Together with the DM 540i and this drill bit, you get up to 20% longer drilling length on one battery charge and 25% higher drilling speed.**) According to internal tests conducted against a competitor in a similar cordless core drill application in reinforced concrete.
• Wide range - Available in a wide range of diameters and lengths.

Technical Data.

• Performance level: Gold
• Type: Wet
• Number of segments: 1
• Diameter (metric): 22 mm
• Segment height (metric): 7.5 mm
• Mounting: Laser-welded
• Drilling attachment: 1/2"
• Power range, max kW (metric): 2 kW
• Power range, min kW (metric): 1.5 kW
• Drill length, mm (metric): 350 mm
• Segment width (metric): 2.3 mm
