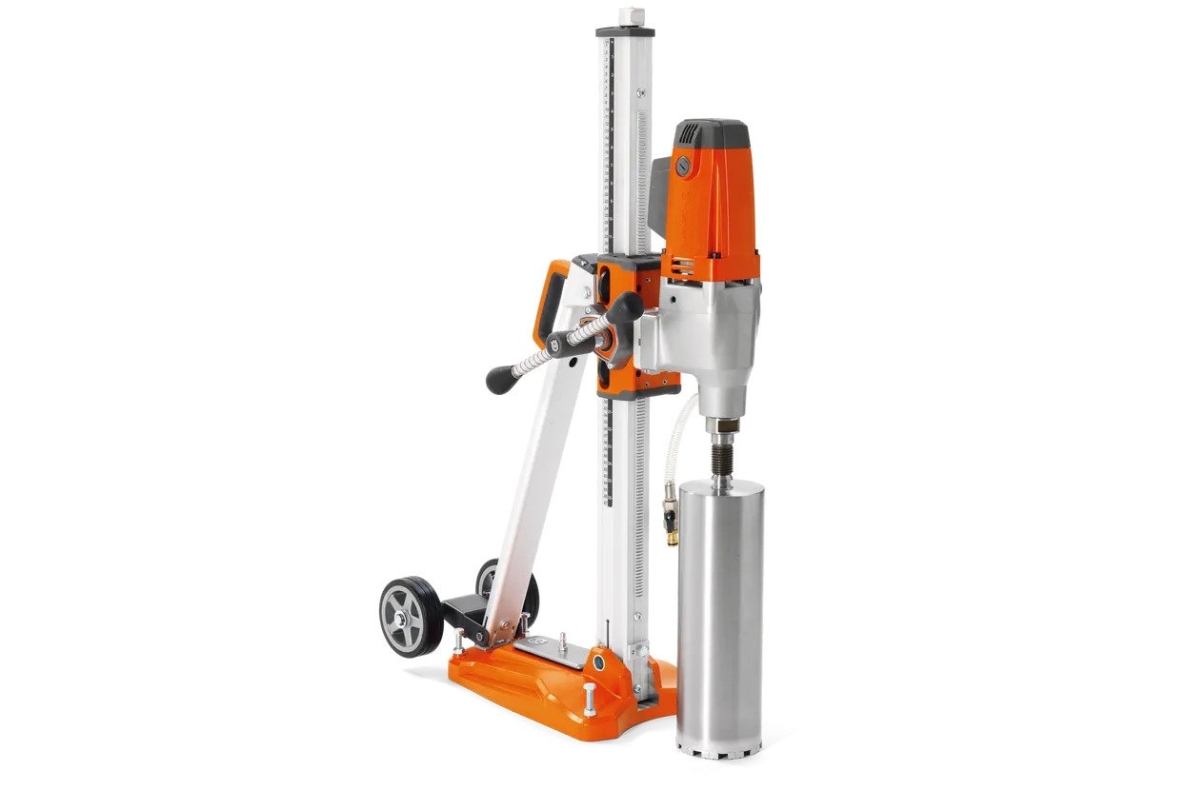

Husqvarna 965173603 DMS240 Diamond drilling machine with stand

Husqvarna 965173603 DMS240 Diamond Drill with Tripod

• The DMS 240 is a system consisting of an electric motor and tripod for a wide variety of core drilling applications.
• It is the most powerful system in our range of drill motor stands.
• An ideal system for medium-sized core drilling in walls, floors and roofs, up to a diameter of 250 mm.
• You can easily tilt the stand and thanks to the rear support you can drill reliably and stably at an angle.
• This saves you set-up time and your body is less stressed.
• This system can be used for drilling ventilation and plumbing ducts, waste disposal pipes, partitions and traffic signs.

Features

• Optimal feed rate
• User-friendly bottom plate
• Overload protection
• Easy transport
• Angle drilling
• Ducts, pipes and cables
• Spot drilling
• Water drainage

Technical data

• Frequency, Hz 50 Hz
• Voltage 220-240 V
• Phases 1 ph
• Drive With cord
• Max. drill diameter 250 mm
• Type Wet
• Number of gears 2
• UNC water connection G 1 / 4"
• Water pressure, max 8 bar
• Internal thread G 1/2"
• Thread, external 1 1/4" 7 UNC
• Angle movement 0-60º
• Weight 20,4 kg
• Product dimensions, length 545 mm
• Product dimensions, width 266 mm
• Product dimension, height 1,052 mm
• Sound pressure level (LWA) 107 dB(A)
• Sound level, measured 106 dB(A)
• Sound pressure level at operator's ear 90 dB(A)

Standard delivery

• In box
• Supplied without drill bits
