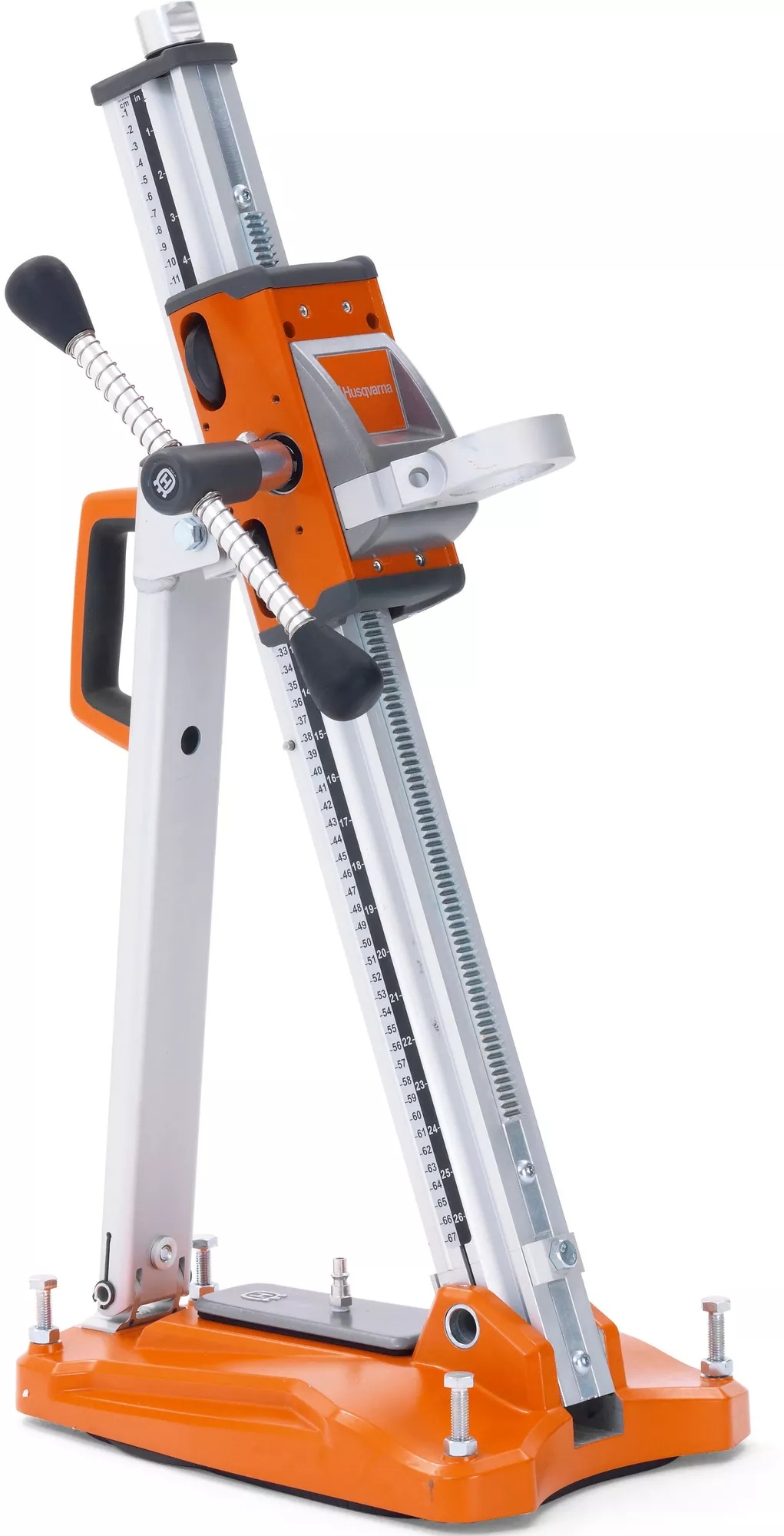

Husqvarna 966827201 DS 150 Diamond drill stand

Husqvarna 966827201 DS 150 Diamond drill stand

Special features

• This is our most versatile and lightest drill stand.
• The DS 150 is an ideal choice if you need a tripod for smaller jobs where you need to be able to set up a drill quickly, for example, in light core drilling applications with a maximum diameter of 150 mm.
• The base plate has an integrated vacuum base that is quick to set up and is more environmentally friendly.
• A practical handle makes it easy and comfortable to transport.
• Suitable for drilling holes in walls, floors and ceilings.
• Angle drilling: The unit can be adjusted for drilling at different angles.
• User-friendly base plate:
• Lightweight base plate made of aluminum with integrated vacuum base.
• That means fast set-up, without damage to the surroundings.
• Ducts, pipes and cables: Drilling ventilation ducts and holes for pipes and cables.
• Straight and precise drilling: The carriage has pressure rollers, which help to drill straight holes.
• Suitable for DM540i and DM230.

Technical data

• Angle movement 0-60º
• Product dimension, length 639 mm
• Product dimension, width 266 mm
• Product dimension, height 850 mm
• Product weight 15.5 kg
• Max. drill diameter 150 mm
• Max. drill length with recommended drill motor 497 mm
• Supplied without drill motor!
