Husqvarna 967855507 LG504 Vibration Plate Diesel Hatz EL 700 mm (550 + 2 x 75) 65 kN

Husqvarna 967855507 LG504 Vibratory Plate Diesel Hatz EL 700 mm (550 + 2 x 75) 65 kN

Special Features

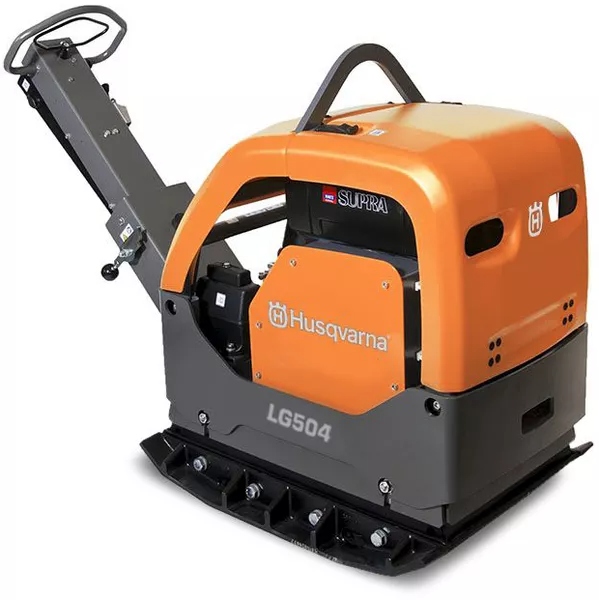

• The LG 504 is a powerful, reliable two-way vibratory plate for efficient compaction of deep or semi-deep, granular soil.
• The vibratory plate provides an effective alternative to/an effective complement to rollers when compacting in confined areas.
• It is equipped with a Hatz 1D81Z diesel engine and features an ergonomic, service-friendly design.

Advantages

• Durable plates: The plates are made of extremely durable and wear-resistant Hardox 400 steel. The special design prevents stones from getting stuck between the plate and the frame.
• Strong protection, easy transport: The robust steel frame protects the engine and transmission. The frame is also equipped with a lifting eye for easy transport.
• Easy operation: The forward/reverse lever and fixed handle provide easy operation on all surfaces. No need to continuously push/pull during operation.
• Low handle vibration level: Excellent engineering and high-quality components minimize vibration levels and stress, contributing to a safer, more productive and enjoyable workday.
• Know when you're done: The compaction indicator shows when the soil is optimally compacted and when you should start the next task. This saves you time and money.

Technical data

• Engine/engine model(new) Hatz 1D81Z
• Power (According to motor manufacturer's specification) 9.1 kW
• Type of fuel Diesel
• Starter Electric
• Exhaust emissions (CO2 EU V) 975 g/kWh
• Propulsion Diesel
• Centrifugal force, N 65 kN
• Speed 30 m/min
• Compaction indicator No
• Plate width (mm) 700 mm
• Product dimension, width 700 mm
• Weight 496 kg
• Packing length 1,200 mm
• Packing width 800 mm
• Packing height 1,480 mm
• Article gross weight 553,000 grams
• Sound pressure level (LWA) 109 dB(A)
• Sound pressure level at operator's ear 96 dB(A)

Scope of delivery

• Manual
