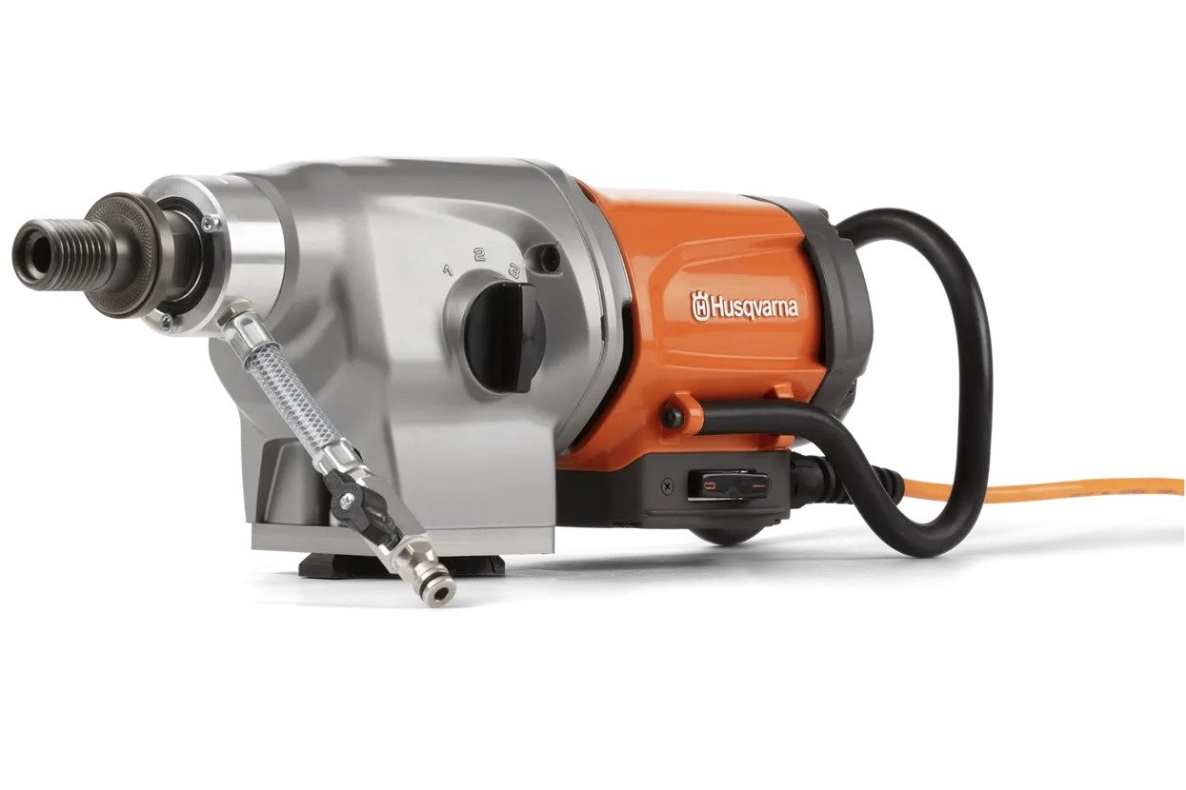

Husqvarna 967910301 DM400 Diamond drilling machine 350mm

Husqvarna 967910301 DM400 Diamond Drill 350mm

The DM 430 is a powerful and robust electric core drill for medium to heavy core drilling jobs when reliability and high productivity are required, especially with large diameter core drill bits. Recommended diameter 100-450 mm. Features heavy-duty aluminum motor housing, a handle for ergonomic use and additional drill motor shock protection. Equipped with Embedded Connectivity, an enhanced version of Husqvarna Fleet Services™ for data analysis and insights into machine condition. Suitable for water drainage, ventilation, perpendicular drilling, spot drilling and when you need to drill close to corners.

Features

• Robust and durable
• Ergonomic
• Optimized RPMs
• Embedded Connectivity
• Quick connection
• Quick connect ring
• Functional Design
• Reliable gearbox
• Easy lower speed start-up
• Helical drilling
• Horizontal drilling
• Spot drilling

Technical data

• Max. drilling diameter, manual 3.2 kW
• Frequency, Hz 50-60 Hz
• Voltage 220-240 V
• Phase 1 ph
• Drive With cord
• Max. drill bit diameter on stand, max 350 mm
• Max. drill bit diameter 55 mm
• Type Wet
• Number of gears 3
• Spindle speed unloaded gear 1 420 rpm
• Spindle speed unloaded gear 2 820 rpm
• Spindle speed unloaded gear 3 1250 rpm
• UNC water connection G 1 / 4"
• Water pressure, max 3 bar
• Thread, external 1 1/4" 7 UNC
• Product dimensions, length 546 mm
• Product dimension, width 138 mm
• Product dimension, height 185 mm
• Weight 14 kg
• Sound pressure level (LWA) 112 dB(A)
• Sound level, measured 110 dB(A)
• Sound pressure level at operator's ear 92 dB(A)

Standard accessories

• In box
