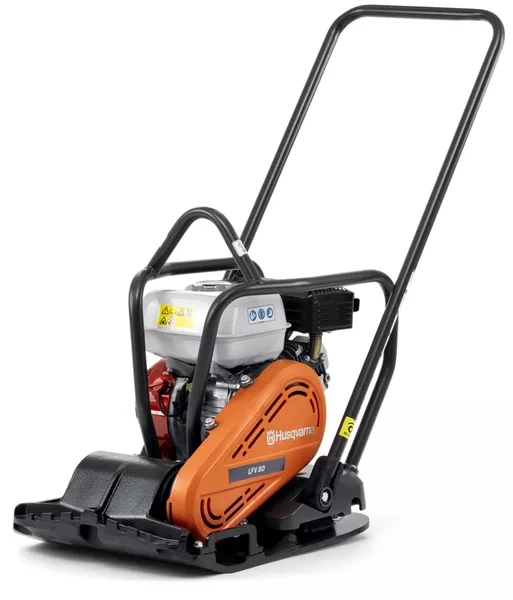

Husqvarna 970455501 LFV80 Vibration Plate Gasoline Honda 420 mm 19 kN

Husqvarna 970455501 LFV80 Vibratory Plate Gasoline Honda 420 mm 19 kN

Special Features

• The LFV 80 a fast-acting forward vibrating plate ideal for compacting granular soil of low to medium thickness.
• Optimized speed and power for fast and easy compaction with high productivity.

Advantages

• Durable design: For the right power and speed to get the job done
• Reliable: Easy to operate and requires little maintenance.
• Applications with asphalt possible: An optional water tank can be added for applications with asphalt.
• Easy handling: Thanks to the lifting height and the optional wheel set or additional fork lifts, transporting the vibratory plate is easy.

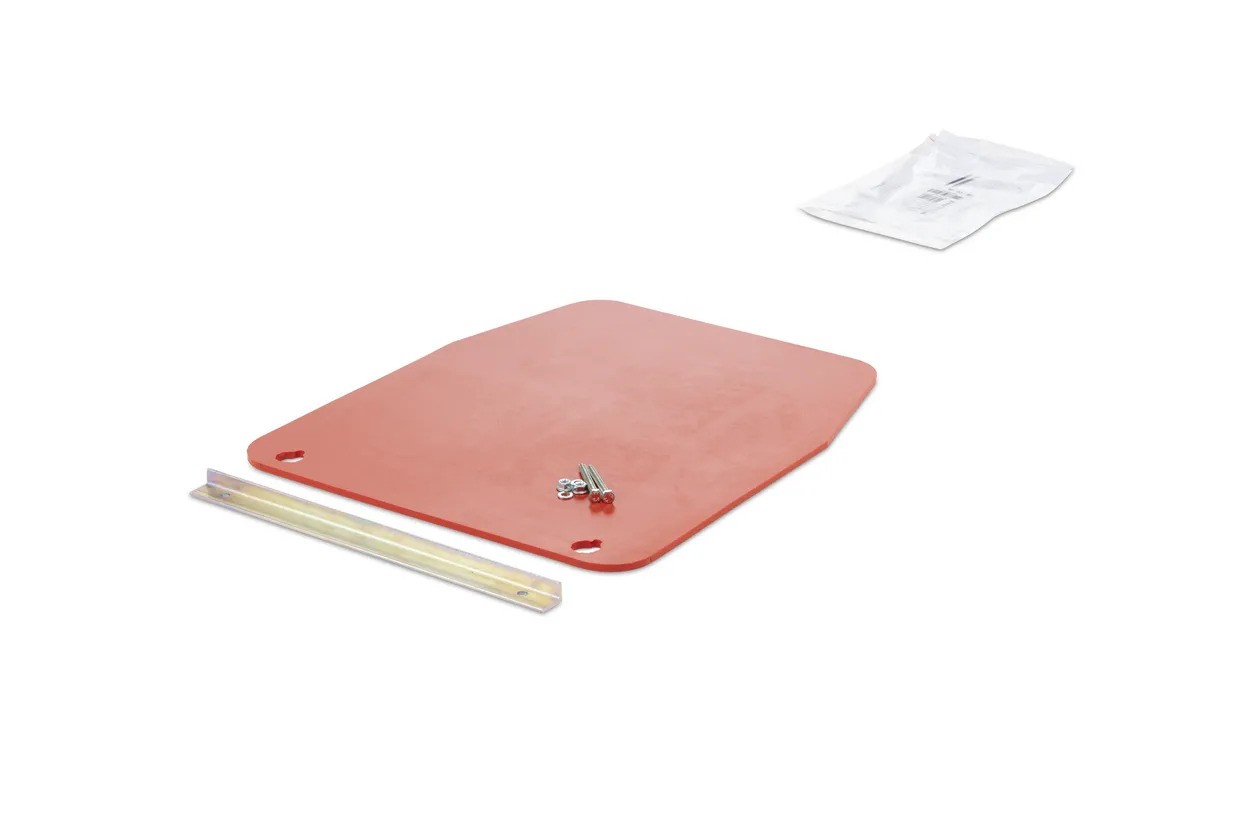

• Pavement Protection: The optional, easy-to-attach asphalt sealant protects the paving blocks from scratches and cracks.

Technical data

• Engine/engine model(new) GX160
• Power (According to motor manufacturer's specification) 3.6 kW
• Starter Recoil
• Exhaust emissions (CO2 EU V) 757 g/kWh
• Drive Petrol
• Compaction application Asphalt and soil
• Frequency, Hz 95 Hz
• Centrifugal force, N 19 kN
• Speed 33 m/min
• Dimensions Plate width (mm) 420 mm
• Product dimension, length 926 mm
• Product dimension, width 420 mm
• Product dimension, height 942 mm
• Weight 81 kg
• Packing length 620 mm
• Packing width 850 mm
• Packing height 840 mm
• Article gross weight 90,500g
• Sound pressure level (LWA) 105 dB(A)
• Sound pressure level at operator's ear 90 dB(A)
• Vibration on left handle 7 m/s²

Scope of delivery

• Manual
