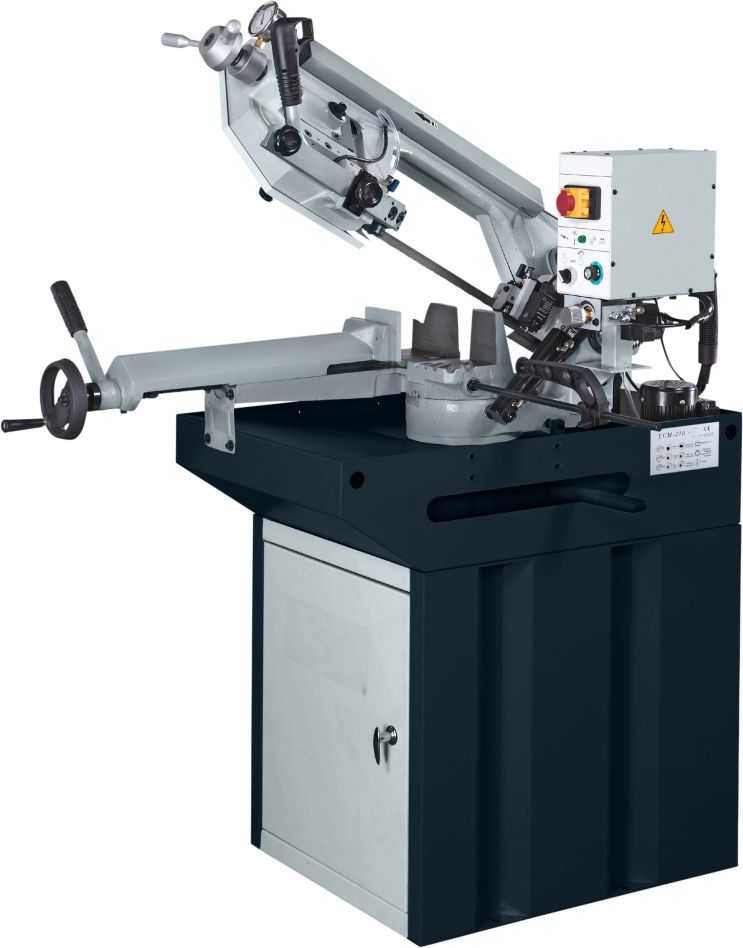

Huvema 16317 Bandsaw HU 210 AC-4
Features
- Sawing machine on frame, European design
- The machine is used professionally for smaller cuts
- Saw blade tension manually adjustable
- Clamp with quick release mechanism
- Heavy-duty saw arm eliminates vibration
- Machine equipped with 2-step motor, bearings for optimal saw blade guidance
- Sawing pressure adjustable by means of hydraulic cylinder
- Adjustable cutting pressure
- Automatic switch-off
- With cooling system
- Quick release clamp eccentric
- 2-speed motor
- Accurately adjustable running wheels
- With stopper
- Securing saw blade cover opening
- Bronze worm gear
- Gear Driven
- Now also available in a combination package: 88804
Specifications
- Saw blade dimensions: 2085 x 20 x 0.9mm
- Cutting capacity 45° straight: 110 x 90mm
- Cutting capacity 45° round: 110mm
- Cutting capacity 45° square: 90mm
- Cutting capacity 60° straight: 70 x 70mm
- Cutting capacity 60° round: 70mm
- Cutting capacity 60° square: 70mm
- Cutting capacity 90° straight: 200 x 150mm
- Cutting capacity 90° round: 185mm
- Cutting capacity 90° square: 180mm
- Cutting speed: 35-70m/min
- Packing dimensions: 1155 x 680 x 920mm
- Motor power: 0.75kW
- Net weight: 195kg
- Voltage: 400V
More Information
| EAN | 8718242080514 |
|---|---|
| Order Number | 16317 |
| Manufacturer | Huvema |
| Voltage (V) | 400 V |
