Jepson 609960D 9435 Dry Cutter metal mitre saw 355 mm roller conveyor 6 m with digital scale

Jepson 609960D 9435 Dry Cutter metal mitre saw 355 mm roller conveyor 6 m with digital scale

Machine for sawing pipes and profiles also in stainless steel (A2), steel, light metal, plastic, non-ferrous and composite materials. Comes complete with teo-, and outfeed roller conveyor with measuring system both 3 meters and digital stop.

Features

• 2 saw blade guides for a better cut and longer saw blade life
• Strong motor torque for continuous operation
• Patented quick-release device for precision mitre cuts of 0-45 degrees
• Equipped with 355 mm saw blade

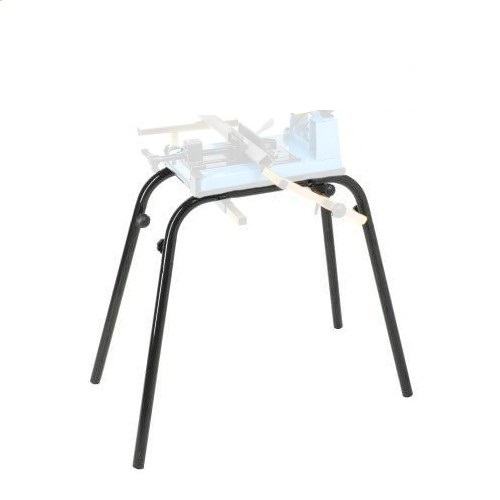

• Optional undercarriage available CE certified

Specifications 9435

• Motor power 2400 Watt
• Voltage 230 Volt
• No load speed 1,400 rpm
• Net weight 25 kg
• Saw blade 355 mm
• Max. cutting range pipe 90° 140 mm (stainless steel 125 mm)
• Max. cutting range pipe 45° 102 mm
• Max. cutting range square box 90° 125 x125 mm
• Max. cutting range square box 45° 80 x 80 mm

Specifications roller conveyor system

• Capacity per metre of conveyor 100 kg
• Conveyor belt adjustable in height 760-1100 mm
• Tyre width 390 mm
• Roller width 300 mm
• Roller divisie 290 mm

Scope of delivery

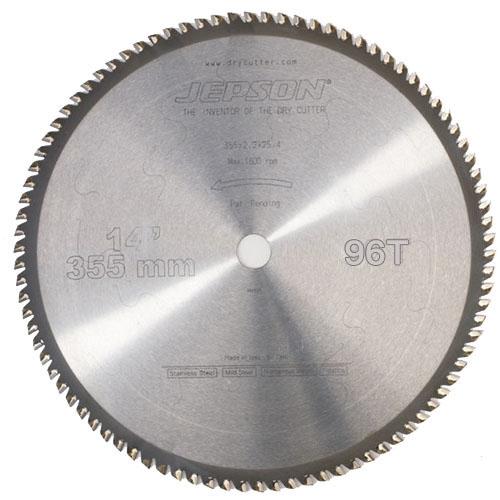

• HM saw blade 355 mm
• 3 mtr. feed roller conveyor and measuring track for plastic, alu and steel profiles
• 3 m conveyor belt for plastic, alu and steel profiles
• Digital assessment
• Manual
