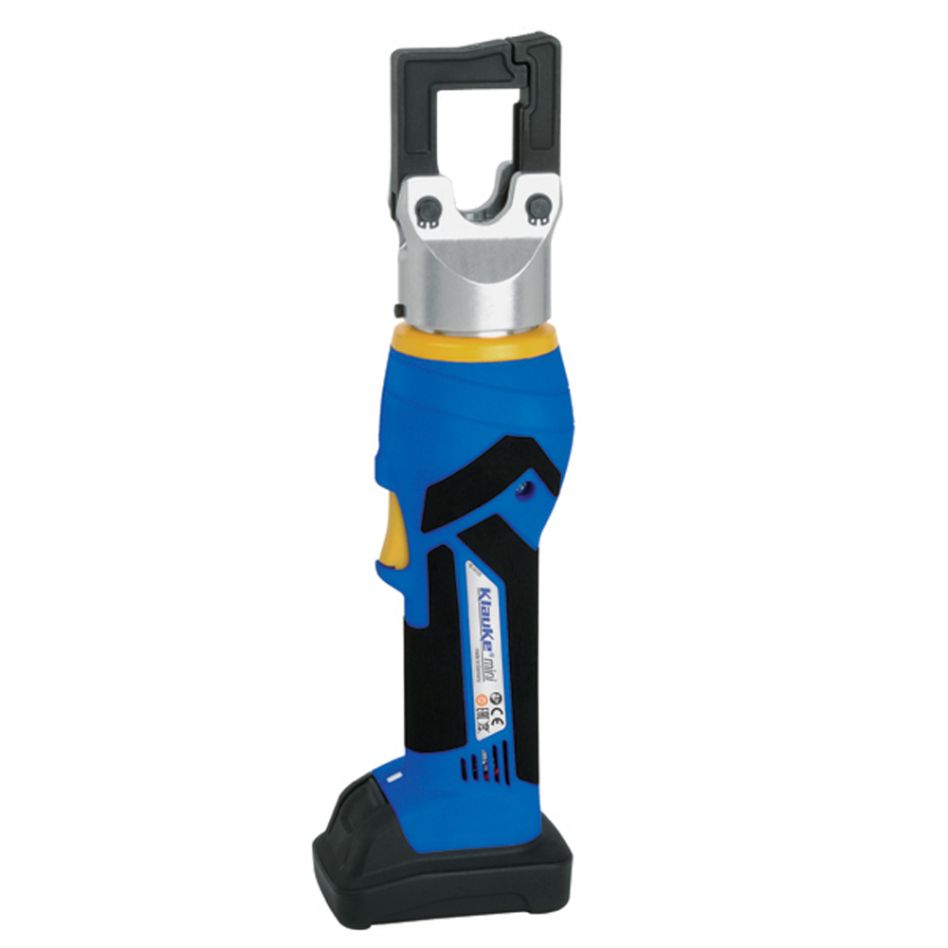

Klauke 900088803 EK35/4ML Accu-hydraulic crimping pliers 6 - 150 mm² 10.8 Volt 2.5 AH Li-ion

Klauke 900087961 EK35/4ML Accu-hydraulic crimping pliers 6 - 150 mm² 10.8 Volt 2.5 AH Li-ion

Special features

• Large cross-section range up to 150 mm²
• Slim shrink head - ideal when space is limited
• Powerful 10.8 V Li-Ion battery technology with battery charge indicator
• Closed head, flip-top style, rotatable
• Simple and safe: one-button control concept for operating all tool functions
• Comfortable and safe one-handed operation thanks to 2-component plastic housing with soft lining
• Effortless operation thanks to low weight
• Automatic withdrawal when the operation is complete
• Maintenance display via LED

Compatible

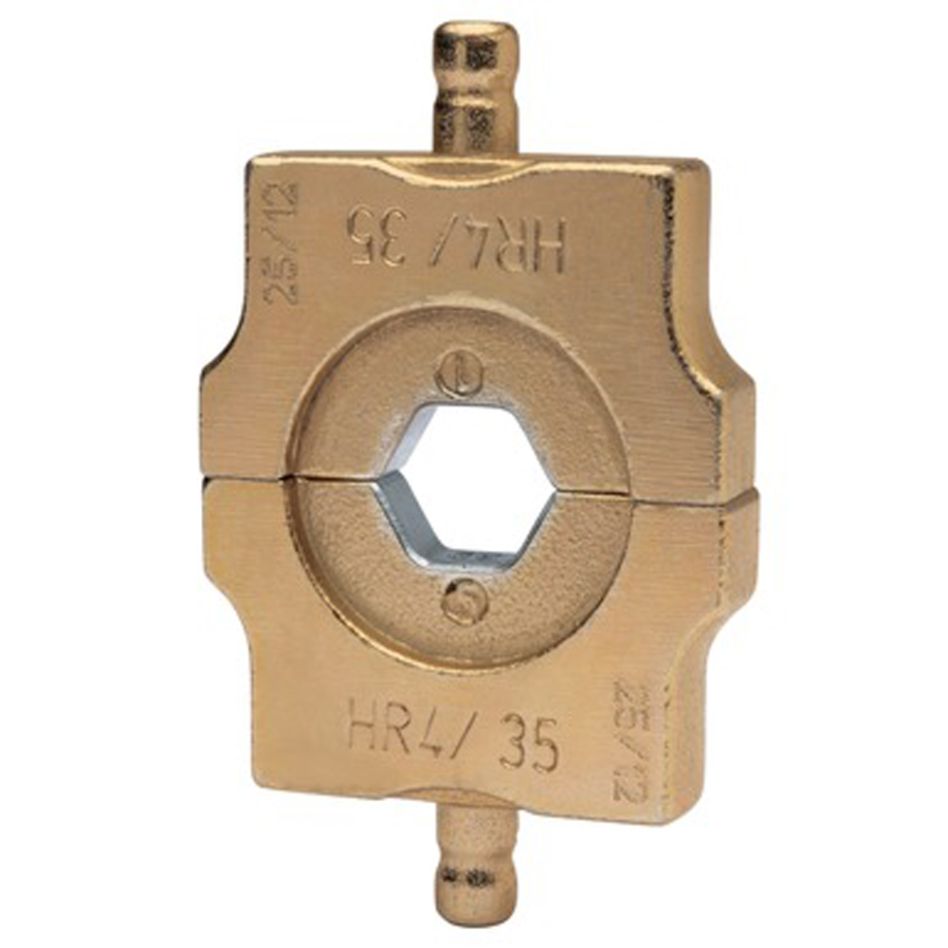

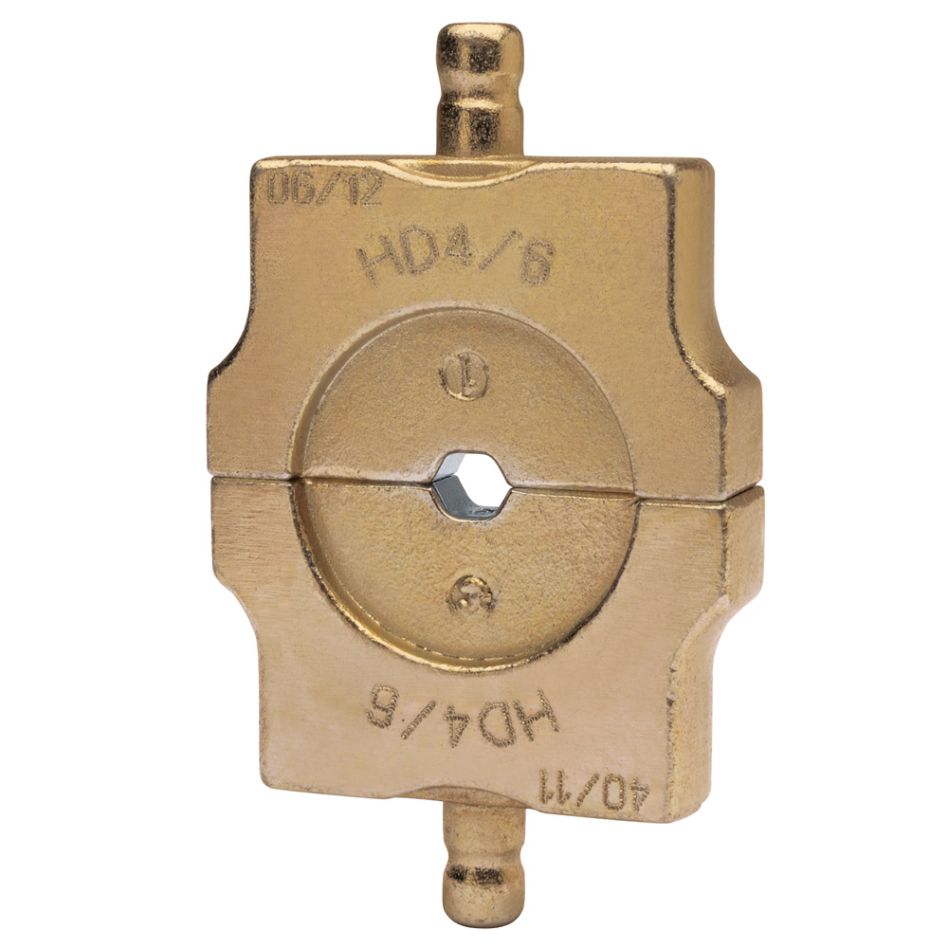

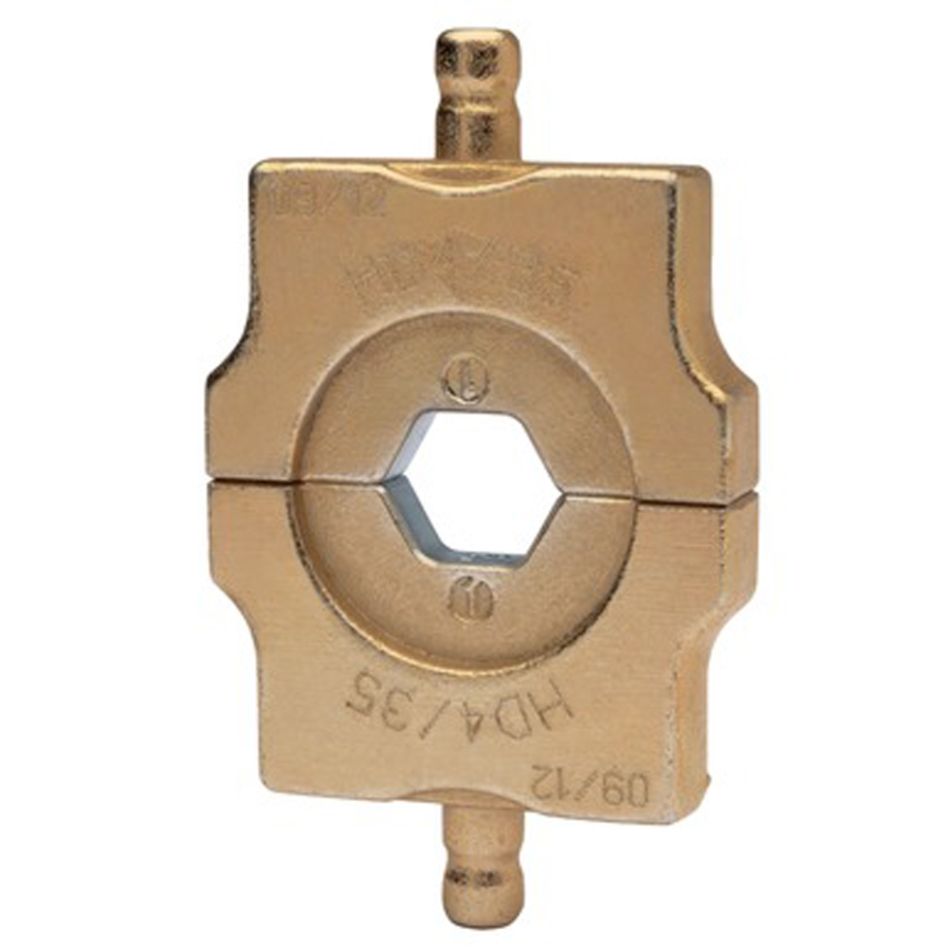

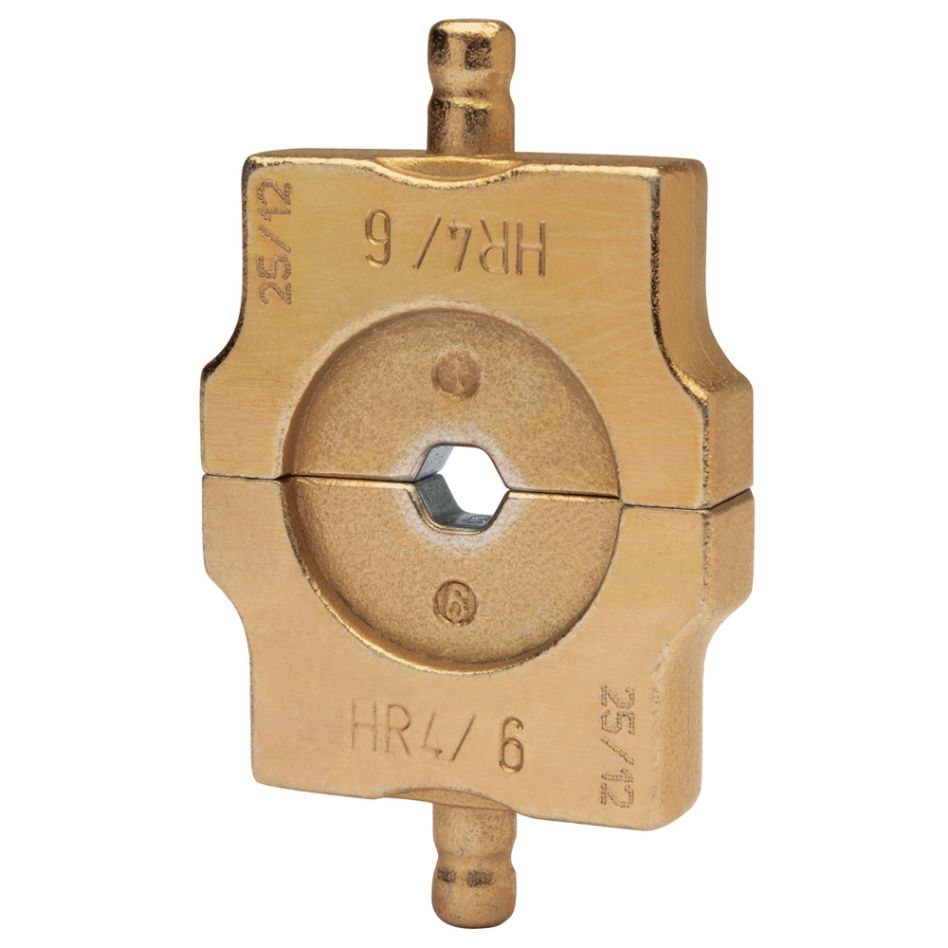

• 4 series interchangeable crimp dies, narrow crimp

Technical data

• Shrinkage35 kN
• Stroke/opening width9mm
• Shrink range6 - 150mm²
• Shrink cycle3 s to 4 s (depending on the shrinkage cross-section)
• Number of foldsapprox. 200 by 120 mm² Cu
• Battery voltage10.8 volts
• Battery capacity2.5 Ah, Li-ion
• Battery charging timeapprox. 45 min.
• Weight including battery1.6 kg
• Ambient temperature-10 °C to +40 °C

Scope of delivery

• 1 x KKEK50ML Case
• 1 x LGML1 Charger for 10.8 V Li-Ion batteries, 230V
• 1 x RAML1225 Battery 10.8 V / 2.5 Ah, Li-Ion (27 Wh)
