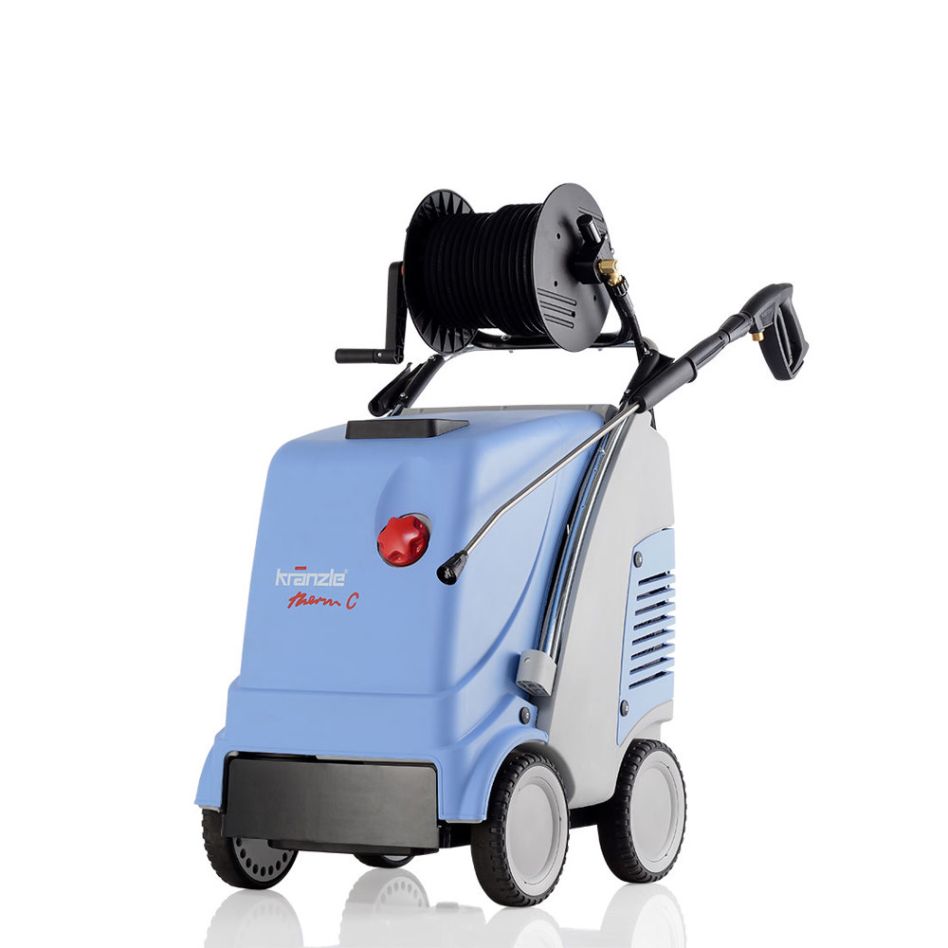

Kränzle 62836.0 Therm C15/150 Hot water High-Pressure cleaner with reel

Kränzle 628360 Therm C15/150 Hot water High-Pressure cleaner with reel

Through the intelligent design concept Kränzle has succeeded in combining the engine and the APG pump group, the safety valves, of a high-performance entry-level high-pressure cleaner, as well as the same combustion chamber from the large Therm series and a very large fuel tank, into an incredibly compact format. This creates a very handy, user friendly and efficient device, which requires little storage space.

The new Kränzle therm CA was developed for professional and less intensive use. Wherever persistent dirt and stains need to be removed, the therm C ensures that they are removed thoroughly and without problems. This is due to its strong points: sufficient working pressure, sufficient flow rate and very high water temperature, which are also infinitely adjustable. The C models are, with respect to the CA models, equipped with a flame control system, safety thermostat, fourfold safety system with overload protection and burner stop for insufficient fuel oil.

Features

• Integrated chassis
• 7.5 m electrical cable Cable winding
• 15 m steel reinforced high pressure hose on reel
• Total stop system
• Temperature continuously adjustable
• Electronic thermostat with a fairly constant temperature
• Stepless pressure control
• Flame monitoring system
• Quadruple safety system with overload protection
• Stop for burner shower insufficient fuel oil
• Built-in safety thermostat
• Ventilation of combustion chamber
• 25 l fuel tank
• Messing pompkop
• Dry run protection
• Ceramic plungers
• Pistol with switch-off safety
• INOX high-pressure lance
• Case for gun, lance and rotary cutter
• Detergent intake with filter
• Quick-change device D12

Specifications

• Bedrijfsdruk 30- 150 Bar
• Max. toegelaten druk 170 Bar
• Throughput 15 l/min (660 l/h)
• Hot water temperature 12-80 °C
• Damptemperature 140 C
• Heating power 65 kW
• Fuel tank 25 ltr
• Speed 1400 rpm
• Electrical connection 400 Volt 8,7A 50Hz
• Power consumption 4.8 kW
• Vermogensafgifte 3,8 kW
• Weight 179 kg
• Dimensions LxWxH 790x590x980

Includes

• Totalstop system (built-in)
• Safety switch (built-in)
• Flow monitoring (built-in)
• Preventative combustion chamber (built-in)
• Detergent aspiration (built-in)
• 15 mtr. Steel reinforced HD hose on reel
• Gun with flat radius
• Parkeerem
• Water inlet filter
