Kränzle 63821.2 Therm-RP 1000 Hot water high pressure washer + winder plug nipple D12 16A

Kränzle 63821.2 Therm-RP 1000 Hot water high-pressure cleaner with winder plug nipple D12

The Kränzle Therm-RP 1000 is a professional hot water high-pressure cleaner of the latest generation, designed for continuous use in the toughest conditions . This model (order no. 63821.2) is distinguished by the integrated hose reel and the D12 quick-change system . With an impressive water flow rate of 1000 liters per hour (16.6 l/min) and stepless working pressure up to 200 bar, this is the ultimate machine for sectors such as agriculture, contracting, industry and construction.

Special features.

• High-quality Kränzle crank pump: The heart of the machine is a robust, slow-running crank pump with a pump head made of brass and ceramic pistons. This guarantees an extremely long service life, smooth running and maximum efficiency, even in continuous operation
• D12 quick-change system: equipped as standard with the professional D12 quick-change system (plug-in nipple) for fast, tool-free and safe changing of lances and accessories
• Integrated hose reel: For a tidy workplace and optimum ease of use. The 20 meter hose can be easily pulled out and rolls up automatically and controlled
• Efficient hot water and steam cleaning: The water temperature is infinitely adjustable from 12°C to 80°C. An integrated steam mode (max. 140°C) is available for stubborn dirt
• Digital control panel: With integrated operating hours counter and optical flame monitoring for optimal control
• Total-Stop system with delayed motor shutdown: The motor runs only when the lever is pressed. After release, the motor switches off delayed, which relieves the pump and saves energy
• Safety shutdown and overheating protection: For safe and reliable operation
• Preflushing of the combustion chamber: Increases comfort and safety at start-up

Technical data

• Working pressure (stepless): 30 - 200 bar
• Max. allowable overpressure: 220 bar
• Water flow rate: 16.6 l/min (1000 l/h)
• Hot water temperature: 12 - 80 °C (stepless)
• Steam mode: max. 140 °C
• Connected load: 7.5 kW
• Output power: 5.5 kW
• Connection: 400V / 3-phase / 50Hz
• Connection current: 12.5 A
• Connecting cable: 7.5 m (CEE 16A plug)
• Motor speed: 1400 rpm
• Heating power: 65 kW
• Fuel tank: 35 liters (diesel)
• Water tank: 12 liters (built-in)
• Quick-change system: D12 nipple
• Nozzle size: 05
• Dimensions (LxWxH): approx. 1050 x 800 x 1300 mm (with reel)
• Weight: approx. 218 kg

Scope of delivery

• Kränzle Therm-RP 1000 basic unit with integrated reel, D12 system, 7.5 m connection cable, digital thermostat and operating hour meter

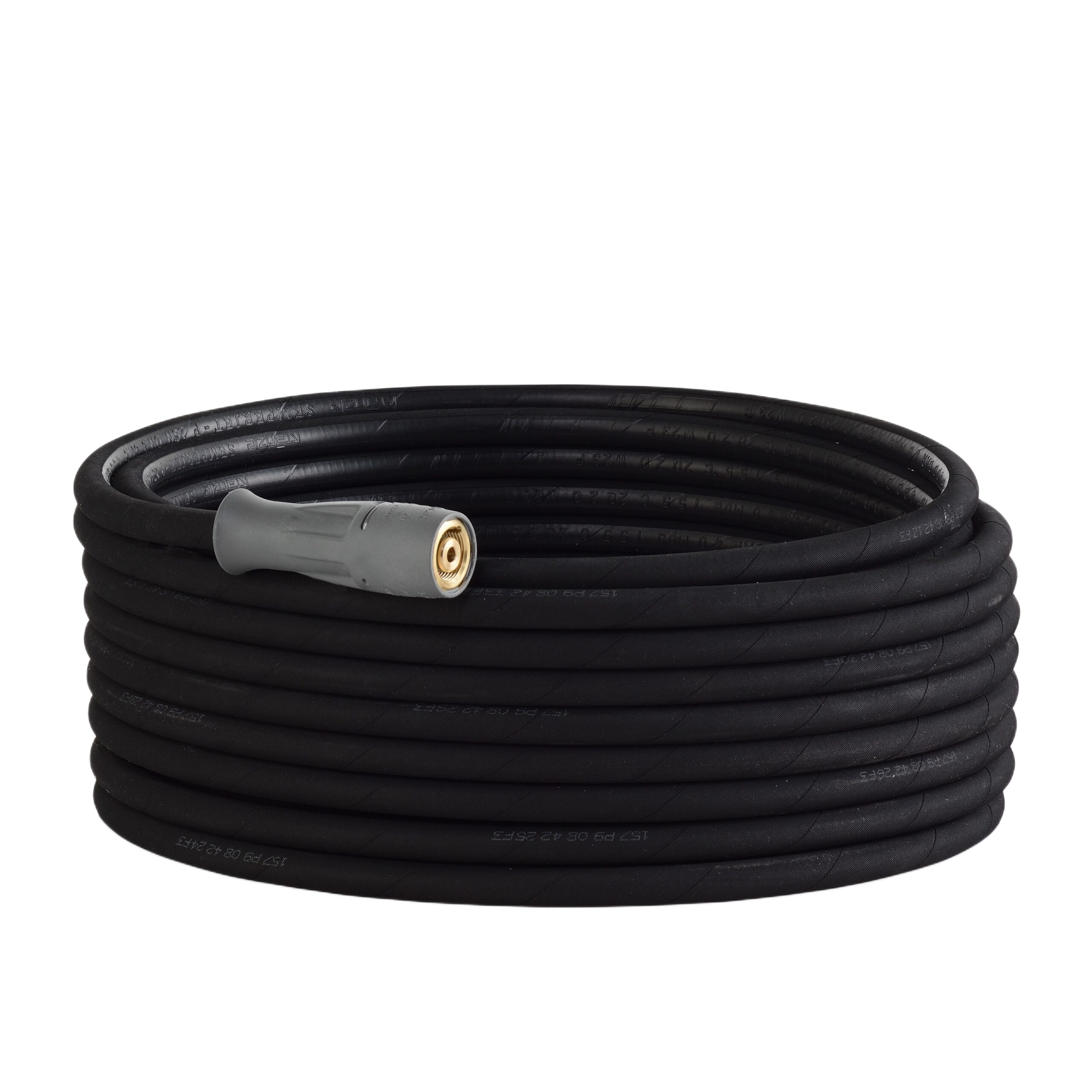

• High-pressure hose: 20 m (DN8) with steel braiding, mounted on the reel
• Spray gun: Starlet 3 (model 12500), with D12 quick connection

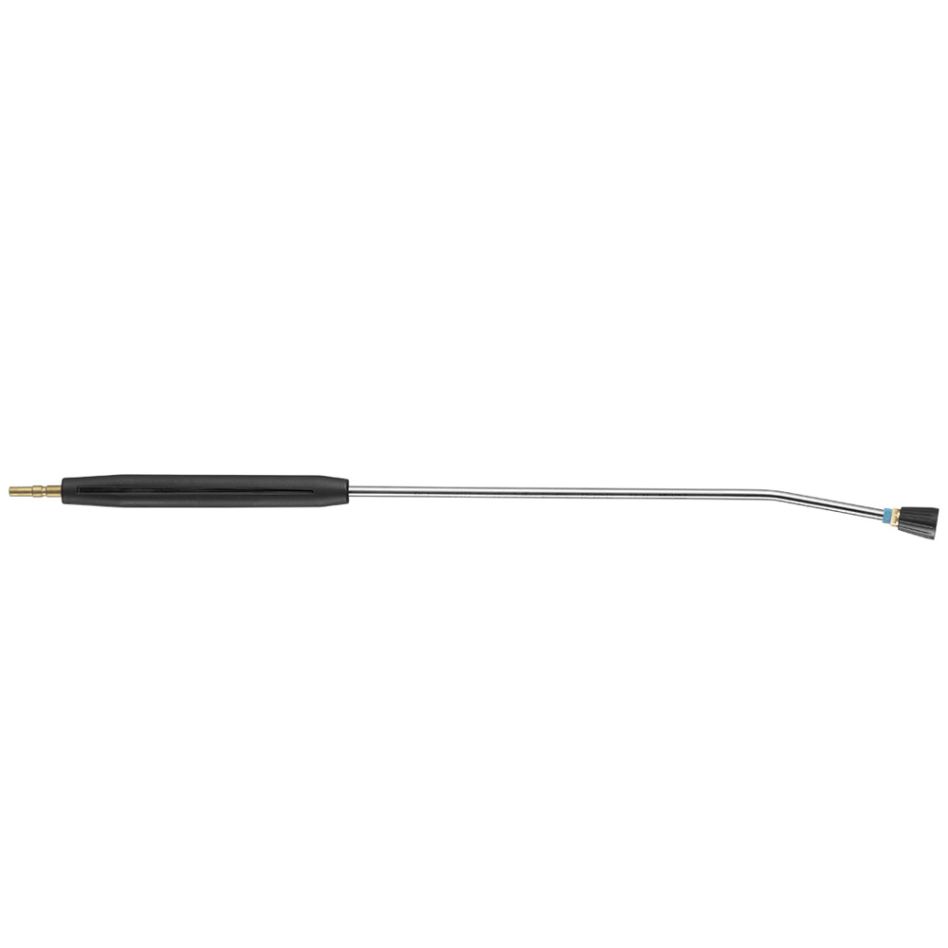

• Lance: 1000 mm stainless steel lance with fixed flat jet nozzle D2505 (25°, size 05) and D12 plug nipple (ref. 12420-D2505)
• Water filter: Inlet filter with screw fittings 3/4" (ref. 13310)
