Laserliner 052.555A DuraPlane G360 RX Horizontal 360 degree green line laser with RangeXtender G60 receiver, CrossGrip clamp, tripod 175cm and levelling rod 3m

Laserliner 052.555A DuraPlane G360 RX Horizontal 360 degree green line laser with RangeXtender G60 receiver, CrossGrip clamp, tripod 175cm and levelling rod 3m

Features

• Robust horizontal 360 degree green line laser with Anti-Drift System
• The horizontal laser line generates an extremely bright, closed 360° laser circle with 2 brightness settings
• Optimised for work close to the ceiling
• 3.5° self-levelling range, accuracy 0.2 mm / m
• Additional tilt function for oblique alignment
• The laser can be used standalone or in conjunction with the CrossGrip Snap; magnetic clamp and wall mount, both horizontally and vertically. With adjustable clamping range
• Ideal for mounting on drywall profiles
• Long operating time thanks to lithium-ion battery
• Mains charger for continuous operation
• GRX-Ready: in conjunction with the optional laser receiver, laser lines can be recognised with the integrated receiver mode at long distances and in unfavourable lighting conditions
• Green laser technology with 0°C...50°C temperature range

Technical data

• Self-levelling range: ± 3.5° (Horizontal)
• Accuracy: ± 0.2 Mm / M
• Leveling: Horizontal automatic
• Visibility(Typical): 60 m
• Lux: At max. 300 lux
• Operating range with manual receiver (depending on brightness differences for technical reasons): 60 m
• Laser wavelength: 515 Nm
• Laser class: 2 /< 1 Mw (En 60825-1:2014/Ac:2017)
• Power supply: Li-Ion battery 7,4V / 2,6Ah Mains adapter 12V/DC / 2000Mah
• Operating time: Approx. 10 hours
• Working conditions: 0°C ... 50°C Humidity: Max. 80% Rh, Non-condensing, Working height Max. 4000 M Above Nap (New Amsterdam level)
• Storage Conditions: -10°C ... 70°C, Humidity Max. 80% Rh
• Dimensions (W x H x D): 125 mm x 145 mm x 120 mm
• Weight: 812 g (Incl. Battery Pack / Without Accessories)
• 5/8" tripod connection

Scope of delivery

• Crossgrip snap clamp
• 2 x li-ion accu pack met extern laadstation
• Mains/charging station

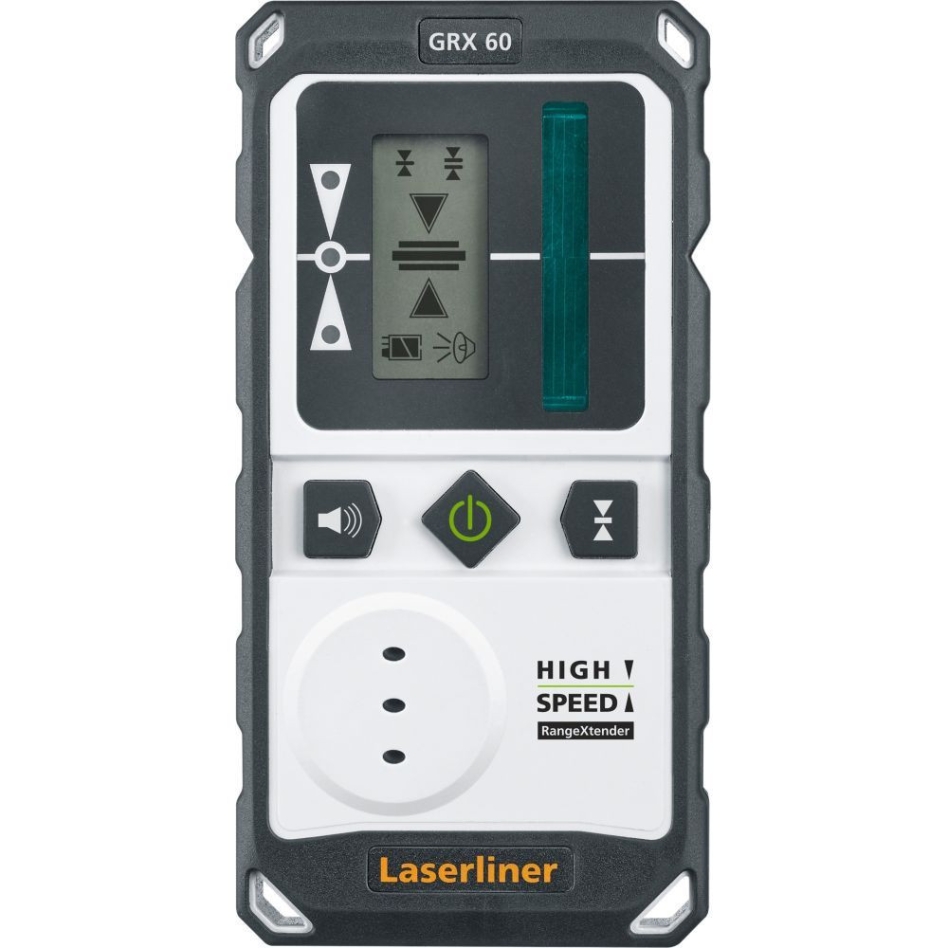

• RangeXtender G60 receiver

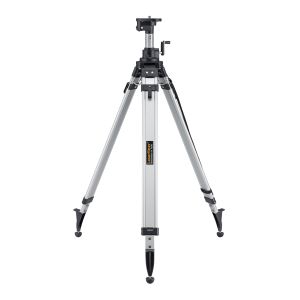

• Compact stand 175 cm
• 5/8" screw adapter
• Telescopic levelling rod 3 m,
• Suitcase
