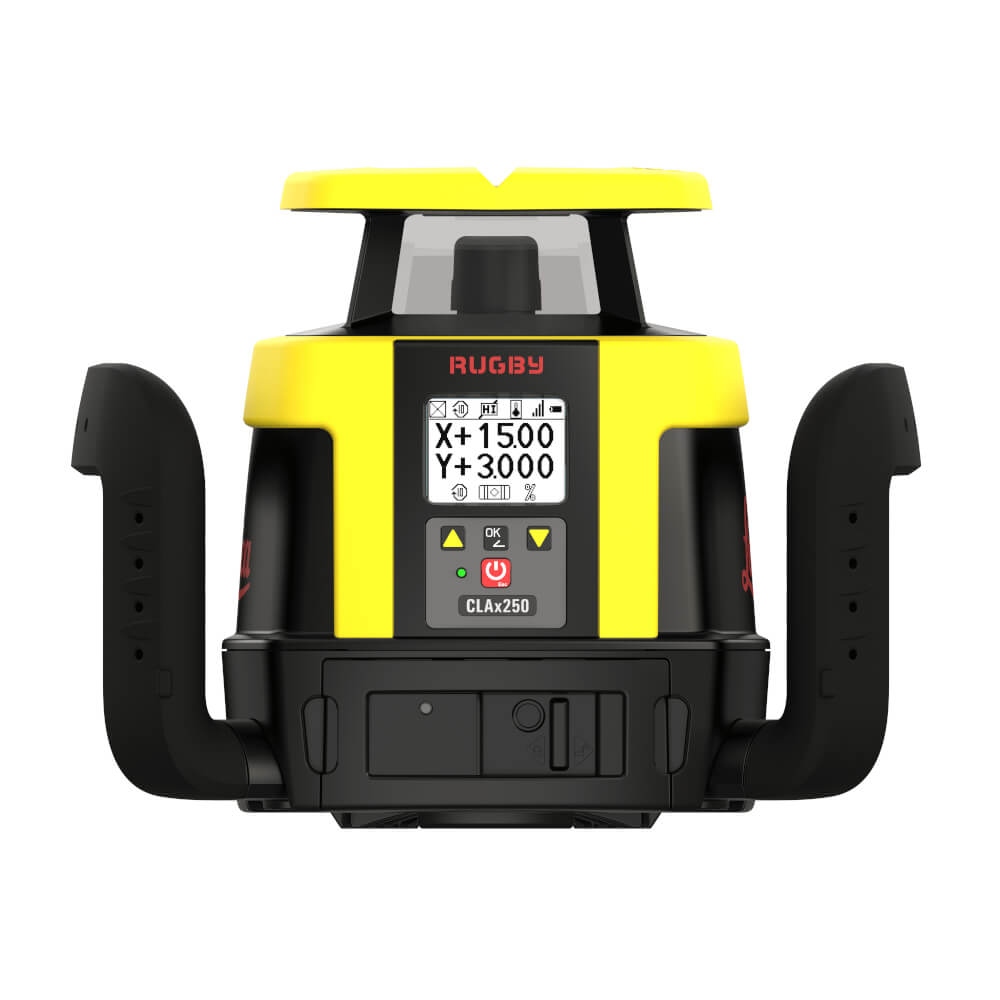

Leica 6018539 Rugby CLAx250 Self-levelling Battery Rotation Laser Horizontal 1x battery and charger in case

Leica 6018539 Rugby CLAx250 Self-levelling Battery rotation laser horizontal 1x battery and charger in case

Special features

• Self-levelling in horizontal position with electronic inclination sensors and servo motors
• Manual slope function for projecting slopes up to 8% in both axes (value does not appear on display)
• Slope Catch enables matching to existing slope values
• Slope Lock monitors the slope position to maintain the set value
• Beam Masking allows the laser beam to be turned off (½ or ¾) in selected areas
• Instrument height alarm ensures consistent accuracy by monitoring beam position
• Display of the distance of the laser beam from the center of the Combo receiver in mm or cm
• Temperature stability control monitors operation during temperature fluctuations
• Semi-automatic calibration with digital measurement via the Combo receiver for adjusting each axis
• Equipped with 5/8" thread, suitable for all common construction stands

Technical data

• Accuracy: ± 0.5 mm / 10 m
• Measuring range: up to 1350 m (diameter)
• Levelling range: ± 6° (± 10%)
• Laser class: 2 (635 nm)
• Power supply: Li-Ion battery pack
• Protection class: IP68
• Operating temperature: -20 °C to +50 °C
• Weight: 3.8 kg

Scope of delivery

• 1x rotation laser
• 1x CLC Combo receiver remote control with holder
• 1x Li-Ion battery and charger
• 1x Transport case
• 1x PROTECT card from Leica Geosystems
• 1x User Manual and Safety Instructions
• 1x Quick Start Guide
